This is a Dense Vector2d Field. This container statisfies the BidirectionnalContainer concepts of the STL. It is also an 2d extension of the RandomAccessContainer concept. That is to say the bracket element access is replaced by the double bracket element access. It is a specialization of GenericMultiComponent2d using Vector2d blocks. It implements arithmetic and mathematical operators and read/write methods (tecplot and gnuplot file format...). Contrary to slip::RegularVector2dField2d, this container is not associated with a grid. More...

#include <DenseVector2dField2d.hpp>

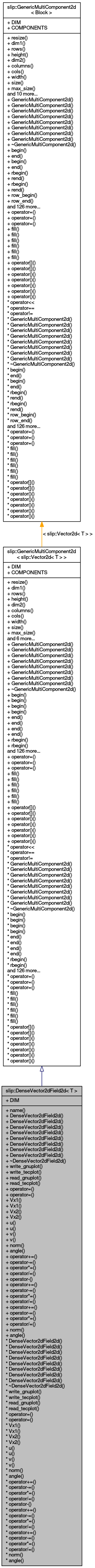

Inheritance diagram for slip::DenseVector2dField2d< T >:

Public Types
typedef slip::Vector2d< T >	value_type

typedef DenseVector2dField2d< T >	self

typedef const DenseVector2dField2d< T >	const_self

typedef GenericMultiComponent2d < slip::Vector2d< T > >	base

typedef value_type *	pointer

typedef const value_type *	const_pointer

typedef value_type &	reference

typedef const value_type &	const_reference

typedef ptrdiff_t	difference_type

typedef std::size_t	size_type

typedef pointer	iterator

typedef const_pointer	const_iterator

typedef std::reverse_iterator < iterator >	reverse_iterator

typedef std::reverse_iterator < const_iterator >	const_reverse_iterator

typedef pointer	row_iterator

typedef const_pointer	const_row_iterator

typedef slip::stride_iterator < pointer >	col_iterator

typedef slip::stride_iterator < const_pointer >	const_col_iterator

typedef std::reverse_iterator < iterator >	reverse_row_iterator

typedef std::reverse_iterator < const_iterator >	const_reverse_row_iterator

typedef std::reverse_iterator < col_iterator >	reverse_col_iterator

typedef std::reverse_iterator < const_col_iterator >	const_reverse_col_iterator

typedef slip::GenericMultiComponent2d < slip::Vector2d< T > >::iterator2d	iterator2d

typedef slip::GenericMultiComponent2d < slip::Vector2d< T > >::const_iterator2d	const_iterator2d

typedef T	vector2d_value_type

typedef vector2d_value_type *	vector2d_pointer

typedef const vector2d_value_type *	const_vector2d_pointer

typedef vector2d_value_type &	vector2d_reference

typedef const vector2d_value_type	const_vector2d_reference

typedef slip::kstride_iterator < vector2d_pointer, 2 >	vector2d_iterator

typedef slip::kstride_iterator < const_vector2d_pointer, 2 >	const_vector2d_iterator

typedef slip::lin_alg_traits < value_type >::value_type	norm_type

typedef slip::stride_iterator < pointer >	row_range_iterator

typedef slip::stride_iterator < const_pointer >	const_row_range_iterator

typedef slip::stride_iterator < col_iterator >	col_range_iterator

typedef slip::stride_iterator < const_col_iterator >	const_col_range_iterator

typedef slip::Matrix < slip::Vector2d< T > >::iterator2d_range	iterator2d_range

typedef slip::Matrix < slip::Vector2d< T > >::const_iterator2d_range	const_iterator2d_range

typedef slip::Vector2d< T > ::value_type	block_value_type

typedef block_value_type *	block_pointer

typedef const block_value_type *	const_block_pointer

typedef block_value_type &	block_reference

typedef const block_value_type	const_block_reference

typedef slip::kstride_iterator < typename slip::Vector2d< T > ::pointer, slip::Vector2d< T > ::SIZE >	component_iterator

typedef slip::kstride_iterator < typename slip::Vector2d< T > ::const_pointer, slip::Vector2d< T >::SIZE >	const_component_iterator

typedef std::reverse_iterator < iterator2d >	reverse_iterator2d

typedef std::reverse_iterator < const_iterator2d >	const_reverse_iterator2d

typedef std::reverse_iterator < row_range_iterator >	reverse_row_range_iterator

typedef std::reverse_iterator < const_row_range_iterator >	const_reverse_row_range_iterator

typedef std::reverse_iterator < col_range_iterator >	reverse_col_range_iterator

typedef std::reverse_iterator < const_col_range_iterator >	const_reverse_col_range_iterator

typedef std::reverse_iterator < iterator2d_range >	reverse_iterator2d_range

typedef std::reverse_iterator < const_iterator2d_range >	const_reverse_iterator2d_range

typedef std::reverse_iterator < component_iterator >	reverse_component_iterator

typedef std::reverse_iterator < const_component_iterator >	const_reverse_component_iterator

typedef component_iterator	component_row_iterator

typedef const_component_iterator	const_component_row_iterator

typedef slip::stride_iterator < block_pointer >	component_row_range_iterator

typedef slip::stride_iterator < const_block_pointer >	const_component_row_range_iterator

typedef std::reverse_iterator < component_row_iterator >	reverse_component_row_iterator

typedef std::reverse_iterator < const_component_row_iterator >	const_reverse_component_row_iterator

typedef std::reverse_iterator < component_row_range_iterator >	reverse_component_row_range_iterator

typedef std::reverse_iterator < const_component_row_range_iterator >	const_reverse_component_row_range_iterator

typedef slip::stride_iterator < block_pointer >	component_col_iterator

typedef slip::stride_iterator < const_block_pointer >	const_component_col_iterator

typedef slip::stride_iterator < block_pointer >	component_col_range_iterator

typedef slip::stride_iterator < const_block_pointer >	const_component_col_range_iterator

typedef std::reverse_iterator < component_col_iterator >	reverse_component_col_iterator

typedef std::reverse_iterator < const_component_col_iterator >	const_reverse_component_col_iterator

typedef std::reverse_iterator < component_col_range_iterator >	reverse_component_col_range_iterator

typedef std::reverse_iterator < const_component_col_range_iterator >	const_reverse_component_col_range_iterator

typedef slip::component_iterator2d_box < self, slip::Vector2d< T > ::SIZE >	component_iterator2d

typedef std::reverse_iterator < component_iterator2d >	reverse_component_iterator2d

typedef slip::const_component_iterator2d_box < const_self, slip::Vector2d < T >::SIZE >	const_component_iterator2d

typedef std::reverse_iterator < const_component_iterator2d >	const_reverse_component_iterator2d

typedef slip::component_iterator2d_range < self, slip::Vector2d< T > ::SIZE >	component_iterator2d_range

typedef std::reverse_iterator < component_iterator2d_range >	reverse_component_iterator2d_range

typedef slip::const_component_iterator2d_range < const_self, slip::Vector2d < T >::SIZE >	const_component_iterator2d_range

typedef std::reverse_iterator < const_component_iterator2d_range >	const_reverse_component_iterator2d_range

typedef iterator2d	default_iterator

typedef const_iterator2d	const_default_iterator

Public Member Functions

std::string name () const

Returns the name of the class. More...

void resize (const size_type height, const size_type width, const slip::Vector2d< T > &val=slip::Vector2d< T >())

Resizes a GenericMultiComponent2d. More...

size_type dim1 () const

Returns the number of rows (first dimension size) in the GenericMultiComponent2d. More...

size_type rows () const

Returns the number of rows (first dimension size) in the GenericMultiComponent2d. More...

size_type height () const

Returns the height (first dimension size) in the GenericMultiComponent2d. More...

size_type dim2 () const

Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...

size_type columns () const

Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...

size_type cols () const

Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...

size_type width () const

Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...

size_type size () const

Returns the number of elements in the GenericMultiComponent2d. More...

size_type max_size () const

Returns the maximal size (number of elements) in the GenericMultiComponent2d. More...

bool empty () const

Returns true if the GenericMultiComponent2d is empty. (Thus size() == 0) More...

void swap (self &M)

Swaps data with another GenericMultiComponent2d. More...

slip::Vector2d< T > min () const

Returns the min elements of the GenericMultiComponent2d according to the operator <. More...

slip::Vector2d< T > max () const

Returns the max elements of the GenericMultiComponent2d according to the operator <. More...

GenericMultiComponent2d
< slip::Vector2d< T > > & apply (slip::Vector2d< T >(*fun)(slip::Vector2d< T >))

Returns the sums of the elements of the GenericMultiComponent2d. More...

GenericMultiComponent2d
< slip::Vector2d< T > > & apply (slip::Vector2d< T >(*fun)(const slip::Vector2d< T > &))

Applys the one-parameter C-function fun to each element of the GenericMultiComponent2d. More...

Constructors & Destructors

Dense Field Vector manipulation

DenseVector2dField2d ()

Constructs a DenseVector2dField2d. More...

DenseVector2dField2d (const size_type height, const size_type width)

Constructs a DenseVector2dField2d. More...

DenseVector2dField2d (const size_type height, const size_type width, const slip::Vector2d< T > &val)

Constructs a DenseVector2dField2d initialized by the scalar value val. More...

DenseVector2dField2d (const size_type height, const size_type width, const T *val)

Constructs a DenseVector2dField2d initialized by an array val. More...

DenseVector2dField2d (const size_type height, const size_type width, const slip::Vector2d< T > *val)

Constructs a DenseVector2dField2d initialized by an array val. More...

template<typename InputIterator >

DenseVector2dField2d (const size_type height, const size_type width, InputIterator first, InputIterator last)

Contructs a DenseVector2dField2d from a range. More...

template<typename InputIterator >

DenseVector2dField2d (const size_type height, const size_type width, InputIterator first1, InputIterator last1, InputIterator first2)

Contructs a DenseVector2dField2d from a 2 ranges. More...

DenseVector2dField2d (const self &rhs)

Constructs a copy of the DenseVector2dField2d rhs. More...

~DenseVector2dField2d ()

Destructor of the DenseVector2dField2d. More...

i/o operators

void write_gnuplot (const std::string &file_path_name)

Writes a DenseVector2dField2d to a gnuplot file path name. More...

void write_tecplot (const std::string &file_path_name, const std::string &title, const std::string &zone)

Writes a DenseVector2dField2d to a tecplot file path name. More...

void read_gnuplot (const std::string &file_path_name)

Reads a DenseVector2dField2d from a gnuplot file path name. More...

void read_tecplot (const std::string &file_path_name)

Reads a DenseVector2dField2d from a tecplot file path name. More...

Assignment operators and methods

self & operator= (const slip::Vector2d< T > &val)

Affects all the element of the DenseVector2dField2d by val. More...

self & operator= (const T &val)

Affects all the element of the DenseVector2dField2d by val. More...

Element access operators

T & Vx1 (const size_type i, const size_type j)

Subscript access to first element of the data contained in the DenseVector2dField2d. More...

const T & Vx1 (const size_type i, const size_type j) const

Subscript access to the data contained in the DenseVector2dField2d. More...

T & Vx2 (const size_type i, const size_type j)

Subscript access to second element of the data contained in the DenseVector2dField2d. More...

const T & Vx2 (const size_type i, const size_type j) const

Subscript access to the data contained in the DenseVector2dField2d. More...

T & u (const size_type i, const size_type j)

Subscript access to first element of the data contained in the DenseVector2dField2d. More...

const T & u (const size_type i, const size_type j) const

Subscript access to the first element of the data contained in the DenseVector2dField2d. More...

T & v (const size_type i, const size_type j)

Subscript access to second element of the data contained in the DenseVector2dField2d. More...

const T & v (const size_type i, const size_type j) const

Subscript access to second element of the data contained in the DenseVector2dField2d. More...

norm_type norm (const size_type i, const size_type j) const

Subscript access to a local norm contained in the DenseVector2dField2d. More...

norm_type angle (const size_type i, const size_type j) const

Subscript access to a local angle contained in the DenseVector2dField2d. The result is a radian between the range [-PI,PI]. More...

Arithmetic operators

self & operator+= (const T &val)

Add val to each element of the DenseVector2dField2d. More...

self & operator-= (const T &val)

self & operator*= (const T &val)

self & operator/= (const T &val)

self operator- () const

self & operator+= (const slip::Vector2d< T > &val)

Add val to each element of the DenseVector2dField2d. More...

self & operator-= (const slip::Vector2d< T > &val)

self & operator*= (const slip::Vector2d< T > &val)

self & operator/= (const slip::Vector2d< T > &val)

self & operator+= (const self &rhs)

self & operator-= (const self &rhs)

self & operator*= (const self &rhs)

self & operator/= (const self &rhs)

Mathematical operators

template<typename Container2D >

void norm (Container2D &result)

Computes Eucliean norm of each element in the field and write it to a Container2D. More...

template<typename Container2D >

void angle (Container2D &result)

Computes angle (radian) of each element with the cartesian axis and write it to a Container2D. More...

iterators

iterator begin ()

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_iterator begin () const

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

component_iterator begin (const std::size_t component)

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_component_iterator begin (const std::size_t component) const

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

iterator end ()

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_iterator end () const

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

component_iterator end (const std::size_t component)

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_component_iterator end (const std::size_t component) const

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

reverse_iterator rbegin ()

Returns a read/write reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...

const_reverse_iterator rbegin () const

Returns a read-only (constant) reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...

reverse_component_iterator rbegin (const std::size_t component)

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_reverse_component_iterator rbegin (const std::size_t component) const

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

reverse_iterator rend ()

Returns a read/write reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...

const_reverse_iterator rend () const

Returns a read-only (constant) reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...

reverse_component_iterator rend (const std::size_t component)

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_reverse_component_iterator rend (const std::size_t component) const

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

row_iterator row_begin (const size_type row)

Returns a read/write iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_row_iterator row_begin (const size_type row) const

Returns a read-only iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

row_range_iterator row_begin (const size_type row, const slip::Range< int > &range)

Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

const_row_range_iterator row_begin (const size_type row, const slip::Range< int > &range) const

Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

component_row_iterator row_begin (const std::size_t component, const std::size_t row)

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_component_row_iterator row_begin (const std::size_t component, const std::size_t row) const

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

component_row_range_iterator row_begin (const std::size_t component, const size_type row, const slip::Range< int > &range)

Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

const_component_row_range_iterator row_begin (const std::size_t component, const size_type row, const slip::Range< int > &range) const

Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

row_iterator row_end (const size_type row)

Returns a read/write iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_row_iterator row_end (const size_type row) const

Returns a read-only iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

row_range_iterator row_end (const size_type row, const slip::Range< int > &range)

Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

const_row_range_iterator row_end (const size_type row, const slip::Range< int > &range) const

Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

component_row_iterator row_end (const std::size_t component, const std::size_t row)

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_component_row_iterator row_end (const std::size_t component, const std::size_t row) const

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

component_row_range_iterator row_end (const std::size_t component, const size_type row, const slip::Range< int > &range)

Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

const_component_row_range_iterator row_end (const std::size_t component, const size_type row, const slip::Range< int > &range) const

Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

col_iterator col_begin (const size_type col)

Returns a read/write iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...

const_col_iterator col_begin (const size_type col) const

Returns a read-only iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...

col_range_iterator col_begin (const size_type col, const slip::Range< int > &range)

Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

const_col_range_iterator col_begin (const size_type col, const slip::Range< int > &range) const

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

component_col_iterator col_begin (const std::size_t component, const std::size_t col)

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_component_col_iterator col_begin (const std::size_t component, const std::size_t col) const

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

component_col_range_iterator col_begin (const std::size_t component, const size_type col, const slip::Range< int > &range)

Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

const_component_col_range_iterator col_begin (const std::size_t component, const size_type col, const slip::Range< int > &range) const

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

col_iterator col_end (const size_type col)

Returns a read/write iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...

const_col_iterator col_end (const size_type col) const

Returns a read-only iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...

col_range_iterator col_end (const size_type col, const slip::Range< int > &range)

Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

const_col_range_iterator col_end (const size_type col, const slip::Range< int > &range) const

Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

component_col_iterator col_end (const std::size_t component, const std::size_t col)

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_component_col_iterator col_end (const std::size_t component, const std::size_t col) const

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

component_col_range_iterator col_end (const std::size_t component, const size_type col, const slip::Range< int > &range)

Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

const_component_col_range_iterator col_end (const std::size_t component, const size_type col, const slip::Range< int > &range) const

Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...

reverse_row_iterator row_rbegin (const size_type row)

Returns a read/write reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...

const_reverse_row_iterator row_rbegin (const size_type row) const

Returns a read-only reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...

reverse_row_range_iterator row_rbegin (const size_type row, const slip::Range< int > &range)

Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

const_reverse_row_range_iterator row_rbegin (const size_type row, const slip::Range< int > &range) const

Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

reverse_component_row_iterator row_rbegin (const std::size_t component, const std::size_t row)

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_reverse_component_row_iterator row_rbegin (const std::size_t component, const std::size_t row) const

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

reverse_component_row_range_iterator row_rbegin (const std::size_t component, const size_type row, const slip::Range< int > &range)

Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

const_reverse_component_row_range_iterator row_rbegin (const std::size_t component, const size_type row, const slip::Range< int > &range) const

Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

reverse_row_iterator row_rend (const size_type row)

Returns a read/write reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...

const_reverse_row_iterator row_rend (const size_type row) const

Returns a read-only reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...

reverse_row_range_iterator row_rend (const size_type row, const slip::Range< int > &range)

Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

const_reverse_row_range_iterator row_rend (const size_type row, const slip::Range< int > &range) const

Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

reverse_component_row_iterator row_rend (const std::size_t component, const std::size_t row)

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

const_reverse_component_row_iterator row_rend (const std::size_t component, const std::size_t row) const

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

reverse_component_row_range_iterator row_rend (const std::size_t component, const size_type row, const slip::Range< int > &range)

Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

const_reverse_component_row_range_iterator row_rend (const std::size_t component, const size_type row, const slip::Range< int > &range) const

Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

reverse_col_iterator col_rbegin (const size_type col)

Returns a read/write reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...

const_reverse_col_iterator col_rbegin (const size_type col) const

Returns a read-only reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...

reverse_col_range_iterator col_rbegin (const size_type col, const slip::Range< int > &range)

Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

const_reverse_col_range_iterator col_rbegin (const size_type col, const slip::Range< int > &range) const

Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

reverse_component_col_iterator col_rbegin (const std::size_t component, const std::size_t col)

Returns a read/write iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order. More...

const_reverse_component_col_iterator col_rbegin (const std::size_t component, const std::size_t col) const

Returns a read-only (constant) iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order. More...

reverse_component_col_range_iterator col_rbegin (const std::size_t component, const size_type col, const slip::Range< int > &range)

Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

const_reverse_component_col_range_iterator col_rbegin (const std::size_t component, const size_type col, const slip::Range< int > &range) const

Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

reverse_col_iterator col_rend (const size_type col)

Returns a read/write reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...

const_reverse_col_iterator col_rend (const size_type col) const

Returns a read-only reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...

reverse_col_range_iterator col_rend (const size_type col, const slip::Range< int > &range)

Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

const_reverse_col_range_iterator col_rend (const size_type col, const slip::Range< int > &range) const

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

reverse_component_col_iterator col_rend (const std::size_t component, const std::size_t col)

Returns a read/write iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...

const_reverse_component_col_iterator col_rend (const std::size_t component, const std::size_t col) const

Returns a read-only (constant) iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...

reverse_component_col_range_iterator col_rend (const std::size_t component, const size_type col, const slip::Range< int > &range)

Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

const_reverse_component_col_range_iterator col_rend (const std::size_t component, const size_type col, const slip::Range< int > &range) const

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...

iterator2d upper_left ()

Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...

const_iterator2d upper_left () const

Returns a read-only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...

iterator2d upper_left (const Box2d< int > &box)

Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...

const_iterator2d upper_left (const Box2d< int > &box) const

Returns a read only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...

iterator2d_range upper_left (const Range< int > &row_range, const Range< int > &col_range)

Returns a read/write iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...

const_iterator2d_range upper_left (const Range< int > &row_range, const Range< int > &col_range) const

Returns a read-only iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...

iterator2d_range upper_left (const Range< int > &range)

Returns a read/write iterator2d_range that points to the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. More...

const_iterator2d_range upper_left (const Range< int > &range) const

Returns a read-only iterator2d_range that points to the to the upper left element of the Range range associated to the GenericMultiComponent2d. More...

component_iterator2d upper_left (const std::size_t component)

Returns a read/write component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...

const_component_iterator2d upper_left (const std::size_t component) const

Returns a read only const_component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...

component_iterator2d upper_left (const std::size_t component, const Box2d< int > &box)

Returns a read/write component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...

const_component_iterator2d upper_left (const std::size_t component, const Box2d< int > &box) const

Returns a read only component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...

component_iterator2d_range upper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)

Returns a read/write component iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...

const_component_iterator2d_range upper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const

Returns a read-only component iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...

iterator2d bottom_right ()

Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...

const_iterator2d bottom_right () const

Returns a read-only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...

iterator2d bottom_right (const Box2d< int > &box)

Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...

const_iterator2d bottom_right (const Box2d< int > &box) const

Returns a read only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...

iterator2d_range bottom_right (const Range< int > &row_range, const Range< int > &col_range)

Returns a read/write iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...

const_iterator2d_range bottom_right (const Range< int > &row_range, const Range< int > &col_range) const

Returns a read-only iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...

iterator2d_range bottom_right (const Range< int > &range)

Returns a read/write iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. More...

const_iterator2d_range bottom_right (const Range< int > &range) const

Returns a read-only const_iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. More...

component_iterator2d bottom_right (const std::size_t component)

Returns a read/write component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...

const_component_iterator2d bottom_right (const std::size_t component) const

Returns a read only const_component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...

component_iterator2d bottom_right (const std::size_t component, const Box2d< int > &box)

Returns a read/write component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...

const_component_iterator2d bottom_right (const std::size_t component, const Box2d< int > &box) const

Returns a read only component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...

component_iterator2d_range bottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)

Returns a read/write component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...

const_component_iterator2d_range bottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const

Returns a read-only component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...

reverse_iterator2d rupper_left ()

Returns a read/write reverse iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...

const_reverse_iterator2d rupper_left () const

Returns a read only reverse iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...

reverse_iterator2d rupper_left (const Box2d< int > &box)

Returns a read/write reverse iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

const_reverse_iterator2d rupper_left (const Box2d< int > &box) const

Returns a read only reverse iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

reverse_iterator2d_range rupper_left (const Range< int > &row_range, const Range< int > &col_range)

Returns a read/write reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

const_reverse_iterator2d_range rupper_left (const Range< int > &row_range, const Range< int > &col_range) const

Returns a read-only reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

reverse_iterator2d_range rupper_left (const Range< int > &range)

Returns a read/write reverse_iterator2d_range that points to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...

const_reverse_iterator2d_range rupper_left (const Range< int > &range) const

Returns a read-only reverse_iterator2d_range that points to the to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...

reverse_component_iterator2d rupper_left (const std::size_t component)

Returns a read/write reverse component iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...

const_reverse_component_iterator2d rupper_left (const std::size_t component) const

Returns a read only reverse component iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...

reverse_component_iterator2d rupper_left (const std::size_t component, const Box2d< int > &box)

Returns a read/write reverse component iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

const_reverse_component_iterator2d rupper_left (const std::size_t component, const Box2d< int > &box) const

Returns a read only reverse component iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

reverse_component_iterator2d_range rupper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)

Returns a read/write reverse component iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

const_reverse_component_iterator2d_range rupper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const

Returns a read-only reverse_component_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

reverse_iterator2d rbottom_right ()

Returns a read/write reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...

const_reverse_iterator2d rbottom_right () const

Returns a read only reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...

reverse_iterator2d rbottom_right (const Box2d< int > &box)

Returns a read/write reverse iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d. More...

const_reverse_iterator2d rbottom_right (const Box2d< int > &box) const

Returns a read-only reverse iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d. More...

reverse_iterator2d_range rbottom_right (const Range< int > &row_range, const Range< int > &col_range)

Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

const_reverse_iterator2d_range rbottom_right (const Range< int > &row_range, const Range< int > &col_range) const

Returns a read-only reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order. More...

reverse_iterator2d_range rbottom_right (const Range< int > &range)

Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...

const_reverse_iterator2d_range rbottom_right (const Range< int > &range) const

Returns a read_only reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...

reverse_component_iterator2d rbottom_right (const std::size_t component)

Returns a read/write reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...

const_reverse_component_iterator2d rbottom_right (const std::size_t component) const

Returns a read only reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...

reverse_component_iterator2d rbottom_right (const std::size_t component, const Box2d< int > &box)

Returns a read/write reverse component iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d. More...

const_reverse_component_iterator2d rbottom_right (const std::size_t component, const Box2d< int > &box) const

Returns a read-only reverse component iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d. More...

reverse_component_iterator2d_range rbottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)

Returns a read/write reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...

const_reverse_component_iterator2d_range rbottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const

Returns a read-only reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order. More...

Assignment operators and methods

void fill (const slip::Vector2d< T > &value)

Fills the container range [begin(),begin()+size()) with copies of value. More...

void fill (const typename slip::Vector2d< T >::pointer value)

Fills the container range [begin(),begin()+size()) with a copy of the value array. More...

void fill (const slip::Vector2d< T > *value)

Fills the container range [begin(),begin()+size()) with a copy of the value array. More...

void fill (InputIterator first, InputIterator last)

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last) More...

void fill (std::vector< InputIterator > first_iterators_list, InputIterator last)

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last) More...

void fill (std::size_t component, InputIterator first, InputIterator last)

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last) More...

Element access operators

Less than comparison operator (GenericMultiComponent2d ordering relation)

Parameters

x	A GenericMultiComponent2d
y	A GenericMultiComponent2d of the same type of x

Returns: true iff x is lexicographically less than y

Precondition: x.size() == y.size()

More than comparison operator

Parameters

x	A GenericMultiComponent2d
y	A GenericMultiComponent2d of the same type of x

Returns: true iff y > x

Precondition: x.size() == y.size()

Less than equal comparison operator

Parameters

x	A GenericMultiComponent2d
y	A GenericMultiComponent2d of the same type of x

Returns: true iff !(y > x)

Precondition: x.size() == y.size()

More than equal comparison operator

Parameters

x	A GenericMultiComponent2d
y	A GenericMultiComponent2d of the same type of x

Returns: true iff !(x < y)

Precondition: x.size() == y.size()

pointer operator[] (const size_type i)

Subscript access to the row datas contained in the GenericMultiComponent2d. More...

const_pointer operator[] (const size_type i) const

Subscript access to the row datas contained in the GenericMultiComponent2d. More...

reference operator() (const size_type i, const size_type j)

Subscript access to the data contained in the GenericMultiComponent2d. More...

const_reference operator() (const size_type i, const size_type j) const

Subscript access to the data contained in the GenericMultiComponent2d. More...

reference operator() (const Point2d< size_type > &point2d)

Subscript access to the data contained in the GenericMultiComponent2d. More...

const_reference operator() (const Point2d< size_type > &point2d) const

Subscript access to the data contained in the GenericMultiComponent2d. More...

self operator() (const Range< int > &row_range, const Range< int > &col_range)

Subscript access to the data contained in the GenericMultiComponent2d. More...

Static Public Attributes
static const std::size_t	DIM = 2

static const std::size_t	COMPONENTS

Friends
class	boost::serialization::access

Detailed Description

template<typename T>
class slip::DenseVector2dField2d< T >

This is a Dense Vector2d Field. This container statisfies the BidirectionnalContainer concepts of the STL. It is also an 2d extension of the RandomAccessContainer concept. That is to say the bracket element access is replaced by the double bracket element access. It is a specialization of GenericMultiComponent2d using Vector2d blocks. It implements arithmetic and mathematical operators and read/write methods (tecplot and gnuplot file format...). Contrary to slip::RegularVector2dField2d, this container is not associated with a grid.

Author: Benoit Tremblais <tremblais_AT_sic.univ-poitiers.fr>

Version: 0.0.2

Date: 2014/03/25

Since: 1.0.0

Parameters

T	Type of object in the DenseVector2dField2d

Axis conventions:: axis and notation conventions

Definition at line 133 of file DenseVector2dField2d.hpp.

Member Typedef Documentation

template<typename T>

typedef GenericMultiComponent2d<slip::Vector2d<T> > slip::DenseVector2dField2d< T >::base

Definition at line 164 of file DenseVector2dField2d.hpp.

typedef block_value_type* slip::GenericMultiComponent2d< slip::Vector2d< T > >::block_pointer

inherited

Definition at line 229 of file GenericMultiComponent2d.hpp.

typedef block_value_type& slip::GenericMultiComponent2d< slip::Vector2d< T > >::block_reference

inherited

Definition at line 231 of file GenericMultiComponent2d.hpp.

typedef slip::Vector2d< T > ::value_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::block_value_type

inherited

Definition at line 228 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef slip::stride_iterator<pointer> slip::DenseVector2dField2d< T >::col_iterator

Definition at line 184 of file DenseVector2dField2d.hpp.

typedef slip::stride_iterator<col_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_range_iterator

inherited

Definition at line 223 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_col_iterator

inherited

Definition at line 260 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_col_range_iterator

inherited

Definition at line 262 of file GenericMultiComponent2d.hpp.

typedef slip::kstride_iterator<typename slip::Vector2d< T > ::pointer,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_iterator

inherited

Definition at line 233 of file GenericMultiComponent2d.hpp.

typedef slip::component_iterator2d_box<self,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_iterator2d

inherited

Definition at line 269 of file GenericMultiComponent2d.hpp.

typedef slip::component_iterator2d_range<self,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_iterator2d_range

inherited

Definition at line 274 of file GenericMultiComponent2d.hpp.

typedef component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_row_iterator

inherited

Definition at line 251 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_row_range_iterator

inherited

Definition at line 253 of file GenericMultiComponent2d.hpp.

typedef const block_value_type* slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_block_pointer

inherited

Definition at line 230 of file GenericMultiComponent2d.hpp.

typedef const block_value_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_block_reference

inherited

Definition at line 232 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef slip::stride_iterator<const_pointer> slip::DenseVector2dField2d< T >::const_col_iterator

Definition at line 185 of file DenseVector2dField2d.hpp.

typedef slip::stride_iterator<const_col_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_col_range_iterator

inherited

Definition at line 224 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<const_block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_col_iterator

inherited

Definition at line 261 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<const_block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_col_range_iterator

inherited

Definition at line 263 of file GenericMultiComponent2d.hpp.

typedef slip::kstride_iterator<typename slip::Vector2d< T > ::const_pointer,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_iterator

inherited

Definition at line 234 of file GenericMultiComponent2d.hpp.

typedef slip::const_component_iterator2d_box<const_self,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_iterator2d

inherited

Definition at line 271 of file GenericMultiComponent2d.hpp.

typedef slip::const_component_iterator2d_range<const_self,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_iterator2d_range

inherited

Definition at line 276 of file GenericMultiComponent2d.hpp.

typedef const_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_row_iterator

inherited

Definition at line 252 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<const_block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_row_range_iterator

inherited

Definition at line 254 of file GenericMultiComponent2d.hpp.

typedef const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_default_iterator

inherited

Definition at line 281 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef const_pointer slip::DenseVector2dField2d< T >::const_iterator

Definition at line 176 of file DenseVector2dField2d.hpp.

template<typename T>

typedef slip::GenericMultiComponent2d<slip::Vector2d<T> >::const_iterator2d slip::DenseVector2dField2d< T >::const_iterator2d

Definition at line 193 of file DenseVector2dField2d.hpp.

typedef slip::Matrix<slip::Vector2d< T > >::const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_iterator2d_range

inherited

Definition at line 226 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef const value_type* slip::DenseVector2dField2d< T >::const_pointer

Definition at line 168 of file DenseVector2dField2d.hpp.

template<typename T>

typedef const value_type& slip::DenseVector2dField2d< T >::const_reference

Definition at line 170 of file DenseVector2dField2d.hpp.

template<typename T>

typedef std::reverse_iterator<const_col_iterator> slip::DenseVector2dField2d< T >::const_reverse_col_iterator

Definition at line 190 of file DenseVector2dField2d.hpp.

typedef std::reverse_iterator<const_col_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_col_range_iterator

inherited

Definition at line 245 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_col_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_col_iterator

inherited

Definition at line 265 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_col_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_col_range_iterator

inherited

Definition at line 267 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_iterator

inherited

Definition at line 249 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_iterator2d> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_iterator2d

inherited

Definition at line 272 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_iterator2d_range> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_iterator2d_range

inherited

Definition at line 277 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_row_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_row_iterator

inherited

Definition at line 256 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_row_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_row_range_iterator

inherited

Definition at line 258 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef std::reverse_iterator<const_iterator> slip::DenseVector2dField2d< T >::const_reverse_iterator

Definition at line 179 of file DenseVector2dField2d.hpp.

typedef std::reverse_iterator<const_iterator2d> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_iterator2d

inherited

Definition at line 241 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_iterator2d_range> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_iterator2d_range

inherited

Definition at line 247 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef std::reverse_iterator<const_iterator> slip::DenseVector2dField2d< T >::const_reverse_row_iterator

Definition at line 188 of file DenseVector2dField2d.hpp.

typedef std::reverse_iterator<const_row_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_row_range_iterator

inherited

Definition at line 243 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef const_pointer slip::DenseVector2dField2d< T >::const_row_iterator

Definition at line 183 of file DenseVector2dField2d.hpp.

typedef slip::stride_iterator<const_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_row_range_iterator

inherited

Definition at line 222 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef const DenseVector2dField2d<T> slip::DenseVector2dField2d< T >::const_self

Definition at line 163 of file DenseVector2dField2d.hpp.

template<typename T>

typedef slip::kstride_iterator<const_vector2d_pointer,2> slip::DenseVector2dField2d< T >::const_vector2d_iterator

Definition at line 201 of file DenseVector2dField2d.hpp.

template<typename T>

typedef const vector2d_value_type* slip::DenseVector2dField2d< T >::const_vector2d_pointer

Definition at line 197 of file DenseVector2dField2d.hpp.

template<typename T>

typedef const vector2d_value_type slip::DenseVector2dField2d< T >::const_vector2d_reference

Definition at line 199 of file DenseVector2dField2d.hpp.

typedef iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::default_iterator

inherited

Definition at line 280 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef ptrdiff_t slip::DenseVector2dField2d< T >::difference_type

Definition at line 172 of file DenseVector2dField2d.hpp.

template<typename T>

typedef pointer slip::DenseVector2dField2d< T >::iterator

Definition at line 175 of file DenseVector2dField2d.hpp.

template<typename T>

typedef slip::GenericMultiComponent2d<slip::Vector2d<T> >::iterator2d slip::DenseVector2dField2d< T >::iterator2d

Definition at line 192 of file DenseVector2dField2d.hpp.

typedef slip::Matrix<slip::Vector2d< T > >::iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::iterator2d_range

inherited

Definition at line 225 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef slip::lin_alg_traits<value_type>::value_type slip::DenseVector2dField2d< T >::norm_type

Definition at line 203 of file DenseVector2dField2d.hpp.

template<typename T>

typedef value_type* slip::DenseVector2dField2d< T >::pointer

Definition at line 167 of file DenseVector2dField2d.hpp.

template<typename T>

typedef value_type& slip::DenseVector2dField2d< T >::reference

Definition at line 169 of file DenseVector2dField2d.hpp.

template<typename T>

typedef std::reverse_iterator<col_iterator> slip::DenseVector2dField2d< T >::reverse_col_iterator

Definition at line 189 of file DenseVector2dField2d.hpp.

typedef std::reverse_iterator<col_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_col_range_iterator

inherited

Definition at line 244 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_col_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_col_iterator

inherited

Definition at line 264 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_col_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_col_range_iterator

inherited

Definition at line 266 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_iterator

inherited

Definition at line 248 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_iterator2d> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_iterator2d

inherited

Definition at line 270 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_iterator2d_range> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_iterator2d_range

inherited

Definition at line 275 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_row_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_row_iterator

inherited

Definition at line 255 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_row_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_row_range_iterator

inherited

Definition at line 257 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef std::reverse_iterator<iterator> slip::DenseVector2dField2d< T >::reverse_iterator

Definition at line 178 of file DenseVector2dField2d.hpp.

typedef std::reverse_iterator<iterator2d> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_iterator2d

inherited

Definition at line 240 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<iterator2d_range> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_iterator2d_range

inherited

Definition at line 246 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef std::reverse_iterator<iterator> slip::DenseVector2dField2d< T >::reverse_row_iterator

Definition at line 187 of file DenseVector2dField2d.hpp.

typedef std::reverse_iterator<row_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_row_range_iterator

inherited

Definition at line 242 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef pointer slip::DenseVector2dField2d< T >::row_iterator

Definition at line 182 of file DenseVector2dField2d.hpp.

typedef slip::stride_iterator<pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_range_iterator

inherited

Definition at line 221 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef DenseVector2dField2d<T> slip::DenseVector2dField2d< T >::self

Definition at line 162 of file DenseVector2dField2d.hpp.

template<typename T>

typedef std::size_t slip::DenseVector2dField2d< T >::size_type

Definition at line 173 of file DenseVector2dField2d.hpp.

template<typename T>

typedef slip::Vector2d<T> slip::DenseVector2dField2d< T >::value_type

Definition at line 161 of file DenseVector2dField2d.hpp.

template<typename T>

typedef slip::kstride_iterator<vector2d_pointer,2> slip::DenseVector2dField2d< T >::vector2d_iterator

Definition at line 200 of file DenseVector2dField2d.hpp.

template<typename T>

typedef vector2d_value_type* slip::DenseVector2dField2d< T >::vector2d_pointer

Definition at line 196 of file DenseVector2dField2d.hpp.

template<typename T>

typedef vector2d_value_type& slip::DenseVector2dField2d< T >::vector2d_reference

Definition at line 198 of file DenseVector2dField2d.hpp.

template<typename T>

typedef T slip::DenseVector2dField2d< T >::vector2d_value_type

Definition at line 195 of file DenseVector2dField2d.hpp.

Constructor & Destructor Documentation

template<typename T>

slip::DenseVector2dField2d< T >::DenseVector2dField2d ( )

inline

Constructs a DenseVector2dField2d.

Definition at line 216 of file DenseVector2dField2d.hpp.

template<typename T>

slip::DenseVector2dField2d< T >::DenseVector2dField2d	(	const size_type	height,
		const size_type	width
	)

inline

Constructs a DenseVector2dField2d.

Parameters

height	first dimension of the DenseVector2dField2d
width	second dimension of the DenseVector2dField2d

Dense Field Vector manipulation

Definition at line 227 of file DenseVector2dField2d.hpp.

template<typename T>

slip::DenseVector2dField2d< T >::DenseVector2dField2d	(	const size_type	height,
		const size_type	width,
		const slip::Vector2d< T > &	val
	)

inline

Constructs a DenseVector2dField2d initialized by the scalar value val.

Parameters

height	first dimension of the DenseVector2dField2d
width	second dimension of the DenseVector2dField2d
val	initialization value of the elements

Definition at line 238 of file DenseVector2dField2d.hpp.

template<typename T>

slip::DenseVector2dField2d< T >::DenseVector2dField2d	(	const size_type	height,
		const size_type	width,
		const T *	val
	)

inline

Constructs a DenseVector2dField2d initialized by an array val.

Parameters

height	first dimension of the DenseVector2dField2d
width	second dimension of the DenseVector2dField2d
val	initialization linear array value of the elements

Definition at line 250 of file DenseVector2dField2d.hpp.

template<typename T>

slip::DenseVector2dField2d< T >::DenseVector2dField2d	(	const size_type	height,
		const size_type	width,
		const slip::Vector2d< T > *	val
	)

inline

Constructs a DenseVector2dField2d initialized by an array val.

Parameters

height	first dimension of the DenseVector2dField2d
width	second dimension of the DenseVector2dField2d
val	initialization array value of the elements

Definition at line 262 of file DenseVector2dField2d.hpp.

template<typename T>

template<typename InputIterator >

slip::DenseVector2dField2d< T >::DenseVector2dField2d	(	const size_type	height,
		const size_type	width,
		InputIterator	first,
		InputIterator	last
	)

inline

Contructs a DenseVector2dField2d from a range.

Parameters

height	first dimension of the DenseVector2dField2d
width	second dimension of the DenseVector2dField2d
first	An input iterator.
last	An input iterator.

Create a DenseVector2dField2d consisting of copies of the elements from [first,last).

Definition at line 280 of file DenseVector2dField2d.hpp.

template<typename T>

template<typename InputIterator >

slip::DenseVector2dField2d< T >::DenseVector2dField2d	(	const size_type	height,
		const size_type	width,
		InputIterator	first1,
		InputIterator	last1,
		InputIterator	first2
	)

inline

Contructs a DenseVector2dField2d from a 2 ranges.

Parameters

height	first dimension of the DenseVector2dField2d
width	second dimension of the DenseVector2dField2d
first1	An input iterator.
last1	An input iterator.
first2	An input iterator.

Create a DenseVector2dField2d consisting of copies of the elements from [first1,last1), [first2,first2 + (last1 - first1)),

Definition at line 304 of file DenseVector2dField2d.hpp.

template<typename T>

slip::DenseVector2dField2d< T >::DenseVector2dField2d ( const self & rhs )

inline

Constructs a copy of the DenseVector2dField2d rhs.

Definition at line 323 of file DenseVector2dField2d.hpp.

template<typename T>

slip::DenseVector2dField2d< T >::~DenseVector2dField2d ( )

inline

Destructor of the DenseVector2dField2d.

Definition at line 330 of file DenseVector2dField2d.hpp.

Member Function Documentation

template<typename T >

DenseVector2dField2d< T >::norm_type slip::DenseVector2dField2d< T >::angle	(	const size_type	i,
		const size_type	j
	)		const

inline

Subscript access to a local angle contained in the DenseVector2dField2d. The result is a radian between the range [-PI,PI].

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read_only (constant) reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1069 of file DenseVector2dField2d.hpp.

template<typename T>

template<typename Container2D >

void slip::DenseVector2dField2d< T >::angle ( Container2D & result )

inline

Computes angle (radian) of each element with the cartesian axis and write it to a Container2D.

Author: Benoit Tremblais <benoit.tremblais_AT_sic.univ-poitiers.fr>

Date: 2008/04/21

Version: 0.0.1

Parameters

result A Container2D which contain the angle of each element.

Definition at line 693 of file DenseVector2dField2d.hpp.

GenericMultiComponent2d<slip::Vector2d< T > >& slip::GenericMultiComponent2d< slip::Vector2d< T > >::apply ( slip::Vector2d< T > (*)(slip::Vector2d< T > ) fun )

inherited

Returns the sums of the elements of the GenericMultiComponent2d.

Precondition: size() != 0

Applys the one-parameter C-function fun to each element of the GenericMultiComponent2d

Parameters

fun	The one-parameter C function

Returns: the resulting GenericMultiComponent2d

GenericMultiComponent2d<slip::Vector2d< T > >& slip::GenericMultiComponent2d< slip::Vector2d< T > >::apply ( slip::Vector2d< T > (*)(const slip::Vector2d< T > &) fun )

inherited

Applys the one-parameter C-function fun to each element of the GenericMultiComponent2d.

Parameters

fun	The one-const-parameter C function

Returns: the resulting GenericMultiComponent2d

iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::begin ( )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns: begin iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);

//copy the sum of the elements of A1 and A2 in S

std::transform(A1.begin(),A1.end(),

A2.begin(),S.begin(),

std::plus<slip::Vector2d<double> >());

const_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::begin ( ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns: const begin iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);

//copy the sum of A1 and A2 in S

std::transform(A1.begin(),A1.end(),

A2.begin(),S.begin(),

std::plus<slip::Vector2d<double> >());

component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::begin ( const std::size_t component )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component The component number.

Returns: begin component_iterator value

const_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::begin ( const std::size_t component ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component The component number.

Returns: const begin component_iterator value

iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( )

inherited

Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Returns: begin iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);

//copy the elements of A1 in A2

std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( ) const

inherited

Returns a read-only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Returns: begin const iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);

//copy the elements of A1 in A2

std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Box2d< int > & box )

inherited

Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns: end iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);

slip::Box2d<int> box(1,1,3,2);

//copy the elements of A1 inside the box which upper_left element

//is located in (1,1) and the bottom right element is in (3,2)

std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Box2d< int > & box ) const

inherited

Returns a read only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns: end const iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);

slip::Box2d<int> box(1,1,3,2);

//copy the elements of A1 inside the box which upper_left element

//is located in (1,1) and the bottom right element is in (3,2)

std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right	(	const Range< int > &	row_range,
		const Range< int > &	col_range
	)

inherited

Returns a read/write iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);

slip::Range<int> row_range(0,A1.dim2()-1,2);

slip::Range<int> col_range(0,A1.dim1()-1,2);

//copy the elements of A1 within the ranges row_range and col_range

//in A2

std::copy(A1.upper_left(row_range,col_range),

A1.bottom_right(row_range,col_range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right	(	const Range< int > &	row_range,
		const Range< int > &	col_range
	)		const

inherited

Returns a read-only iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);

slip::Range<int> row_range(0,A1.dim2()-1,2);

slip::Range<int> col_range(0,A1.dim1()-1,2);

//copy the elements of A1 within the ranges row_range and col_range

//in A2

std::copy(A1.upper_left(row_range,col_range),

A1.bottom_right(row_range,col_range),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Range< int > & range )

inherited

Returns a read/write iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols.

Parameters

range The range of the rows and the cols.

Precondition: range must be valid.; The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the elements of A1 within the range range

//in A2

std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Range< int > & range ) const

inherited

Returns a read-only const_iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols.

Parameters

range The range of the rows and the cols.

Precondition: range must be valid.; The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the elements of A1 within the range range

//in A2

std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const std::size_t component )

inherited

Returns a read/write component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Parameters

component The component number.

Returns: begin iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);

//copy the first component of the elements of A1 in A2

std::copy(A1.upper_left(0),A1.bottom_right(0),A2.upper_left(0));

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const std::size_t component ) const

inherited

Returns a read only const_component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Parameters

component The component number.

Returns: begin iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right	(	const std::size_t	component,
		const Box2d< int > &	box
	)

inherited

Returns a read/write component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns: end iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right	(	const std::size_t	component,
		const Box2d< int > &	box
	)		const

inherited

Returns a read only component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns: end const iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right	(	const std::size_t	component,
		const Range< int > &	row_range,
		const Range< int > &	col_range
	)

inherited

Returns a read/write component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right	(	const std::size_t	component,
		const Range< int > &	row_range,
		const Range< int > &	col_range
	)		const

inherited

Returns a read-only component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const size_type col )

inherited

Returns a read/write iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column to iterate.

Returns: begin col_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

//copy the elements of the column 0 of A1 in the column 1 of A2

std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

const_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const size_type col ) const

inherited

Returns a read-only iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column to iterate.

Returns: begin const_col_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

//copy the elements of the column 0 of A1 in the column 1 of A2

std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin	(	const size_type	col,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate

Returns: begin col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);

slip::Range<int> range(0,A1.dim1()-1,2);

//copy the elements of the column 0 of A1 iterated according to the

//range in the column 1 of A2

std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

const_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin	(	const size_type	col,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: begin const_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);

slip::Range<int> range(0,A1.dim1()-1,2);

//copy the elements of the column 0 of A1 iterated according to the

//range in the column 1 of A2

std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin	(	const std::size_t	component,
		const std::size_t	col
	)

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns: begin component_col_iterator value.

const_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin	(	const std::size_t	component,
		const std::size_t	col
	)		const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns: const begin component_col_iterator value

component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin	(	const std::size_t	component,
		const size_type	col,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate

Returns: begin component_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);

slip::Range<int> range(0,A1.dim1()-1,2);

//copy the first component of the elements of the column 0 of A1 iterated according to the

//range in the column 1 of A2

std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

const_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin	(	const std::size_t	component,
		const size_type	col,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: begin const_component_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);

slip::Range<int> range(0,A1.dim1()-1,2);

//copy the first component of the elements of the column 0 of A1 iterated according to the

//range in the column 1 of A2

std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const size_type col )

inherited

Returns a read/write iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column to iterate.

Returns: begin col_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

//copy the elements of the column 0 of A1 in the column 1 of A2

std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

const_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const size_type col ) const

inherited

Returns a read-only iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column

Returns: begin const_col_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

//copy the elements of the column 0 of A1 in the column 1 of A2

std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end	(	const size_type	col,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: begin col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);

slip::Range<int> range(0,A1.dim1()-1,2);

//copy the elements of the column 0 of A1 iterated according to the

//range in the column 1 of A2

std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

const_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end	(	const size_type	col,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate

Returns: begin const_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);

slip::Range<int> range(0,A1.dim1()-1,2);

//copy the elements of the column 0 of A1 iterated according to the

//range in the column 1 of A2

std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end	(	const std::size_t	component,
		const std::size_t	col
	)

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns: end component_col_iterator value

const_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end	(	const std::size_t	component,
		const std::size_t	col
	)		const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns: const end component_col_iterator value

component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end	(	const std::size_t	component,
		const size_type	col,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: begin component_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);

slip::Range<int> range(0,A1.dim1()-1,2);

//copy the first component of the elements of the column 0 of A1 iterated according to the

//range in the column 1 of A2

std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

const_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end	(	const std::size_t	component,
		const size_type	col,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate

Returns: begin const_component_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);

slip::Range<int> range(0,A1.dim1()-1,2);

//copy the first component of the elements of the column 0 of A1 iterated according to the

//range in the column 1 of A2

std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const size_type col )

inherited

Returns a read/write reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns: begin col_reverse_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.

const_reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const size_type col ) const

inherited

Returns a read-only reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns: begin const_reverse_col_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.

reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin	(	const size_type	col,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: begin reverse_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin	(	const size_type	col,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: begin const_reverse_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin	(	const std::size_t	component,
		const std::size_t	col
	)

inherited

Returns a read/write iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order.

Parameters

component	The component number.
col	The col within the component.

Returns: begin reverse_component_col_iterator value.

const_reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin	(	const std::size_t	component,
		const std::size_t	col
	)		const

inherited

Returns a read-only (constant) iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order.

Parameters

component	The component number.
col	The col within the component.

Returns: const reverse_component_col_iterator value

reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin	(	const std::size_t	component,
		const size_type	col,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: begin reverse_component_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin	(	const std::size_t	component,
		const size_type	col,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: begin const_reverse_component_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const size_type col )

inherited

Returns a read/write reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns: end reverse_col_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.

const_reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const size_type col ) const

inherited

Returns a read-only reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns: end const_reverse_col_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.

reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend	(	const size_type	col,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: reverse_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend	(	const size_type	col,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: const_reverse_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend	(	const std::size_t	component,
		const std::size_t	col
	)

inherited

Returns a read/write iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

component	The component number.
col	The col within the component.

Returns: end component_col_iterator value

const_reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend	(	const std::size_t	component,
		const std::size_t	col
	)		const

inherited

Returns a read-only (constant) iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns: const end component_col_iterator value

reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend	(	const std::size_t	component,
		const size_type	col,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: reverse_component_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend	(	const std::size_t	component,
		const size_type	col,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns: const_reverse_component_col_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: col must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::cols ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::columns ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::dim1 ( ) const

inherited

Returns the number of rows (first dimension size) in the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::dim2 ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

bool slip::GenericMultiComponent2d< slip::Vector2d< T > >::empty ( ) const

inherited

Returns true if the GenericMultiComponent2d is empty. (Thus size() == 0)

iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::end ( )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns: end iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);

//copy the sum of the elements of A1 and A2 in S

std::transform(A1.begin(),A1.end(),

A2.begin(),S.begin(),

std::plus<slip::Vector2d<double> >());

const_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::end ( ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns: const end iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);

//copy the sum of the elements of A1 and A2 in S

std::transform(A1.begin(),A1.end(),

A2.begin(),S.begin(),

std::plus<slip::Vector2d<double> >());

component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::end ( const std::size_t component )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component The component number.

Returns: end component_iterator value

const_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::end ( const std::size_t component ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component The component number.

Returns: const end component_iterator value

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill ( const slip::Vector2d< T > & value )

inlineinherited

Fills the container range [begin(),begin()+size()) with copies of value.

Parameters

value A reference-to-const of arbitrary type.

Definition at line 3050 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill ( const typename slip::Vector2d< T > ::pointer value )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the value array.

Parameters

value A pointer of arbitrary type.

Definition at line 3061 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill ( const slip::Vector2d< T > * value )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the value array.

Parameters

value A pointer of arbitrary type.

Definition at line 3072 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill	(	InputIterator	first,
		InputIterator	last
	)

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last)

Parameters

first	An input iterator.
last	An input iterator.

Definition at line 3086 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill	(	std::vector< InputIterator >	first_iterators_list,
		InputIterator	last
	)

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last)

Parameters

first_iterators_list	An input iterator list.
last	An input iterator.

Definition at line 3101 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill	(	std::size_t	component,
		InputIterator	first,
		InputIterator	last
	)

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last)

Parameters

component	The component number.
first	An input iterator.
last	An input iterator.

Definition at line 3133 of file GenericMultiComponent2d.hpp.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::height ( ) const

inherited

Returns the height (first dimension size) in the GenericMultiComponent2d.

slip::Vector2d< T > slip::GenericMultiComponent2d< slip::Vector2d< T > >::max ( ) const

inherited

Returns the max elements of the GenericMultiComponent2d according to the operator <.

Precondition: size() != 0

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::max_size ( ) const

inherited

Returns the maximal size (number of elements) in the GenericMultiComponent2d.

slip::Vector2d< T > slip::GenericMultiComponent2d< slip::Vector2d< T > >::min ( ) const

inherited

Returns the min elements of the GenericMultiComponent2d according to the operator <.

Precondition: size() != 0

template<typename T >

std::string slip::DenseVector2dField2d< T >::name ( ) const

inline

Returns the name of the class.

Definition at line 1188 of file DenseVector2dField2d.hpp.

template<typename T >

DenseVector2dField2d< T >::norm_type slip::DenseVector2dField2d< T >::norm	(	const size_type	i,
		const size_type	j
	)		const

inline

Subscript access to a local norm contained in the DenseVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read_only (constant) reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1060 of file DenseVector2dField2d.hpp.

template<typename T>

template<typename Container2D >

void slip::DenseVector2dField2d< T >::norm ( Container2D & result )

inline

Computes Eucliean norm of each element in the field and write it to a Container2D.

Author: Benoit Tremblais <benoit.tremblais_AT_sic.univ-poitiers.fr>

Date: 2008/04/21

Version: 0.0.1

Parameters

result A Container2D which contain the norm of each element.

Definition at line 677 of file DenseVector2dField2d.hpp.

reference slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator()	(	const size_type	i,
		const size_type	j
	)

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read/write reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

const_reference slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator()	(	const size_type	i,
		const size_type	j
	)		const

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read_only (constant) reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

reference slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator() ( const Point2d< size_type > & point2d )

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

point2d A Point2d which indicate the subscripts of the data to access.

Returns: Read/write reference to data.

Precondition: point2d must be defined in the range of the GenericMultiComponent2d.

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

const_reference slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator() ( const Point2d< size_type > & point2d ) const

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

point2d A Point2d which indicate the subscripts of the data to access.

Returns: Read_only (constant) reference to data.

Precondition: point2d must be defined in the range of the GenericMultiComponent2d.

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

self slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator()	(	const Range< int > &	row_range,
		const Range< int > &	col_range
	)

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Returns: a copy of the range.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator*= ( const T & val )

inline

Definition at line 1085 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator*= ( const slip::Vector2d< T > & val )

inline

Definition at line 1119 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator*= ( const self & rhs )

inline

Definition at line 1166 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator+= ( const T & val )

inline

Add val to each element of the DenseVector2dField2d.

Parameters

val value

Returns: reference to the resulting DenseVector2dField2d

Definition at line 1051 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator+= ( const slip::Vector2d< T > & val )

inline

Add val to each element of the DenseVector2dField2d.

Parameters

val value

Returns: reference to the resulting DenseVector2dField2d

Definition at line 1103 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator+= ( const self & rhs )

inline

Definition at line 1146 of file DenseVector2dField2d.hpp.

template<typename T >

DenseVector2dField2d< T > slip::DenseVector2dField2d< T >::operator- ( ) const

inline

Definition at line 1137 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator-= ( const T & val )

inline

Definition at line 1077 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator-= ( const slip::Vector2d< T > & val )

inline

Definition at line 1111 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator-= ( const self & rhs )

inline

Definition at line 1156 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator/= ( const T & val )

inline

Definition at line 1093 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator/= ( const slip::Vector2d< T > & val )

inline

Definition at line 1127 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator/= ( const self & rhs )

inline

Definition at line 1176 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator= ( const slip::Vector2d< T > & val )

inline

Affects all the element of the DenseVector2dField2d by val.

Parameters

val	affectation value

Returns: reference to corresponding DenseVector2dField2d

Definition at line 967 of file DenseVector2dField2d.hpp.

template<typename T>

DenseVector2dField2d< T > & slip::DenseVector2dField2d< T >::operator= ( const T & val )

inline

Affects all the element of the DenseVector2dField2d by val.

Parameters

val	affectation value

Returns: reference to corresponding DenseVector2dField2d

Definition at line 976 of file DenseVector2dField2d.hpp.

pointer slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator[] ( const size_type i )

inherited

Subscript access to the row datas contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which data should be accessed.

Returns: Read/write pointer to the row data.

Precondition: i < rows()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

const_pointer slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator[] ( const size_type i ) const

inherited

Subscript access to the row datas contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which data should be accessed.

Returns: Read-only (constant) pointer to the row data.

Precondition: i < rows()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

reverse_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbegin ( )

inherited

Returns a read/write reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns: reverse begin iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);

//copy the sum of the elements of A1 and A2

//in S (iterated in the reverse order element)

std::transform(A1.begin(),A1.end(),

A2.begin(),S.rbegin(),

std::plus<slip::Vector2d<double> >());

const_reverse_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbegin ( ) const

inherited

Returns a read-only (constant) reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns: const reverse begin iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);

//copy the sum of the elements of A1 (iterated in the reverse order element)

//and A2 in S

std::transform(A1.rbegin(),A1.rend(),

A2.begin(),S.begin(),

std::plus<slip::Vector2d<double> >());

reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbegin ( const std::size_t component )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component The component number.

Returns: begin reverse_component_iterator value

const_reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbegin ( const std::size_t component ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component The component number.

Returns: const begin reverse_component_iterator value

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( )

inherited

Returns a read/write reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Returns: reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( ) const

inherited

Returns a read only reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Returns: const reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Box2d< int > & box )

inherited

Returns a read/write reverse iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns: reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Box2d< int > & box ) const

inherited

Returns a read-only reverse iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns: const reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right	(	const Range< int > &	row_range,
		const Range< int > &	col_range
	)

inherited

Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right	(	const Range< int > &	row_range,
		const Range< int > &	col_range
	)		const

inherited

Returns a read-only reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Range< int > & range )

inherited

Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range The range of the rows and the cols.

Precondition: range must be valid.; The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Range< int > & range ) const

inherited

Returns a read_only reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range The range of the rows and the cols.

Precondition: range must be valid.; The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const std::size_t component )

inherited

Returns a read/write reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component The component number.

Returns: reverse component iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const std::size_t component ) const

inherited

Returns a read only reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component The component number.

Returns: const reverse component iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right	(	const std::size_t	component,
		const Box2d< int > &	box
	)

inherited

Returns a read/write reverse component iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns: reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right	(	const std::size_t	component,
		const Box2d< int > &	box
	)		const

inherited

Returns a read-only reverse component iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns: const reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right	(	const std::size_t	component,
		const Range< int > &	row_range,
		const Range< int > &	col_range
	)

inherited

Returns a read/write reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right	(	const std::size_t	component,
		const Range< int > &	row_range,
		const Range< int > &	col_range
	)		const

inherited

Returns a read-only reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

template<typename T >

void slip::DenseVector2dField2d< T >::read_gnuplot ( const std::string & file_path_name )

inline

Reads a DenseVector2dField2d from a gnuplot file path name.

Parameters

file_path_name

Data format:: x y U(x,y) V(x,y)

Remarks: x = j and y = (dim1 - 1) - i

Definition at line 1211 of file DenseVector2dField2d.hpp.

template<typename T >

void slip::DenseVector2dField2d< T >::read_tecplot ( const std::string & file_path_name )

inline

Reads a DenseVector2dField2d from a tecplot file path name.

Parameters

file_path_name

Data format:

TITLE= title

VARIABLES= X Y U V

ZONE T= zone, I= rows(), J= << cols()

x y U(x,y) V(x,y)

Remarks: x = j and y = (dim1 - 1) - i

Definition at line 1218 of file DenseVector2dField2d.hpp.

reverse_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rend ( )

inherited

Returns a read/write reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns: reverse end iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);

//copy the sum of the elements of A1 and A2

//in S (iterated in the reverse order element)

std::transform(A1.begin(),A1.end(),

A2.begin(),S.rbegin(),

std::plus<slip::Vector2d<double> >());

const_reverse_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rend ( ) const

inherited

Returns a read-only (constant) reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns: const reverse end iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);

//copy the sum of the elements of A1 (iterated in the reverse order element)

//and A2 in S

std::transform(A1.rbegin(),A1.rend(),

A2.begin(),S.begin(),

std::plus<slip::Vector2d<double> >());

reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rend ( const std::size_t component )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component The component number.

Returns: end reverse_component_iterator value

const_reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rend ( const std::size_t component ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component The component number.

Returns: const end reverse_component_iterator value

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::resize	(	const size_type	height,
		const size_type	width,
		const slip::Vector2d< T > &	val = `Block()`
	)

inherited

Resizes a GenericMultiComponent2d.

Parameters

height	new first dimension
width	new second dimension
val	new value for all the elements

row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const size_type row )

inherited

Returns a read/write iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns: begin row_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

//copy the elements of the row 0 of A1 in the row 1 of A2

std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

const_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const size_type row ) const

inherited

Returns a read-only iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns: begin const_row_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

//copy the elements of the row 0 of A1 in the row 1 of A2

std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin	(	const size_type	row,
		const slip::Range< int > &	range
	)

inherited

Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: begin row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the elements of the row 0 of A1 iterated according to the

//range in the row 1 of A2

std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

const_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin	(	const size_type	row,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: begin const_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the elements of the row 0 of A1 iterated according to the

//range in the row 1 of A2

std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin	(	const std::size_t	component,
		const std::size_t	row
	)

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns: begin component_row_iterator value.

const_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin	(	const std::size_t	component,
		const std::size_t	row
	)		const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns: const begin component_row_iterator value

component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin	(	const std::size_t	component,
		const size_type	row,
		const slip::Range< int > &	range
	)

inherited

Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: begin component_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the first component of the elements of the row 0 of A1 iterated according to the

//range in the row 1 of A2

std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

const_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin	(	const std::size_t	component,
		const size_type	row,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: begin const_component_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the first component of the elements of the row 0 of A1 iterated according to the

//range in the row 1 of A2

std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const size_type row )

inherited

Returns a read/write iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns: begin row_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

//copy the elements of the row 0 of A1 in the row 1 of A2

std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

const_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const size_type row ) const

inherited

Returns a read-only iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns: begin const_row_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);

//copy the elements of the row 0 of A1 in the row 1 of A2

std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end	(	const size_type	row,
		const slip::Range< int > &	range
	)

inherited

Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: end row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the elements of the row 0 of A1 iterated according to the

//range in the row 1 of A2

std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

const_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end	(	const size_type	row,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	Row to iterate.
range	Range of the row to iterate

Returns: begin const_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the elements of the row 0 of A1 iterated according to the

//range in the row 1 of A2

std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end	(	const std::size_t	component,
		const std::size_t	row
	)

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns: end component_row_iterator value

const_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end	(	const std::size_t	component,
		const std::size_t	row
	)		const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns: const end component_row_iterator value

component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end	(	const std::size_t	component,
		const size_type	row,
		const slip::Range< int > &	range
	)

inherited

Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: end component_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the first component of the elements of the row 0 of A1 iterated according to the

//range in the row 1 of A2

std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

const_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end	(	const std::size_t	component,
		const size_type	row,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	Row to iterate.
range	Range of the row to iterate

Returns: begin const_component_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the first component of the elements of the row 0 of A1 iterated according to the

//range in the row 1 of A2

std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const size_type row )

inherited

Returns a read/write reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns: begin reverse_row_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.

const_reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const size_type row ) const

inherited

Returns a read-only reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns: begin const_reverse_row_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.

reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin	(	const size_type	row,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: reverse_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin	(	const size_type	row,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate

Returns: begin const_reverse_row_range_iterator value

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin	(	const std::size_t	component,
		const std::size_t	row
	)

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns: reverse begin component_row_iterator value.

const_reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin	(	const std::size_t	component,
		const std::size_t	row
	)		const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns: const reverse begin component_row_iterator value

reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin	(	const std::size_t	component,
		const size_type	row,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: reverse_component_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin	(	const std::size_t	component,
		const size_type	row,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate

Returns: begin const_reverse_component_row_range_iterator value

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const size_type row )

inherited

Returns a read/write reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns: end reverse_row_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.

const_reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const size_type row ) const

inherited

Returns a read-only reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns: end const_reverse_row_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.

reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend	(	const size_type	row,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: reverse_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend	(	const size_type	row,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate

Returns: const_reverse_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend	(	const std::size_t	component,
		const std::size_t	row
	)

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns: end reverse component_row_iterator value

const_reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend	(	const std::size_t	component,
		const std::size_t	row
	)		const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns: const reverse end component_row_iterator value

reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend	(	const std::size_t	component,
		const size_type	row,
		const slip::Range< int > &	range
	)

inherited

Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns: reverse_component_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend	(	const std::size_t	component,
		const size_type	row,
		const slip::Range< int > &	range
	)		const

inherited

Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate

Returns: const_reverse_component_row_range_iterator value

Remarks: This iterator is compatible with RandomAccessIterator algorithms.

Precondition: row must be compatible with the range of the GenericMultiComponent2d.; The range must be inside the whole range of the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::rows ( ) const

inherited

Returns the number of rows (first dimension size) in the GenericMultiComponent2d.

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( )

inherited

Returns a read/write reverse iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Returns: reverse_iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( ) const

inherited

Returns a read only reverse iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Returns: const_reverse_iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Box2d< int > & box )

inherited

Returns a read/write reverse iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns: reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Box2d< int > & box ) const

inherited

Returns a read only reverse iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns: const reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left	(	const Range< int > &	row_range,
		const Range< int > &	col_range
	)

inherited

Returns a read/write reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left	(	const Range< int > &	row_range,
		const Range< int > &	col_range
	)		const

inherited

Returns a read-only reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Range< int > & range )

inherited

Returns a read/write reverse_iterator2d_range that points to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range The range of the rows and the cols.

Precondition: range and must be valid.; The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Range< int > & range ) const

inherited

Returns a read-only reverse_iterator2d_range that points to the to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range The range of the rows and the cols.

Precondition: range must be valid.; The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const std::size_t component )

inherited

Returns a read/write reverse component iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Parameters

component The component number.

Returns: reverse_component_iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const std::size_t component ) const

inherited

Returns a read only reverse component iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Parameters

component The component number.

Returns: const_reverse_component_iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left	(	const std::size_t	component,
		const Box2d< int > &	box
	)

inherited

Returns a read/write reverse component iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns: reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left	(	const std::size_t	component,
		const Box2d< int > &	box
	)		const

inherited

Returns a read only reverse component iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns: const reverse iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left	(	const std::size_t	component,
		const Range< int > &	row_range,
		const Range< int > &	col_range
	)

inherited

Returns a read/write reverse component iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left	(	const std::size_t	component,
		const Range< int > &	row_range,
		const Range< int > &	col_range
	)		const

inherited

Returns a read-only reverse_component_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_reverse_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::size ( ) const

inherited

Returns the number of elements in the GenericMultiComponent2d.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::swap ( self & M )

inherited

Swaps data with another GenericMultiComponent2d.

Parameters

M	A GenericMultiComponent2d of the same element type

template<typename T >

T & slip::DenseVector2dField2d< T >::u	(	const size_type	i,
		const size_type	j
	)

inline

Subscript access to first element of the data contained in the DenseVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read/write reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1001 of file DenseVector2dField2d.hpp.

template<typename T >

const T & slip::DenseVector2dField2d< T >::u	(	const size_type	i,
		const size_type	j
	)		const

inline

Subscript access to the first element of the data contained in the DenseVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read_only (constant) reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1009 of file DenseVector2dField2d.hpp.

iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( )

inherited

Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Returns: begin iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);

//copy the elements of A1 in A2

std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( ) const

inherited

Returns a read-only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Returns: begin const iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);

//copy the elements of A1 in A2

std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Box2d< int > & box )

inherited

Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Returns: end iterator2d value

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);

slip::Box2d<int> box(1,1,3,2);

//copy the elements of A1 inside the box which upper_left element

//is located in (1,1) and the bottom right element is in (3,2)

std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Box2d< int > & box ) const

inherited

Returns a read only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns: end const iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);

slip::Box2d<int> box(1,1,3,2);

//copy the elements of A1 inside the box which upper_left element

//is located in (1,1) and the bottom right element is in (3,2)

std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left	(	const Range< int > &	row_range,
		const Range< int > &	col_range
	)

inherited

Returns a read/write iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);

slip::Range<int> row_range(0,A1.dim2()-1,2);

slip::Range<int> col_range(0,A1.dim1()-1,2);

//copy the elements of A1 within the ranges row_range and col_range

//in A2

std::copy(A1.upper_left(row_range,col_range),

A1.bottom_right(row_range,col_range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left	(	const Range< int > &	row_range,
		const Range< int > &	col_range
	)		const

inherited

Returns a read-only iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);

slip::Range<int> row_range(0,A1.dim2()-1,2);

slip::Range<int> col_range(0,A1.dim1()-1,2);

//copy the elements of A1 within the ranges row_range and col_range

//in A2

std::copy(A1.upper_left(row_range,col_range),

A1.bottom_right(row_range,col_range),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Range< int > & range )

inherited

Returns a read/write iterator2d_range that points to the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols.

Parameters

range The range of the rows and the cols.

Precondition: range and must be valid.; The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the elements of A1 within the range range

//in A2

std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Range< int > & range ) const

inherited

Returns a read-only iterator2d_range that points to the to the upper left element of the Range range associated to the GenericMultiComponent2d.

Parameters

range The range of the rows and the cols.

Precondition: range must be valid.; The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Example:: slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);

slip::Range<int> range(0,A1.dim2()-1,2);

//copy the elements of A1 within the range range

//in A2

std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const std::size_t component )

inherited

Returns a read/write component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Parameters

component The component number.

Returns: begin iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.
slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);

slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);

//copy the first component of the elements of A1 in A2

std::copy(A1.upper_left(0),A1.bottom_right(0),A2.upper_left(0));

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const std::size_t component ) const

inherited

Returns a read only const_component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Parameters

component The component number.

Returns: begin iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left	(	const std::size_t	component,
		const Box2d< int > &	box
	)

inherited

Returns a read/write component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Returns: end iterator2d value

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left	(	const std::size_t	component,
		const Box2d< int > &	box
	)		const

inherited

Returns a read only component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns: end const iterator2d value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

Precondition: The box indices must be inside the range of the GenericMultiComponent2d ones.

component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left	(	const std::size_t	component,
		const Range< int > &	row_range,
		const Range< int > &	col_range
	)

inherited

Returns a read/write component iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

const_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left	(	const std::size_t	component,
		const Range< int > &	row_range,
		const Range< int > &	col_range
	)		const

inherited

Returns a read-only component iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition: row_range and col_range must be valid.; The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns: const_iterator2d_range value

Remarks: This iterator is compatible with BidirectionalIterator algorithms.

template<typename T >

T & slip::DenseVector2dField2d< T >::v	(	const size_type	i,
		const size_type	j
	)

inline

Subscript access to second element of the data contained in the DenseVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read/write reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1035 of file DenseVector2dField2d.hpp.

template<typename T >

const T & slip::DenseVector2dField2d< T >::v	(	const size_type	i,
		const size_type	j
	)		const

inline

Subscript access to second element of the data contained in the DenseVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read_only (constant) reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1043 of file DenseVector2dField2d.hpp.

template<typename T >

T & slip::DenseVector2dField2d< T >::Vx1	(	const size_type	i,
		const size_type	j
	)

inline

Subscript access to first element of the data contained in the DenseVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read/write reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 985 of file DenseVector2dField2d.hpp.

template<typename T >

const T & slip::DenseVector2dField2d< T >::Vx1	(	const size_type	i,
		const size_type	j
	)		const

inline

Subscript access to the data contained in the DenseVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read_only (constant) reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 993 of file DenseVector2dField2d.hpp.

template<typename T >

T & slip::DenseVector2dField2d< T >::Vx2	(	const size_type	i,
		const size_type	j
	)

inline

Subscript access to second element of the data contained in the DenseVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read/write reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1018 of file DenseVector2dField2d.hpp.

template<typename T >

const T & slip::DenseVector2dField2d< T >::Vx2	(	const size_type	i,
		const size_type	j
	)		const

inline

Subscript access to the data contained in the DenseVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns: Read_only (constant) reference to data.

Precondition: i < rows(); j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1026 of file DenseVector2dField2d.hpp.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::width ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

template<typename T >

void slip::DenseVector2dField2d< T >::write_gnuplot ( const std::string & file_path_name )

inline

Writes a DenseVector2dField2d to a gnuplot file path name.

Parameters

file_path_name

Data format:: x y U(x,y) V(x,y)

Remarks: x = j and y = (dim1 - 1) - i

Definition at line 1193 of file DenseVector2dField2d.hpp.

template<typename T >

void slip::DenseVector2dField2d< T >::write_tecplot	(	const std::string &	file_path_name,
		const std::string &	title,
		const std::string &	zone
	)

inline

Writes a DenseVector2dField2d to a tecplot file path name.

Parameters

file_path_name
title
zone

Data format:

TITLE= title

VARIABLES= X Y U V

ZONE T= zone, I= rows(), J= << cols()

x y U(x,y) V(x,y)

Remarks: x = j and y = (dim1 - 1) - i

Definition at line 1200 of file DenseVector2dField2d.hpp.

Friends And Related Function Documentation

template<typename T>

friend class boost::serialization::access

friend

Definition at line 703 of file DenseVector2dField2d.hpp.

Member Data Documentation

const std::size_t slip::GenericMultiComponent2d< slip::Vector2d< T > >::COMPONENTS

staticinherited

Definition at line 284 of file GenericMultiComponent2d.hpp.

template<typename T>

const std::size_t slip::DenseVector2dField2d< T >::DIM = 2

static

Definition at line 205 of file DenseVector2dField2d.hpp.

The documentation for this class was generated from the following file:

src/Container/DenseVector2dField2d.hpp

Public Types

Public Member Functions

Static Public Attributes

Friends

Detailed Description

template<typename T> class slip::DenseVector2dField2d< T >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<typename T>
class slip::DenseVector2dField2d< T >
