slip::RegularVector2dField2d< T, GridT > Class Template Reference

This is a 2d Field containing slip::Vector2d associated with a regular grid. This container statisfies the BidirectionnalContainer concepts of the STL. It is also an 2d extension of the RandomAccessContainer concept. That is to say the bracket element access is replaced by the double bracket element access. It is a specialization of GenericMultiComponent2d using Vector2d blocks. It implements arithmetic and mathematical operators (divergence, vorticity, derivative...) and read/write methods (tecplot and gnuplot file format). The points of the Vector field grid are assumed to be spaced by two regular steps. The inital point (closest point from the physical axis origin) of the grid is also stored within the data structure. More...

#include <RegularVector2dField2d.hpp>

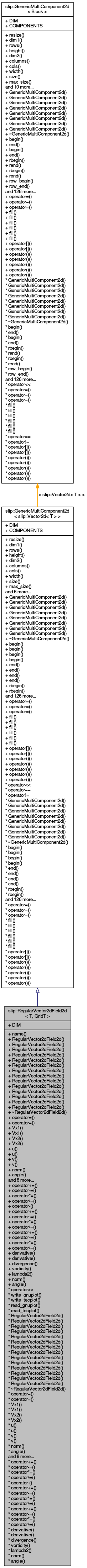

Inheritance diagram for slip::RegularVector2dField2d< T, GridT >:

Public Types
typedef slip::Vector2d< T >	value_type
typedef RegularVector2dField2d < T, GridT >	self
typedef const RegularVector2dField2d< T, GridT >	const_self
typedef GenericMultiComponent2d < slip::Vector2d< T > >	base
typedef value_type *	pointer
typedef const value_type *	const_pointer
typedef value_type &	reference
typedef const value_type &	const_reference
typedef ptrdiff_t	difference_type
typedef std::size_t	size_type
typedef pointer	iterator
typedef const_pointer	const_iterator
typedef std::reverse_iterator < iterator >	reverse_iterator
typedef std::reverse_iterator < const_iterator >	const_reverse_iterator
typedef pointer	row_iterator
typedef const_pointer	const_row_iterator
typedef slip::stride_iterator < pointer >	col_iterator
typedef slip::stride_iterator < const_pointer >	const_col_iterator
typedef std::reverse_iterator < iterator >	reverse_row_iterator
typedef std::reverse_iterator < const_iterator >	const_reverse_row_iterator
typedef std::reverse_iterator < col_iterator >	reverse_col_iterator
typedef std::reverse_iterator < const_col_iterator >	const_reverse_col_iterator
typedef slip::GenericMultiComponent2d < slip::Vector2d< T > >::iterator2d	iterator2d
typedef slip::GenericMultiComponent2d < slip::Vector2d< T > >::const_iterator2d	const_iterator2d
typedef T	vector2d_value_type
typedef GridT	grid_value_type
typedef vector2d_value_type *	vector2d_pointer
typedef const vector2d_value_type *	const_vector2d_pointer
typedef vector2d_value_type &	vector2d_reference
typedef const vector2d_value_type	const_vector2d_reference
typedef slip::kstride_iterator < vector2d_pointer, 2 >	vector2d_iterator
typedef slip::kstride_iterator < const_vector2d_pointer, 2 >	const_vector2d_iterator
typedef slip::lin_alg_traits < value_type >::value_type	norm_type
typedef slip::stride_iterator < pointer >	row_range_iterator
typedef slip::stride_iterator < const_pointer >	const_row_range_iterator
typedef slip::stride_iterator < col_iterator >	col_range_iterator
typedef slip::stride_iterator < const_col_iterator >	const_col_range_iterator
typedef slip::Matrix < slip::Vector2d< T > >::iterator2d_range	iterator2d_range
typedef slip::Matrix < slip::Vector2d< T > >::const_iterator2d_range	const_iterator2d_range
typedef slip::Vector2d< T > ::value_type	block_value_type
typedef block_value_type *	block_pointer
typedef const block_value_type *	const_block_pointer
typedef block_value_type &	block_reference
typedef const block_value_type	const_block_reference
typedef slip::kstride_iterator < typename slip::Vector2d< T > ::pointer, slip::Vector2d< T > ::SIZE >	component_iterator
typedef slip::kstride_iterator < typename slip::Vector2d< T > ::const_pointer, slip::Vector2d< T >::SIZE >	const_component_iterator
typedef std::reverse_iterator < iterator2d >	reverse_iterator2d
typedef std::reverse_iterator < const_iterator2d >	const_reverse_iterator2d
typedef std::reverse_iterator < row_range_iterator >	reverse_row_range_iterator
typedef std::reverse_iterator < const_row_range_iterator >	const_reverse_row_range_iterator
typedef std::reverse_iterator < col_range_iterator >	reverse_col_range_iterator
typedef std::reverse_iterator < const_col_range_iterator >	const_reverse_col_range_iterator
typedef std::reverse_iterator < iterator2d_range >	reverse_iterator2d_range
typedef std::reverse_iterator < const_iterator2d_range >	const_reverse_iterator2d_range
typedef std::reverse_iterator < component_iterator >	reverse_component_iterator
typedef std::reverse_iterator < const_component_iterator >	const_reverse_component_iterator
typedef component_iterator	component_row_iterator
typedef const_component_iterator	const_component_row_iterator
typedef slip::stride_iterator < block_pointer >	component_row_range_iterator
typedef slip::stride_iterator < const_block_pointer >	const_component_row_range_iterator
typedef std::reverse_iterator < component_row_iterator >	reverse_component_row_iterator
typedef std::reverse_iterator < const_component_row_iterator >	const_reverse_component_row_iterator
typedef std::reverse_iterator < component_row_range_iterator >	reverse_component_row_range_iterator
typedef std::reverse_iterator < const_component_row_range_iterator >	const_reverse_component_row_range_iterator
typedef slip::stride_iterator < block_pointer >	component_col_iterator
typedef slip::stride_iterator < const_block_pointer >	const_component_col_iterator
typedef slip::stride_iterator < block_pointer >	component_col_range_iterator
typedef slip::stride_iterator < const_block_pointer >	const_component_col_range_iterator
typedef std::reverse_iterator < component_col_iterator >	reverse_component_col_iterator
typedef std::reverse_iterator < const_component_col_iterator >	const_reverse_component_col_iterator
typedef std::reverse_iterator < component_col_range_iterator >	reverse_component_col_range_iterator
typedef std::reverse_iterator < const_component_col_range_iterator >	const_reverse_component_col_range_iterator
typedef slip::component_iterator2d_box < self, slip::Vector2d< T > ::SIZE >	component_iterator2d
typedef std::reverse_iterator < component_iterator2d >	reverse_component_iterator2d
typedef slip::const_component_iterator2d_box < const_self, slip::Vector2d < T >::SIZE >	const_component_iterator2d
typedef std::reverse_iterator < const_component_iterator2d >	const_reverse_component_iterator2d
typedef slip::component_iterator2d_range < self, slip::Vector2d< T > ::SIZE >	component_iterator2d_range
typedef std::reverse_iterator < component_iterator2d_range >	reverse_component_iterator2d_range
typedef slip::const_component_iterator2d_range < const_self, slip::Vector2d < T >::SIZE >	const_component_iterator2d_range
typedef std::reverse_iterator < const_component_iterator2d_range >	const_reverse_component_iterator2d_range
typedef iterator2d	default_iterator
typedef const_iterator2d	const_default_iterator

Public Member Functions
std::string	name () const
	Returns the name of the class. More...
void	resize (const size_type height, const size_type width, const slip::Vector2d< T > &val=slip::Vector2d< T >())
	Resizes a GenericMultiComponent2d. More...
size_type	dim1 () const
	Returns the number of rows (first dimension size) in the GenericMultiComponent2d. More...
size_type	rows () const
	Returns the number of rows (first dimension size) in the GenericMultiComponent2d. More...
size_type	height () const
	Returns the height (first dimension size) in the GenericMultiComponent2d. More...
size_type	dim2 () const
	Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...
size_type	columns () const
	Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...
size_type	cols () const
	Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...
size_type	width () const
	Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...
size_type	size () const
	Returns the number of elements in the GenericMultiComponent2d. More...
size_type	max_size () const
	Returns the maximal size (number of elements) in the GenericMultiComponent2d. More...
bool	empty () const
	Returns true if the GenericMultiComponent2d is empty. (Thus size() == 0) More...
void	swap (self &M)
	Swaps data with another GenericMultiComponent2d. More...
slip::Vector2d< T >	min () const
	Returns the min elements of the GenericMultiComponent2d according to the operator <. More...
slip::Vector2d< T >	max () const
	Returns the max elements of the GenericMultiComponent2d according to the operator <. More...
GenericMultiComponent2d < slip::Vector2d< T > > &	apply (slip::Vector2d< T >(*fun)(slip::Vector2d< T >))
	Returns the sums of the elements of the GenericMultiComponent2d. More...
GenericMultiComponent2d < slip::Vector2d< T > > &	apply (slip::Vector2d< T >(*fun)(const slip::Vector2d< T > &))
	Applys the one-parameter C-function fun to each element of the GenericMultiComponent2d. More...
Constructors & Destructors
Regular Field Vector manipulation
	RegularVector2dField2d ()
	Constructs a RegularVector2dField2d. More...
	RegularVector2dField2d (const size_type height, const size_type width)
	Constructs a RegularVector2dField2d. More...
	RegularVector2dField2d (const size_type height, const size_type width, const slip::Point2d< GridT > &init_point, const slip::Point2d< GridT > &grid_step)
	Constructs a RegularVector2dField2d. More...
	RegularVector2dField2d (const size_type height, const size_type width, const slip::Vector2d< T > &val)
	Constructs a RegularVector2dField2d initialized by the scalar value val. More...
	RegularVector2dField2d (const size_type height, const size_type width, const slip::Point2d< GridT > &init_point, const slip::Point2d< GridT > &grid_step, const slip::Vector2d< T > &val)
	Constructs a RegularVector2dField2d initialized by the scalar value val. More...
	RegularVector2dField2d (const size_type height, const size_type width, const T *val)
	Constructs a RegularVector2dField2d initialized by an array val. More...
	RegularVector2dField2d (const size_type height, const size_type width, const slip::Point2d< GridT > &init_point, const slip::Point2d< GridT > &grid_step, const T *val)
	Constructs a RegularVector2dField2d initialized by an array val. More...
	RegularVector2dField2d (const size_type height, const size_type width, const slip::Vector2d< T > *val)
	Constructs a RegularVector2dField2d initialized by an array val. More...
	RegularVector2dField2d (const size_type height, const size_type width, const slip::Point2d< GridT > &init_point, const slip::Point2d< GridT > &grid_step, const slip::Vector2d< T > *val)
	Constructs a RegularVector2dField2d initialized by an array val. More...
template<typename InputIterator >
	RegularVector2dField2d (const size_type height, const size_type width, InputIterator first, InputIterator last)
	Contructs a RegularVector2dField2d from a range. More...
template<typename InputIterator >
	RegularVector2dField2d (const size_type height, const size_type width, const slip::Point2d< GridT > &init_point, const slip::Point2d< GridT > &grid_step, InputIterator first, InputIterator last)
	Contructs a RegularVector2dField2d from a range. More...
template<typename InputIterator >
	RegularVector2dField2d (const size_type height, const size_type width, InputIterator first1, InputIterator last1, InputIterator first2)
	Contructs a RegularVector2dField2d from a 2 ranges. More...
template<typename InputIterator >
	RegularVector2dField2d (const size_type height, const size_type width, const slip::Point2d< GridT > &init_point, const slip::Point2d< GridT > &grid_step, InputIterator first1, InputIterator last1, InputIterator first2)
	Contructs a RegularVector2dField2d from a 2 ranges. More...
	RegularVector2dField2d (const self &rhs)
	Constructs a copy of the RegularVector2dField2d rhs. More...
	~RegularVector2dField2d ()
	Destructor of the RegularVector2dField2d. More...
Assignment operators and methods
self &	operator= (const slip::Vector2d< T > &val)
	Affects all the element of the RegularVector2dField2d by val. More...
self &	operator= (const T &val)
	Affects all the element of the RegularVector2dField2d by val. More...
Element access operators
T &	Vx1 (const size_type i, const size_type j)
	Subscript access to first element of the data contained in the RegularVector2dField2d. More...
const T &	Vx1 (const size_type i, const size_type j) const
	Subscript access to the data contained in the RegularVector2dField2d. More...
T &	Vx2 (const size_type i, const size_type j)
	Subscript access to second element of the data contained in the RegularVector2dField2d. More...
const T &	Vx2 (const size_type i, const size_type j) const
	Subscript access to second element of the data contained in the RegularVector2dField2d. More...
T &	u (const size_type i, const size_type j)
	Subscript access to first element of the data contained in the RegularVector2dField2d. More...
const T &	u (const size_type i, const size_type j) const
	Subscript access to the first element of the data contained in the RegularVector2dField2d. More...
T &	v (const size_type i, const size_type j)
	Subscript access to second element of the data contained in the RegularVector2dField2d. More...
const T &	v (const size_type i, const size_type j) const
	Subscript access to second element of the data contained in the RegularVector2dField2d. More...
norm_type	norm (const size_type i, const size_type j) const
	Subscript access to a local norm contained in the RegularVector2dField2d. More...
norm_type	angle (const size_type i, const size_type j) const
	Subscript access to a local angle contained in the RegularVector2dField2d. The result is a radian between the range [-PI,PI]. More...
const GridT	x1 (const size_type i, const size_type j) const
	Subscript access to the real x1 value of the indexed (i,j) point of the RegularVector2dField2d. More...
const GridT	x2 (const size_type i, const size_type j) const
	Subscript access to the real x2 value of the indexed (i,j) point of the RegularVector2dField2d. More...
const GridT	x (const size_type i, const size_type j) const
	Subscript access to the real x1 value of the indexed (i,j) point of the RegularVector2dField2d. More...
const GridT	y (const size_type i, const size_type j) const
	Subscript access to the real x2 value of the indexed (i,j) point of the RegularVector2dField2d. More...
void	set_init_point (const slip::Point2d< GridT > &init_point)
	Write access to the init point of the grid. More...
const slip::Point2d< GridT > &	get_init_point () const
	Read access to the init point of the grid. More...
void	set_grid_step (const slip::Point2d< GridT > &grid_step)
	Write access to the grid step of the grid. More...
const slip::Point2d< GridT > &	get_grid_step () const
	Read access to the init point of the grid. More...
Arithmetic operators
self &	operator+= (const T &val)
	Add val to each element of the RegularVector2dField2d. More...
self &	operator-= (const T &val)
self &	operator*= (const T &val)
self &	operator/= (const T &val)
self	operator- () const
self &	operator+= (const slip::Vector2d< T > &val)
	Add val to each element of the RegularVector2dField2d. More...
self &	operator-= (const slip::Vector2d< T > &val)
self &	operator*= (const slip::Vector2d< T > &val)
self &	operator/= (const slip::Vector2d< T > &val)
self &	operator+= (const self &rhs)
self &	operator-= (const self &rhs)
self &	operator*= (const self &rhs)
self &	operator/= (const self &rhs)
Mathematical operators
template<typename Container2D >
void	derivative (const std::size_t component, const slip::SPATIAL_DIRECTION der_dir, const std::size_t der_order, const std::size_t sch_order, Container2D &result) const
	Computes finite differences derivatives of a RegularVector2dField2d. More...
template<typename Container2D >
void	derivative (const std::size_t component, const slip::SPATIAL_DIRECTION der_dir, const std::size_t der_order, const std::size_t sch_order, const slip::Box2d< int > box, Container2D &result) const
	Computes finite differences derivatives of a RegularVector2dField2d. More...
template<typename Container2D >
void	divergence (const std::size_t sch_order, Container2D &result) const
	Computes finite differences divergence of a RegularVector2dField2d. More...
template<typename Container2D >
void	vorticity (const std::size_t sch_order, Container2D &result) const
	Computes finite differences vorticity (curl) of a RegularVector2dField2d. More...
template<typename Container2D >
void	lambda2 (const std::size_t sch_order, Container2D &result)
	Computes finite differences lambda2 of a RegularVector2dField2d. More...
template<typename Container2D >
void	norm (Container2D &result)
	Computes Eucliean norm of each element in the field and write it to a Container2D. More...
template<typename Container2D >
void	angle (Container2D &result)
	Computes angle (radian) of each element with the cartesian axis and write it to a Container2D. More...
iterators
iterator	begin ()
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_iterator	begin () const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_iterator	begin (const std::size_t component)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_iterator	begin (const std::size_t component) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
iterator	end ()
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_iterator	end () const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_iterator	end (const std::size_t component)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_iterator	end (const std::size_t component) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_iterator	rbegin ()
	Returns a read/write reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
const_reverse_iterator	rbegin () const
	Returns a read-only (constant) reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
reverse_component_iterator	rbegin (const std::size_t component)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_reverse_component_iterator	rbegin (const std::size_t component) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_iterator	rend ()
	Returns a read/write reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
const_reverse_iterator	rend () const
	Returns a read-only (constant) reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
reverse_component_iterator	rend (const std::size_t component)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_reverse_component_iterator	rend (const std::size_t component) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
row_iterator	row_begin (const size_type row)
	Returns a read/write iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_row_iterator	row_begin (const size_type row) const
	Returns a read-only iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
row_range_iterator	row_begin (const size_type row, const slip::Range< int > &range)
	Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_row_range_iterator	row_begin (const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
component_row_iterator	row_begin (const std::size_t component, const std::size_t row)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_row_iterator	row_begin (const std::size_t component, const std::size_t row) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_row_range_iterator	row_begin (const std::size_t component, const size_type row, const slip::Range< int > &range)
	Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_component_row_range_iterator	row_begin (const std::size_t component, const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
row_iterator	row_end (const size_type row)
	Returns a read/write iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_row_iterator	row_end (const size_type row) const
	Returns a read-only iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
row_range_iterator	row_end (const size_type row, const slip::Range< int > &range)
	Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_row_range_iterator	row_end (const size_type row, const slip::Range< int > &range) const
	Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
component_row_iterator	row_end (const std::size_t component, const std::size_t row)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_row_iterator	row_end (const std::size_t component, const std::size_t row) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_row_range_iterator	row_end (const std::size_t component, const size_type row, const slip::Range< int > &range)
	Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_component_row_range_iterator	row_end (const std::size_t component, const size_type row, const slip::Range< int > &range) const
	Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
col_iterator	col_begin (const size_type col)
	Returns a read/write iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...
const_col_iterator	col_begin (const size_type col) const
	Returns a read-only iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...
col_range_iterator	col_begin (const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_col_range_iterator	col_begin (const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
component_col_iterator	col_begin (const std::size_t component, const std::size_t col)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_col_iterator	col_begin (const std::size_t component, const std::size_t col) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_col_range_iterator	col_begin (const std::size_t component, const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_component_col_range_iterator	col_begin (const std::size_t component, const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
col_iterator	col_end (const size_type col)
	Returns a read/write iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...
const_col_iterator	col_end (const size_type col) const
	Returns a read-only iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...
col_range_iterator	col_end (const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_col_range_iterator	col_end (const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
component_col_iterator	col_end (const std::size_t component, const std::size_t col)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_col_iterator	col_end (const std::size_t component, const std::size_t col) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_col_range_iterator	col_end (const std::size_t component, const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_component_col_range_iterator	col_end (const std::size_t component, const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
reverse_row_iterator	row_rbegin (const size_type row)
	Returns a read/write reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
const_reverse_row_iterator	row_rbegin (const size_type row) const
	Returns a read-only reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
reverse_row_range_iterator	row_rbegin (const size_type row, const slip::Range< int > &range)
	Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_row_range_iterator	row_rbegin (const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_component_row_iterator	row_rbegin (const std::size_t component, const std::size_t row)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_reverse_component_row_iterator	row_rbegin (const std::size_t component, const std::size_t row) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_component_row_range_iterator	row_rbegin (const std::size_t component, const size_type row, const slip::Range< int > &range)
	Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_component_row_range_iterator	row_rbegin (const std::size_t component, const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_row_iterator	row_rend (const size_type row)
	Returns a read/write reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
const_reverse_row_iterator	row_rend (const size_type row) const
	Returns a read-only reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
reverse_row_range_iterator	row_rend (const size_type row, const slip::Range< int > &range)
	Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_row_range_iterator	row_rend (const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_component_row_iterator	row_rend (const std::size_t component, const std::size_t row)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_reverse_component_row_iterator	row_rend (const std::size_t component, const std::size_t row) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_component_row_range_iterator	row_rend (const std::size_t component, const size_type row, const slip::Range< int > &range)
	Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_component_row_range_iterator	row_rend (const std::size_t component, const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_col_iterator	col_rbegin (const size_type col)
	Returns a read/write reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...
const_reverse_col_iterator	col_rbegin (const size_type col) const
	Returns a read-only reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...
reverse_col_range_iterator	col_rbegin (const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_col_range_iterator	col_rbegin (const size_type col, const slip::Range< int > &range) const
	Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_component_col_iterator	col_rbegin (const std::size_t component, const std::size_t col)
	Returns a read/write iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
const_reverse_component_col_iterator	col_rbegin (const std::size_t component, const std::size_t col) const
	Returns a read-only (constant) iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
reverse_component_col_range_iterator	col_rbegin (const std::size_t component, const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_component_col_range_iterator	col_rbegin (const std::size_t component, const size_type col, const slip::Range< int > &range) const
	Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_col_iterator	col_rend (const size_type col)
	Returns a read/write reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...
const_reverse_col_iterator	col_rend (const size_type col) const
	Returns a read-only reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...
reverse_col_range_iterator	col_rend (const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_col_range_iterator	col_rend (const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_component_col_iterator	col_rend (const std::size_t component, const std::size_t col)
	Returns a read/write iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
const_reverse_component_col_iterator	col_rend (const std::size_t component, const std::size_t col) const
	Returns a read-only (constant) iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_component_col_range_iterator	col_rend (const std::size_t component, const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_component_col_range_iterator	col_rend (const std::size_t component, const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
iterator2d	upper_left ()
	Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...
const_iterator2d	upper_left () const
	Returns a read-only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...
iterator2d	upper_left (const Box2d< int > &box)
	Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...
const_iterator2d	upper_left (const Box2d< int > &box) const
	Returns a read only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...
iterator2d_range	upper_left (const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
const_iterator2d_range	upper_left (const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
iterator2d_range	upper_left (const Range< int > &range)
	Returns a read/write iterator2d_range that points to the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. More...
const_iterator2d_range	upper_left (const Range< int > &range) const
	Returns a read-only iterator2d_range that points to the to the upper left element of the Range range associated to the GenericMultiComponent2d. More...
component_iterator2d	upper_left (const std::size_t component)
	Returns a read/write component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...
const_component_iterator2d	upper_left (const std::size_t component) const
	Returns a read only const_component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...
component_iterator2d	upper_left (const std::size_t component, const Box2d< int > &box)
	Returns a read/write component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...
const_component_iterator2d	upper_left (const std::size_t component, const Box2d< int > &box) const
	Returns a read only component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...
component_iterator2d_range	upper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write component iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
const_component_iterator2d_range	upper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only component iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
iterator2d	bottom_right ()
	Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...
const_iterator2d	bottom_right () const
	Returns a read-only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...
iterator2d	bottom_right (const Box2d< int > &box)
	Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...
const_iterator2d	bottom_right (const Box2d< int > &box) const
	Returns a read only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...
iterator2d_range	bottom_right (const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
const_iterator2d_range	bottom_right (const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
iterator2d_range	bottom_right (const Range< int > &range)
	Returns a read/write iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. More...
const_iterator2d_range	bottom_right (const Range< int > &range) const
	Returns a read-only const_iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. More...
component_iterator2d	bottom_right (const std::size_t component)
	Returns a read/write component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...
const_component_iterator2d	bottom_right (const std::size_t component) const
	Returns a read only const_component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...
component_iterator2d	bottom_right (const std::size_t component, const Box2d< int > &box)
	Returns a read/write component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...
const_component_iterator2d	bottom_right (const std::size_t component, const Box2d< int > &box) const
	Returns a read only component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...
component_iterator2d_range	bottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
const_component_iterator2d_range	bottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
reverse_iterator2d	rupper_left ()
	Returns a read/write reverse iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...
const_reverse_iterator2d	rupper_left () const
	Returns a read only reverse iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...
reverse_iterator2d	rupper_left (const Box2d< int > &box)
	Returns a read/write reverse iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_iterator2d	rupper_left (const Box2d< int > &box) const
	Returns a read only reverse iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_iterator2d_range	rupper_left (const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_iterator2d_range	rupper_left (const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_iterator2d_range	rupper_left (const Range< int > &range)
	Returns a read/write reverse_iterator2d_range that points to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...
const_reverse_iterator2d_range	rupper_left (const Range< int > &range) const
	Returns a read-only reverse_iterator2d_range that points to the to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...
reverse_component_iterator2d	rupper_left (const std::size_t component)
	Returns a read/write reverse component iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...
const_reverse_component_iterator2d	rupper_left (const std::size_t component) const
	Returns a read only reverse component iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...
reverse_component_iterator2d	rupper_left (const std::size_t component, const Box2d< int > &box)
	Returns a read/write reverse component iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_component_iterator2d	rupper_left (const std::size_t component, const Box2d< int > &box) const
	Returns a read only reverse component iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_component_iterator2d_range	rupper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write reverse component iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_component_iterator2d_range	rupper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only reverse_component_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_iterator2d	rbottom_right ()
	Returns a read/write reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_iterator2d	rbottom_right () const
	Returns a read only reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_iterator2d	rbottom_right (const Box2d< int > &box)
	Returns a read/write reverse iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d. More...
const_reverse_iterator2d	rbottom_right (const Box2d< int > &box) const
	Returns a read-only reverse iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d. More...
reverse_iterator2d_range	rbottom_right (const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_iterator2d_range	rbottom_right (const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order. More...
reverse_iterator2d_range	rbottom_right (const Range< int > &range)
	Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...
const_reverse_iterator2d_range	rbottom_right (const Range< int > &range) const
	Returns a read_only reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...
reverse_component_iterator2d	rbottom_right (const std::size_t component)
	Returns a read/write reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_component_iterator2d	rbottom_right (const std::size_t component) const
	Returns a read only reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_component_iterator2d	rbottom_right (const std::size_t component, const Box2d< int > &box)
	Returns a read/write reverse component iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d. More...
const_reverse_component_iterator2d	rbottom_right (const std::size_t component, const Box2d< int > &box) const
	Returns a read-only reverse component iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d. More...
reverse_component_iterator2d_range	rbottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_component_iterator2d_range	rbottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order. More...
Assignment operators and methods
void	fill (const slip::Vector2d< T > &value)
	Fills the container range [begin(),begin()+size()) with copies of value. More...
void	fill (const typename slip::Vector2d< T >::pointer value)
	Fills the container range [begin(),begin()+size()) with a copy of the value array. More...
void	fill (const slip::Vector2d< T > *value)
	Fills the container range [begin(),begin()+size()) with a copy of the value array. More...
void	fill (InputIterator first, InputIterator last)
	Fills the container range [begin(),begin()+size()) with a copy of the range [first,last) More...
void	fill (std::vector< InputIterator > first_iterators_list, InputIterator last)
	Fills the container range [begin(),begin()+size()) with a copy of the range [first,last) More...
void	fill (std::size_t component, InputIterator first, InputIterator last)
	Fills the container range [begin(),begin()+size()) with a copy of the range [first,last) More...
Element access operators
Less than comparison operator (GenericMultiComponent2d ordering relation) Parameters x A GenericMultiComponent2d y A GenericMultiComponent2d of the same type of x Returns true iff x is lexicographically less than y Precondition x.size() == y.size() More than comparison operator Parameters x A GenericMultiComponent2d y A GenericMultiComponent2d of the same type of x Returns true iff y > x Precondition x.size() == y.size() Less than equal comparison operator Parameters x A GenericMultiComponent2d y A GenericMultiComponent2d of the same type of x Returns true iff !(y > x) Precondition x.size() == y.size() More than equal comparison operator Parameters x A GenericMultiComponent2d y A GenericMultiComponent2d of the same type of x Returns true iff !(x < y) Precondition x.size() == y.size()
pointer	operator[] (const size_type i)
	Subscript access to the row datas contained in the GenericMultiComponent2d. More...
const_pointer	operator[] (const size_type i) const
	Subscript access to the row datas contained in the GenericMultiComponent2d. More...
reference	operator() (const size_type i, const size_type j)
	Subscript access to the data contained in the GenericMultiComponent2d. More...
const_reference	operator() (const size_type i, const size_type j) const
	Subscript access to the data contained in the GenericMultiComponent2d. More...
reference	operator() (const Point2d< size_type > &point2d)
	Subscript access to the data contained in the GenericMultiComponent2d. More...
const_reference	operator() (const Point2d< size_type > &point2d) const
	Subscript access to the data contained in the GenericMultiComponent2d. More...
self	operator() (const Range< int > &row_range, const Range< int > &col_range)
	Subscript access to the data contained in the GenericMultiComponent2d. More...

Static Public Attributes
static const std::size_t	DIM = 2
static const std::size_t	COMPONENTS

Friends
class	boost::serialization::access

i/o operators
std::ostream &	operator<< (std::ostream &out, const self &a)
	Write the RegularVector2dField2d to the ouput stream. More...
void	write_gnuplot (const std::string &file_path_name) const
	Writes a RegularVector2dField2d to a gnuplot file path name. More...
void	write_tecplot (const std::string &file_path_name, const std::string &title, const std::string &zone) const
	Writes a RegularVector2dField2d to a tecplot file path name. More...
void	read_gnuplot (const std::string &file_path_name)
	Reads a RegularVector2dField2d from a gnuplot file path name. More...
void	read_tecplot (const std::string &file_path_name)
	Reads a RegularVector2dField2d from a tecplot file path name. More...

Detailed Description

template<typename T, typename GridT>
class slip::RegularVector2dField2d< T, GridT >

This is a 2d Field containing slip::Vector2d associated with a regular grid. This container statisfies the BidirectionnalContainer concepts of the STL. It is also an 2d extension of the RandomAccessContainer concept. That is to say the bracket element access is replaced by the double bracket element access. It is a specialization of GenericMultiComponent2d using Vector2d blocks. It implements arithmetic and mathematical operators (divergence, vorticity, derivative...) and read/write methods (tecplot and gnuplot file format). The points of the Vector field grid are assumed to be spaced by two regular steps. The inital point (closest point from the physical axis origin) of the grid is also stored within the data structure.

Author

Benoit Tremblais <tremblais_AT_sic.univ-poitiers.fr>

Version

0.0.3

Date

2014/04/02

Since

1.0.0

Parameters

T	Type of object in the RegularVector2dField2d
GridT	Type of the grid associated to the RegularVector2dField2d axis and notation conventions

Examples:

regularvector2dfield2d_op.cpp.

Definition at line 135 of file RegularVector2dField2d.hpp.

Member Typedef Documentation

template<typename T, typename GridT>

typedef GenericMultiComponent2d<slip::Vector2d<T> > slip::RegularVector2dField2d< T, GridT >::base

Definition at line 172 of file RegularVector2dField2d.hpp.

typedef block_value_type* slip::GenericMultiComponent2d< slip::Vector2d< T > >::block_pointer

inherited

Definition at line 229 of file GenericMultiComponent2d.hpp.

typedef block_value_type& slip::GenericMultiComponent2d< slip::Vector2d< T > >::block_reference

inherited

Definition at line 231 of file GenericMultiComponent2d.hpp.

typedef slip::Vector2d< T > ::value_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::block_value_type

inherited

Definition at line 228 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef slip::stride_iterator<pointer> slip::RegularVector2dField2d< T, GridT >::col_iterator

Definition at line 192 of file RegularVector2dField2d.hpp.

typedef slip::stride_iterator<col_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_range_iterator

inherited

Definition at line 223 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_col_iterator

inherited

Definition at line 260 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_col_range_iterator

inherited

Definition at line 262 of file GenericMultiComponent2d.hpp.

typedef slip::kstride_iterator<typename slip::Vector2d< T > ::pointer,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_iterator

inherited

Definition at line 233 of file GenericMultiComponent2d.hpp.

typedef slip::component_iterator2d_box<self,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_iterator2d

inherited

Definition at line 269 of file GenericMultiComponent2d.hpp.

typedef slip::component_iterator2d_range<self,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_iterator2d_range

inherited

Definition at line 274 of file GenericMultiComponent2d.hpp.

typedef component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_row_iterator

inherited

Definition at line 251 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::component_row_range_iterator

inherited

Definition at line 253 of file GenericMultiComponent2d.hpp.

typedef const block_value_type* slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_block_pointer

inherited

Definition at line 230 of file GenericMultiComponent2d.hpp.

typedef const block_value_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_block_reference

inherited

Definition at line 232 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef slip::stride_iterator<const_pointer> slip::RegularVector2dField2d< T, GridT >::const_col_iterator

Definition at line 193 of file RegularVector2dField2d.hpp.

typedef slip::stride_iterator<const_col_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_col_range_iterator

inherited

Definition at line 224 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<const_block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_col_iterator

inherited

Definition at line 261 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<const_block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_col_range_iterator

inherited

Definition at line 263 of file GenericMultiComponent2d.hpp.

typedef slip::kstride_iterator<typename slip::Vector2d< T > ::const_pointer,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_iterator

inherited

Definition at line 234 of file GenericMultiComponent2d.hpp.

typedef slip::const_component_iterator2d_box<const_self,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_iterator2d

inherited

Definition at line 271 of file GenericMultiComponent2d.hpp.

typedef slip::const_component_iterator2d_range<const_self,slip::Vector2d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_iterator2d_range

inherited

Definition at line 276 of file GenericMultiComponent2d.hpp.

typedef const_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_row_iterator

inherited

Definition at line 252 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<const_block_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_component_row_range_iterator

inherited

Definition at line 254 of file GenericMultiComponent2d.hpp.

typedef const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_default_iterator

inherited

Definition at line 281 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef const_pointer slip::RegularVector2dField2d< T, GridT >::const_iterator

Definition at line 184 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef slip::GenericMultiComponent2d<slip::Vector2d<T> >::const_iterator2d slip::RegularVector2dField2d< T, GridT >::const_iterator2d

Definition at line 201 of file RegularVector2dField2d.hpp.

typedef slip::Matrix<slip::Vector2d< T > >::const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_iterator2d_range

inherited

Definition at line 226 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef const value_type* slip::RegularVector2dField2d< T, GridT >::const_pointer

Definition at line 176 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef const value_type& slip::RegularVector2dField2d< T, GridT >::const_reference

Definition at line 178 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef std::reverse_iterator<const_col_iterator> slip::RegularVector2dField2d< T, GridT >::const_reverse_col_iterator

Definition at line 198 of file RegularVector2dField2d.hpp.

typedef std::reverse_iterator<const_col_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_col_range_iterator

inherited

Definition at line 245 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_col_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_col_iterator

inherited

Definition at line 265 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_col_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_col_range_iterator

inherited

Definition at line 267 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_iterator

inherited

Definition at line 249 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_iterator2d> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_iterator2d

inherited

Definition at line 272 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_iterator2d_range> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_iterator2d_range

inherited

Definition at line 277 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_row_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_row_iterator

inherited

Definition at line 256 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_row_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_component_row_range_iterator

inherited

Definition at line 258 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef std::reverse_iterator<const_iterator> slip::RegularVector2dField2d< T, GridT >::const_reverse_iterator

Definition at line 187 of file RegularVector2dField2d.hpp.

typedef std::reverse_iterator<const_iterator2d> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_iterator2d

inherited

Definition at line 241 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_iterator2d_range> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_iterator2d_range

inherited

Definition at line 247 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef std::reverse_iterator<const_iterator> slip::RegularVector2dField2d< T, GridT >::const_reverse_row_iterator

Definition at line 196 of file RegularVector2dField2d.hpp.

typedef std::reverse_iterator<const_row_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_reverse_row_range_iterator

inherited

Definition at line 243 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef const_pointer slip::RegularVector2dField2d< T, GridT >::const_row_iterator

Definition at line 191 of file RegularVector2dField2d.hpp.

typedef slip::stride_iterator<const_pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::const_row_range_iterator

inherited

Definition at line 222 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef const RegularVector2dField2d<T,GridT> slip::RegularVector2dField2d< T, GridT >::const_self

Definition at line 171 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef slip::kstride_iterator<const_vector2d_pointer,2> slip::RegularVector2dField2d< T, GridT >::const_vector2d_iterator

Definition at line 210 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef const vector2d_value_type* slip::RegularVector2dField2d< T, GridT >::const_vector2d_pointer

Definition at line 206 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef const vector2d_value_type slip::RegularVector2dField2d< T, GridT >::const_vector2d_reference

Definition at line 208 of file RegularVector2dField2d.hpp.

typedef iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::default_iterator

inherited

Definition at line 280 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef ptrdiff_t slip::RegularVector2dField2d< T, GridT >::difference_type

Definition at line 180 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef GridT slip::RegularVector2dField2d< T, GridT >::grid_value_type

Definition at line 204 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef pointer slip::RegularVector2dField2d< T, GridT >::iterator

Definition at line 183 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef slip::GenericMultiComponent2d<slip::Vector2d<T> >::iterator2d slip::RegularVector2dField2d< T, GridT >::iterator2d

Definition at line 200 of file RegularVector2dField2d.hpp.

typedef slip::Matrix<slip::Vector2d< T > >::iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::iterator2d_range

inherited

Definition at line 225 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef slip::lin_alg_traits<value_type>::value_type slip::RegularVector2dField2d< T, GridT >::norm_type

Definition at line 212 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef value_type* slip::RegularVector2dField2d< T, GridT >::pointer

Definition at line 175 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef value_type& slip::RegularVector2dField2d< T, GridT >::reference

Definition at line 177 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef std::reverse_iterator<col_iterator> slip::RegularVector2dField2d< T, GridT >::reverse_col_iterator

Definition at line 197 of file RegularVector2dField2d.hpp.

typedef std::reverse_iterator<col_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_col_range_iterator

inherited

Definition at line 244 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_col_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_col_iterator

inherited

Definition at line 264 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_col_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_col_range_iterator

inherited

Definition at line 266 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_iterator

inherited

Definition at line 248 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_iterator2d> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_iterator2d

inherited

Definition at line 270 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_iterator2d_range> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_iterator2d_range

inherited

Definition at line 275 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_row_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_row_iterator

inherited

Definition at line 255 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_row_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_component_row_range_iterator

inherited

Definition at line 257 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef std::reverse_iterator<iterator> slip::RegularVector2dField2d< T, GridT >::reverse_iterator

Definition at line 186 of file RegularVector2dField2d.hpp.

typedef std::reverse_iterator<iterator2d> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_iterator2d

inherited

Definition at line 240 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<iterator2d_range> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_iterator2d_range

inherited

Definition at line 246 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef std::reverse_iterator<iterator> slip::RegularVector2dField2d< T, GridT >::reverse_row_iterator

Definition at line 195 of file RegularVector2dField2d.hpp.

typedef std::reverse_iterator<row_range_iterator> slip::GenericMultiComponent2d< slip::Vector2d< T > >::reverse_row_range_iterator

inherited

Definition at line 242 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef pointer slip::RegularVector2dField2d< T, GridT >::row_iterator

Definition at line 190 of file RegularVector2dField2d.hpp.

typedef slip::stride_iterator<pointer> slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_range_iterator

inherited

Definition at line 221 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

typedef RegularVector2dField2d<T,GridT> slip::RegularVector2dField2d< T, GridT >::self

Definition at line 170 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef std::size_t slip::RegularVector2dField2d< T, GridT >::size_type

Definition at line 181 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef slip::Vector2d<T> slip::RegularVector2dField2d< T, GridT >::value_type

Definition at line 169 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef slip::kstride_iterator<vector2d_pointer,2> slip::RegularVector2dField2d< T, GridT >::vector2d_iterator

Definition at line 209 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef vector2d_value_type* slip::RegularVector2dField2d< T, GridT >::vector2d_pointer

Definition at line 205 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef vector2d_value_type& slip::RegularVector2dField2d< T, GridT >::vector2d_reference

Definition at line 207 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

typedef T slip::RegularVector2dField2d< T, GridT >::vector2d_value_type

Definition at line 203 of file RegularVector2dField2d.hpp.

Constructor & Destructor Documentation

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( )

inline

Constructs a RegularVector2dField2d.

Definition at line 225 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width  )

inline

Constructs a RegularVector2dField2d.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d

Regular Field Vector manipulation

Definition at line 236 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, const slip::Point2d< GridT > &  init_point, const slip::Point2d< GridT > &  grid_step  )

inline

Constructs a RegularVector2dField2d.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
init_point	init point of the RegularVector2dField2d
grid_step	grid step of the RegularVector2dField2d

Regular Field Vector manipulation

Definition at line 250 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, const slip::Vector2d< T > &  val  )

inline

Constructs a RegularVector2dField2d initialized by the scalar value val.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
val	initialization value of the elements

Definition at line 263 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, const slip::Point2d< GridT > &  init_point, const slip::Point2d< GridT > &  grid_step, const slip::Vector2d< T > &  val  )

inline

Constructs a RegularVector2dField2d initialized by the scalar value val.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
init_point	init point of the RegularVector2dField2d
grid_step	grid step of the RegularVector2dField2d
val	initialization value of the elements

Definition at line 277 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, const T *  val  )

inline

Constructs a RegularVector2dField2d initialized by an array val.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
val	initialization linear array value of the elements

Definition at line 291 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, const slip::Point2d< GridT > &  init_point, const slip::Point2d< GridT > &  grid_step, const T *  val  )

inline

Constructs a RegularVector2dField2d initialized by an array val.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
init_point	init point of the RegularVector2dField2d
grid_step	grid step of the RegularVector2dField2d
val	initialization linear array value of the elements

Definition at line 308 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, const slip::Vector2d< T > *  val  )

inline

Constructs a RegularVector2dField2d initialized by an array val.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
val	initialization array value of the elements

Definition at line 322 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, const slip::Point2d< GridT > &  init_point, const slip::Point2d< GridT > &  grid_step, const slip::Vector2d< T > *  val  )

inline

Constructs a RegularVector2dField2d initialized by an array val.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
init_point	init point of the RegularVector2dField2d
grid_step	grid step of the RegularVector2dField2d
val	initialization array value of the elements

Definition at line 336 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

template<typename InputIterator >

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, InputIterator  first, InputIterator  last  )

inline

Contructs a RegularVector2dField2d from a range.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
first	An input iterator.
last	An input iterator.

Create a RegularVector2dField2d consisting of copies of the elements from [first,last).

Definition at line 356 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

template<typename InputIterator >

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, const slip::Point2d< GridT > &  init_point, const slip::Point2d< GridT > &  grid_step, InputIterator  first, InputIterator  last  )

inline

Contructs a RegularVector2dField2d from a range.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
init_point	init point of the RegularVector2dField2d
grid_step	grid step of the RegularVector2dField2d
first	An input iterator.
last	An input iterator.

Create a RegularVector2dField2d consisting of copies of the elements from [first,last).

Definition at line 380 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

template<typename InputIterator >

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, InputIterator  first1, InputIterator  last1, InputIterator  first2  )

inline

Contructs a RegularVector2dField2d from a 2 ranges.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
first1	An input iterator.
last1	An input iterator.
first2	An input iterator.

Create a RegularVector2dField2d consisting of copies of the elements from [first1,last1), [first2,first2 + (last1 - first1)),

Definition at line 410 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

template<typename InputIterator >

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const size_type  height, const size_type  width, const slip::Point2d< GridT > &  init_point, const slip::Point2d< GridT > &  grid_step, InputIterator  first1, InputIterator  last1, InputIterator  first2  )

inline

Contructs a RegularVector2dField2d from a 2 ranges.

Parameters

height	first dimension of the RegularVector2dField2d
width	second dimension of the RegularVector2dField2d
init_point	init point of the RegularVector2dField2d
grid_step	grid step of the RegularVector2dField2d
first1	An input iterator.
last1	An input iterator.
first2	An input iterator.

Create a RegularVector2dField2d consisting of copies of the elements from [first1,last1), [first2,first2 + (last1 - first1)),

Definition at line 441 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::RegularVector2dField2d ( const self &  rhs )

inline

Constructs a copy of the RegularVector2dField2d rhs.

Definition at line 462 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

slip::RegularVector2dField2d< T, GridT >::~RegularVector2dField2d ( )

inline

Destructor of the RegularVector2dField2d.

Definition at line 469 of file RegularVector2dField2d.hpp.

Member Function Documentation

template<typename T , typename GridT >

RegularVector2dField2d< T, GridT >::norm_type slip::RegularVector2dField2d< T, GridT >::angle ( const size_type  i, const size_type  j  ) const

inline

Subscript access to a local angle contained in the RegularVector2dField2d. The result is a radian between the range [-PI,PI].

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1658 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

template<typename Container2D >

void slip::RegularVector2dField2d< T, GridT >::angle ( Container2D &  result )

inline

Computes angle (radian) of each element with the cartesian axis and write it to a Container2D.

Author

Benoit Tremblais <benoit.tremblais_AT_sic.univ-poitiers.fr>

Date

2008/04/21

Version

0.0.1

Parameters

result

A Container2D which contain the angle of each element.

Definition at line 1272 of file RegularVector2dField2d.hpp.

GenericMultiComponent2d<slip::Vector2d< T > >& slip::GenericMultiComponent2d< slip::Vector2d< T > >::apply ( slip::Vector2d< T > (*)(slip::Vector2d< T > )  fun )

inherited

Returns the sums of the elements of the GenericMultiComponent2d.

Precondition

size() != 0

Applys the one-parameter C-function fun to each element of the GenericMultiComponent2d

Parameters

fun	The one-parameter C function

Returns

the resulting GenericMultiComponent2d

GenericMultiComponent2d<slip::Vector2d< T > >& slip::GenericMultiComponent2d< slip::Vector2d< T > >::apply ( slip::Vector2d< T > (*)(const slip::Vector2d< T > &)  fun )

inherited

Applys the one-parameter C-function fun to each element of the GenericMultiComponent2d.

Parameters

fun	The one-const-parameter C function

Returns

the resulting GenericMultiComponent2d

iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::begin ( )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns

begin iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2 in S
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

const_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::begin ( ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns

const begin iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of A1 and A2 in S
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::begin ( const std::size_t  component )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

begin component_iterator value

const_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::begin ( const std::size_t  component ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

const begin component_iterator value

iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( )

inherited

Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the elements of A1 in A2
std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( ) const

inherited

Returns a read-only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Returns

begin const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the elements of A1 in A2
std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Box2d< int > &  box )

inherited

Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);
 slip::Box2d<int> box(1,1,3,2);
//copy the elements of A1 inside the box which upper_left element
//is located in (1,1) and the bottom right element is in (3,2)
std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Box2d< int > &  box ) const

inherited

Returns a read only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);
 slip::Box2d<int> box(1,1,3,2);
//copy the elements of A1 inside the box which upper_left element
//is located in (1,1) and the bottom right element is in (3,2)
std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> row_range(0,A1.dim2()-1,2);
 slip::Range<int> col_range(0,A1.dim1()-1,2);
//copy the elements of A1 within the ranges row_range and col_range
//in A2
std::copy(A1.upper_left(row_range,col_range),
A1.bottom_right(row_range,col_range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> row_range(0,A1.dim2()-1,2);
 slip::Range<int> col_range(0,A1.dim1()-1,2);
//copy the elements of A1 within the ranges row_range and col_range
//in A2
std::copy(A1.upper_left(row_range,col_range),
A1.bottom_right(row_range,col_range),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Range< int > &  range )

inherited

Returns a read/write iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of A1 within the range range
//in A2
std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const Range< int > &  range ) const

inherited

Returns a read-only const_iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of A1 within the range range
//in A2
std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const std::size_t  component )

inherited

Returns a read/write component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Parameters

component

The component number.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the first component of the elements of A1 in A2
std::copy(A1.upper_left(0),A1.bottom_right(0),A2.upper_left(0));

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const std::size_t  component ) const

inherited

Returns a read only const_component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Parameters

component

The component number.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const std::size_t  component, const Box2d< int > &  box  )

inherited

Returns a read/write component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const std::size_t  component, const Box2d< int > &  box  ) const

inherited

Returns a read only component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::bottom_right ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const size_type  col )

inherited

Returns a read/write iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column to iterate.

Returns

begin col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the column 0 of A1 in the column 1 of A2
std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

const_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const size_type  col ) const

inherited

Returns a read-only iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column to iterate.

Returns

begin const_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the column 0 of A1 in the column 1 of A2
std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate

Returns

begin col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

const_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin const_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const std::size_t  component, const std::size_t  col  )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

begin component_col_iterator value.

const_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const std::size_t  component, const std::size_t  col  ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

const begin component_col_iterator value

component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate

Returns

begin component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the first component of the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

const_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_begin ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin const_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the first component of the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const size_type  col )

inherited

Returns a read/write iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column to iterate.

Returns

begin col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the column 0 of A1 in the column 1 of A2
std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

const_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const size_type  col ) const

inherited

Returns a read-only iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column

Returns

begin const_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the column 0 of A1 in the column 1 of A2
std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

const_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate

Returns

begin const_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const std::size_t  component, const std::size_t  col  )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

end component_col_iterator value

const_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const std::size_t  component, const std::size_t  col  ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

const end component_col_iterator value

component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the first component of the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

const_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_end ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate

Returns

begin const_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the first component of the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const size_type  col )

inherited

Returns a read/write reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns

begin col_reverse_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

const_reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const size_type  col ) const

inherited

Returns a read-only reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns

begin const_reverse_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin reverse_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin const_reverse_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const std::size_t  component, const std::size_t  col  )

inherited

Returns a read/write iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order.

Parameters

component	The component number.
col	The col within the component.

Returns

begin reverse_component_col_iterator value.

const_reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const std::size_t  component, const std::size_t  col  ) const

inherited

Returns a read-only (constant) iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order.

Parameters

component	The component number.
col	The col within the component.

Returns

const reverse_component_col_iterator value

reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin reverse_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rbegin ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin const_reverse_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const size_type  col )

inherited

Returns a read/write reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns

end reverse_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

const_reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const size_type  col ) const

inherited

Returns a read-only reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns

end const_reverse_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

reverse_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

const_reverse_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const std::size_t  component, const std::size_t  col  )

inherited

Returns a read/write iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

component	The component number.
col	The col within the component.

Returns

end component_col_iterator value

const_reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const std::size_t  component, const std::size_t  col  ) const

inherited

Returns a read-only (constant) iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

const end component_col_iterator value

reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

reverse_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::col_rend ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

const_reverse_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::cols ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::columns ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

template<typename T, typename GridT>

template<typename Container2D >

void slip::RegularVector2dField2d< T, GridT >::derivative ( const std::size_t  component, const slip::SPATIAL_DIRECTION  der_dir, const std::size_t  der_order, const std::size_t  sch_order, Container2D &  result  ) const

inline

Computes finite differences derivatives of a RegularVector2dField2d.

Author

Benoit Tremblais <benoit.tremblais_AT_sic.univ-poitiers.fr>

Date

2007/11/26

Version

0.0.1

Parameters

component	Component of the RegularVector2dField2d to derivate.
der_dir	SPATIAL_DIRECTION of the derivative : X_DIRECTION or Y_DIRECTION.
der_order	Derivative order.
sch_order	Order of derivation scheme.
result	A Container2D which contain the result of the derivative.

Precondition

component < 2

if der_dir == X_DIRECTION, rows() must be > sch_order

if der_dir == Y_DIRECTION, cols() must be > sch_order

sch_order must be >= der_order

Example:

//computes some derivatives on the field VFM
slip::Matrix<double> Result(nj,ni);
std::size_t plane = 0; //computes on Vx (U)
std::cout<<"-- direction X, ordre 1 (der), ordre 1 (sch) --"<<std::endl;
VFM.derivative(plane,slip::X_DIRECTION,1,1,Result);
plane = 1; //computes on Vy (V)
std::cout<<"-- direction Y, ordre 1 (der), ordre 4 (sch) --"<<std::endl;
VFM.derivative(plane,slip::Y_DIRECTION,1,4,Result);

Definition at line 935 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

template<typename Container2D >

void slip::RegularVector2dField2d< T, GridT >::derivative ( const std::size_t  component, const slip::SPATIAL_DIRECTION  der_dir, const std::size_t  der_order, const std::size_t  sch_order, const slip::Box2d< int >  box, Container2D &  result  ) const

inline

Computes finite differences derivatives of a RegularVector2dField2d.

Author

Adrien Berchet <adrien.berchet_AT_sic.univ-poitiers.fr>

Date

2014/04/14

Version

0.0.1

Since

1.4.0

Parameters

component	Component of the RegularVector2dField2d to derivate.
der_dir	SPATIAL_DIRECTION of the derivative : X_DIRECTION or Y_DIRECTION.
der_order	Derivative order.
sch_order	Order of derivation scheme.
result	A Container2D which contain the result of the derivative.

Precondition

component < 2

if der_dir == X_DIRECTION, rows() must be > sch_order

if der_dir == Y_DIRECTION, cols() must be > sch_order

sch_order must be >= der_order

Example:

//computes some derivatives on the field VFM
slip::Array2d<double> Matrice(5,8,0.0);
slip::Point2d<int> min(0,1), max(4,6);
slip::Box2d<int> box2d(min, max);
slip::iota(Matrice.begin(),Matrice.end(),1.0,1.0);
  //copy M two time : in the first component and in the second component of VFM
slip::RegularVector2dField2d<double> VFM(5,8,Matrice.begin(),Matrice.end(),Matrice.begin());
slip::Matrix2d<double> Result(5,8,0.0);
std::cout<<"Matrice="<<std::endl;
std::cout<<Matrice<<std::endl;
std::size_t comp = 0; // the component to derivate
std::cout<<"-- component 0, direction X, ordre 1 (der), ordre 1 (sch), box2d --"<<std::endl;
VFM.derivative(comp,slip::X_DIRECTION,1,1,box2d,Result);
std::cout<<"Result="<<std::endl;
std::cout<<Result<<std::endl;

Definition at line 1040 of file RegularVector2dField2d.hpp.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::dim1 ( ) const

inherited

Returns the number of rows (first dimension size) in the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::dim2 ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

template<typename T, typename GridT>

template<typename Container2D >

void slip::RegularVector2dField2d< T, GridT >::divergence ( const std::size_t  sch_order, Container2D &  result  ) const

inline

Computes finite differences divergence of a RegularVector2dField2d.

Author

Benoit Tremblais <benoit.tremblais_AT_sic.univ-poitiers.fr>

Date

2007/11/26

Version

0.0.1

Parameters

sch_order	Order of derivation scheme.
result	A Container2D which contain the result of the divergence.

Precondition

sch_order must be >= 1

Example:

//computes the divergence at order 4 on the field Vxy
slip::Matrix<double> div(Vxy.rows(),Vxy.cols());
Vxy.divergence(4,div);

Definition at line 1119 of file RegularVector2dField2d.hpp.

bool slip::GenericMultiComponent2d< slip::Vector2d< T > >::empty ( ) const

inherited

Returns true if the GenericMultiComponent2d is empty. (Thus size() == 0)

iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::end ( )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns

end iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2 in S
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

const_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::end ( ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns

const end iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2 in S
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::end ( const std::size_t  component )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

end component_iterator value

const_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::end ( const std::size_t  component ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

const end component_iterator value

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill ( const slip::Vector2d< T > &  value )

inlineinherited

Fills the container range [begin(),begin()+size()) with copies of value.

Parameters

value

A reference-to-const of arbitrary type.

Definition at line 3050 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill ( const typename slip::Vector2d< T > ::pointer  value )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the value array.

Parameters

value

A pointer of arbitrary type.

Definition at line 3061 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill ( const slip::Vector2d< T > *  value )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the value array.

Parameters

value

A pointer of arbitrary type.

Definition at line 3072 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill ( InputIterator  first, InputIterator  last  )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last)

Parameters

first	An input iterator.
last	An input iterator.

Definition at line 3086 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill ( std::vector< InputIterator >  first_iterators_list, InputIterator  last  )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last)

Parameters

first_iterators_list	An input iterator list.
last	An input iterator.

Definition at line 3101 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::fill ( std::size_t  component, InputIterator  first, InputIterator  last  )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last)

Parameters

component	The component number.
first	An input iterator.
last	An input iterator.

Definition at line 3133 of file GenericMultiComponent2d.hpp.

template<typename T , typename GridT >

const slip::Point2d< GridT > & slip::RegularVector2dField2d< T, GridT >::get_grid_step ( ) const

inline

Read access to the init point of the grid.

Returns

A slip::Point2d<GridT>

Definition at line 1714 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

const slip::Point2d< GridT > & slip::RegularVector2dField2d< T, GridT >::get_init_point ( ) const

inline

Read access to the init point of the grid.

Returns

A slip::Point2d<GridT>

Definition at line 1700 of file RegularVector2dField2d.hpp.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::height ( ) const

inherited

Returns the height (first dimension size) in the GenericMultiComponent2d.

template<typename T, typename GridT>

template<typename Container2D >

void slip::RegularVector2dField2d< T, GridT >::lambda2 ( const std::size_t  sch_order, Container2D &  result  )

inline

Computes finite differences lambda2 of a RegularVector2dField2d.

Author

Benoit Tremblais <benoit.tremblais_AT_sic.univ-poitiers.fr>

Date

2007/11/26

Version

0.0.1

Parameters

sch_order	Order of derivation scheme.
result	A Container2D which contain the result of the lambda2.

Precondition

sch_order must be >= 1

Bug:

should be a const method

//computes the lambda2 at order 4 on the field Vxy
slip::Matrix<double> l2(Vxy.rows(),Vxy.cols());
Vxy.lambda2(4,l2);

Definition at line 1203 of file RegularVector2dField2d.hpp.

slip::Vector2d< T > slip::GenericMultiComponent2d< slip::Vector2d< T > >::max ( ) const

inherited

Returns the max elements of the GenericMultiComponent2d according to the operator <.

Precondition

size() != 0

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::max_size ( ) const

inherited

Returns the maximal size (number of elements) in the GenericMultiComponent2d.

slip::Vector2d< T > slip::GenericMultiComponent2d< slip::Vector2d< T > >::min ( ) const

inherited

Returns the min elements of the GenericMultiComponent2d according to the operator <.

Precondition

size() != 0

template<typename T , typename GridT >

std::string slip::RegularVector2dField2d< T, GridT >::name ( ) const

inline

Returns the name of the class.

Definition at line 1903 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

RegularVector2dField2d< T, GridT >::norm_type slip::RegularVector2dField2d< T, GridT >::norm ( const size_type  i, const size_type  j  ) const

inline

Subscript access to a local norm contained in the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1649 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

template<typename Container2D >

void slip::RegularVector2dField2d< T, GridT >::norm ( Container2D &  result )

inline

Computes Eucliean norm of each element in the field and write it to a Container2D.

Author

Benoit Tremblais <benoit.tremblais_AT_sic.univ-poitiers.fr>

Date

2008/04/21

Version

0.0.1

Parameters

result

A Container2D which contain the norm of each element.

Definition at line 1256 of file RegularVector2dField2d.hpp.

reference slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator() ( const size_type  i, const size_type  j  )

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read/write reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

const_reference slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator() ( const size_type  i, const size_type  j  ) const

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

reference slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator() ( const Point2d< size_type > &  point2d )

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

point2d

A Point2d which indicate the subscripts of the data to access.

Returns

Read/write reference to data.

Precondition

point2d must be defined in the range of the GenericMultiComponent2d.

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

const_reference slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator() ( const Point2d< size_type > &  point2d ) const

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

point2d

A Point2d which indicate the subscripts of the data to access.

Returns

Read_only (constant) reference to data.

Precondition

point2d must be defined in the range of the GenericMultiComponent2d.

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

self slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator() ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Returns

a copy of the range.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator*= ( const T &  val )

inline

Definition at line 1744 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator*= ( const slip::Vector2d< T > &  val )

inline

Definition at line 1778 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator*= ( const self &  rhs )

inline

Definition at line 1841 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator+= ( const T &  val )

inline

Add val to each element of the RegularVector2dField2d.

Parameters

val

value

Returns

reference to the resulting RegularVector2dField2d

Definition at line 1728 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator+= ( const slip::Vector2d< T > &  val )

inline

Add val to each element of the RegularVector2dField2d.

Parameters

val

value

Returns

reference to the resulting RegularVector2dField2d

Definition at line 1762 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator+= ( const self &  rhs )

inline

Definition at line 1805 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

RegularVector2dField2d< T, GridT > slip::RegularVector2dField2d< T, GridT >::operator- ( ) const

inline

Definition at line 1796 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator-= ( const T &  val )

inline

Definition at line 1736 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator-= ( const slip::Vector2d< T > &  val )

inline

Definition at line 1770 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator-= ( const self &  rhs )

inline

Definition at line 1823 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator/= ( const T &  val )

inline

Definition at line 1752 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator/= ( const slip::Vector2d< T > &  val )

inline

Definition at line 1786 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator/= ( const self &  rhs )

inline

Definition at line 1859 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator= ( const slip::Vector2d< T > &  val )

inline

Affects all the element of the RegularVector2dField2d by val.

Parameters

val	affectation value

Returns

reference to corresponding RegularVector2dField2d

Definition at line 1567 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT >

RegularVector2dField2d< T, GridT > & slip::RegularVector2dField2d< T, GridT >::operator= ( const T &  val )

inline

Affects all the element of the RegularVector2dField2d by val.

Parameters

val	affectation value

Returns

reference to corresponding RegularVector2dField2d

Definition at line 1576 of file RegularVector2dField2d.hpp.

pointer slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator[] ( const size_type  i )

inherited

Subscript access to the row datas contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which data should be accessed.

Returns

Read/write pointer to the row data.

Precondition

i < rows()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

const_pointer slip::GenericMultiComponent2d< slip::Vector2d< T > >::operator[] ( const size_type  i ) const

inherited

Subscript access to the row datas contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which data should be accessed.

Returns

Read-only (constant) pointer to the row data.

Precondition

i < rows()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

reverse_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbegin ( )

inherited

Returns a read/write reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns

reverse begin iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2
//in S (iterated in the reverse order element)
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.rbegin(),
               std::plus<slip::Vector2d<double> >());

const_reverse_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbegin ( ) const

inherited

Returns a read-only (constant) reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns

const reverse begin iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 (iterated in the reverse order element)
//and A2 in S
std::transform(A1.rbegin(),A1.rend(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbegin ( const std::size_t  component )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

begin reverse_component_iterator value

const_reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbegin ( const std::size_t  component ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

const begin reverse_component_iterator value

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( )

inherited

Returns a read/write reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( ) const

inherited

Returns a read only reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Box2d< int > &  box )

inherited

Returns a read/write reverse iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Box2d< int > &  box ) const

inherited

Returns a read-only reverse iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Range< int > &  range )

inherited

Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const Range< int > &  range ) const

inherited

Returns a read_only reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const std::size_t  component )

inherited

Returns a read/write reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component

The component number.

Returns

reverse component iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const std::size_t  component ) const

inherited

Returns a read only reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component

The component number.

Returns

const reverse component iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const std::size_t  component, const Box2d< int > &  box  )

inherited

Returns a read/write reverse component iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const std::size_t  component, const Box2d< int > &  box  ) const

inherited

Returns a read-only reverse component iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rbottom_right ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

template<typename T , typename GridT >

void slip::RegularVector2dField2d< T, GridT >::read_gnuplot ( const std::string &  file_path_name )

inline

Reads a RegularVector2dField2d from a gnuplot file path name.

Parameters

file_path_name

Data format:

x y U(x,y) V(x,y)

Remarks

x = j and y = (dim1 - 1) - i

Definition at line 1929 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

void slip::RegularVector2dField2d< T, GridT >::read_tecplot ( const std::string &  file_path_name )

inline

Reads a RegularVector2dField2d from a tecplot file path name.

Parameters

file_path_name

Data format:

TITLE= title

VARIABLES= X Y U V

ZONE T= zone, I= rows(), J= << cols()

x y U(x,y) V(x,y)

Remarks

x = j and y = (dim1 - 1) - i

Definition at line 1937 of file RegularVector2dField2d.hpp.

reverse_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rend ( )

inherited

Returns a read/write reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns

reverse end iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2
//in S (iterated in the reverse order element)
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.rbegin(),
               std::plus<slip::Vector2d<double> >());

const_reverse_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rend ( ) const

inherited

Returns a read-only (constant) reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns

const reverse end iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 (iterated in the reverse order element)
//and A2 in S
std::transform(A1.rbegin(),A1.rend(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rend ( const std::size_t  component )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

end reverse_component_iterator value

const_reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::rend ( const std::size_t  component ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

const end reverse_component_iterator value

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::resize ( const size_type  height, const size_type  width, const slip::Vector2d< T > &  val = Block()  )

inherited

Resizes a GenericMultiComponent2d.

Parameters

height	new first dimension
width	new second dimension
val	new value for all the elements

row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const size_type  row )

inherited

Returns a read/write iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns

begin row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the row 0 of A1 in the row 1 of A2
std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

const_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const size_type  row ) const

inherited

Returns a read-only iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns

begin const_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the row 0 of A1 in the row 1 of A2
std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

begin row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

const_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

begin const_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const std::size_t  component, const std::size_t  row  )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

begin component_row_iterator value.

const_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const std::size_t  component, const std::size_t  row  ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

const begin component_row_iterator value

component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

begin component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the first component of the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

const_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_begin ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

begin const_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the first component of the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const size_type  row )

inherited

Returns a read/write iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns

begin row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the row 0 of A1 in the row 1 of A2
std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

const_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const size_type  row ) const

inherited

Returns a read-only iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns

begin const_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the row 0 of A1 in the row 1 of A2
std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

end row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

const_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	Row to iterate.
range	Range of the row to iterate

Returns

begin const_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const std::size_t  component, const std::size_t  row  )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

end component_row_iterator value

const_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const std::size_t  component, const std::size_t  row  ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

const end component_row_iterator value

component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

end component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the first component of the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

const_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_end ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	Row to iterate.
range	Range of the row to iterate

Returns

begin const_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the first component of the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const size_type  row )

inherited

Returns a read/write reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns

begin reverse_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

const_reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const size_type  row ) const

inherited

Returns a read-only reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns

begin const_reverse_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

reverse_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate

Returns

begin const_reverse_row_range_iterator value

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const std::size_t  component, const std::size_t  row  )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

reverse begin component_row_iterator value.

const_reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const std::size_t  component, const std::size_t  row  ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

const reverse begin component_row_iterator value

reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

reverse_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rbegin ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate

Returns

begin const_reverse_component_row_range_iterator value

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const size_type  row )

inherited

Returns a read/write reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns

end reverse_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

const_reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const size_type  row ) const

inherited

Returns a read-only reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns

end const_reverse_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

reverse_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate

Returns

const_reverse_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const std::size_t  component, const std::size_t  row  )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

end reverse component_row_iterator value

const_reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const std::size_t  component, const std::size_t  row  ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

const reverse end component_row_iterator value

reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

reverse_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector2d< T > >::row_rend ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate

Returns

const_reverse_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::rows ( ) const

inherited

Returns the number of rows (first dimension size) in the GenericMultiComponent2d.

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( )

inherited

Returns a read/write reverse iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Returns

reverse_iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( ) const

inherited

Returns a read only reverse iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Returns

const_reverse_iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Box2d< int > &  box )

inherited

Returns a read/write reverse iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Box2d< int > &  box ) const

inherited

Returns a read only reverse iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Range< int > &  range )

inherited

Returns a read/write reverse_iterator2d_range that points to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range

The range of the rows and the cols.

Precondition

range and must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const Range< int > &  range ) const

inherited

Returns a read-only reverse_iterator2d_range that points to the to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const std::size_t  component )

inherited

Returns a read/write reverse component iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Parameters

component

The component number.

Returns

reverse_component_iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const std::size_t  component ) const

inherited

Returns a read only reverse component iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Parameters

component

The component number.

Returns

const_reverse_component_iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const std::size_t  component, const Box2d< int > &  box  )

inherited

Returns a read/write reverse component iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const std::size_t  component, const Box2d< int > &  box  ) const

inherited

Returns a read only reverse component iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write reverse component iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::rupper_left ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only reverse_component_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

template<typename T , typename GridT>

void slip::RegularVector2dField2d< T, GridT >::set_grid_step ( const slip::Point2d< GridT > &  grid_step )

inline

Write access to the grid step of the grid.

Parameters

grid_step

A slip::Point2d<GridT>.

Definition at line 1721 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT>

void slip::RegularVector2dField2d< T, GridT >::set_init_point ( const slip::Point2d< GridT > &  init_point )

inline

Write access to the init point of the grid.

Parameters

init_point

A slip::Point2d<GridT>.

Definition at line 1707 of file RegularVector2dField2d.hpp.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::size ( ) const

inherited

Returns the number of elements in the GenericMultiComponent2d.

void slip::GenericMultiComponent2d< slip::Vector2d< T > >::swap ( self &  M )

inherited

Swaps data with another GenericMultiComponent2d.

Parameters

M	A GenericMultiComponent2d of the same element type

template<typename T , typename GridT >

T & slip::RegularVector2dField2d< T, GridT >::u ( const size_type  i, const size_type  j  )

inline

Subscript access to first element of the data contained in the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read/write reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1601 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

const T & slip::RegularVector2dField2d< T, GridT >::u ( const size_type  i, const size_type  j  ) const

inline

Subscript access to the first element of the data contained in the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1609 of file RegularVector2dField2d.hpp.

iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( )

inherited

Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the elements of A1 in A2
std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( ) const

inherited

Returns a read-only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Returns

begin const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the elements of A1 in A2
std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Box2d< int > &  box )

inherited

Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Returns

end iterator2d value

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);
 slip::Box2d<int> box(1,1,3,2);
//copy the elements of A1 inside the box which upper_left element
//is located in (1,1) and the bottom right element is in (3,2)
std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Box2d< int > &  box ) const

inherited

Returns a read only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);
 slip::Box2d<int> box(1,1,3,2);
//copy the elements of A1 inside the box which upper_left element
//is located in (1,1) and the bottom right element is in (3,2)
std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> row_range(0,A1.dim2()-1,2);
 slip::Range<int> col_range(0,A1.dim1()-1,2);
//copy the elements of A1 within the ranges row_range and col_range
//in A2
std::copy(A1.upper_left(row_range,col_range),
A1.bottom_right(row_range,col_range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> row_range(0,A1.dim2()-1,2);
 slip::Range<int> col_range(0,A1.dim1()-1,2);
//copy the elements of A1 within the ranges row_range and col_range
//in A2
std::copy(A1.upper_left(row_range,col_range),
A1.bottom_right(row_range,col_range),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Range< int > &  range )

inherited

Returns a read/write iterator2d_range that points to the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols.

Parameters

range

The range of the rows and the cols.

Precondition

range and must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of A1 within the range range
//in A2
std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const Range< int > &  range ) const

inherited

Returns a read-only iterator2d_range that points to the to the upper left element of the Range range associated to the GenericMultiComponent2d.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of A1 within the range range
//in A2
std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const std::size_t  component )

inherited

Returns a read/write component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Parameters

component

The component number.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the first component of the elements of A1 in A2
std::copy(A1.upper_left(0),A1.bottom_right(0),A2.upper_left(0));

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const std::size_t  component ) const

inherited

Returns a read only const_component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Parameters

component

The component number.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const std::size_t  component, const Box2d< int > &  box  )

inherited

Returns a read/write component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Returns

end iterator2d value

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const std::size_t  component, const Box2d< int > &  box  ) const

inherited

Returns a read only component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write component iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector2d< T > >::upper_left ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only component iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

template<typename T , typename GridT >

T & slip::RegularVector2dField2d< T, GridT >::v ( const size_type  i, const size_type  j  )

inline

Subscript access to second element of the data contained in the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read/write reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1632 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

const T & slip::RegularVector2dField2d< T, GridT >::v ( const size_type  i, const size_type  j  ) const

inline

Subscript access to second element of the data contained in the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1640 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

template<typename Container2D >

void slip::RegularVector2dField2d< T, GridT >::vorticity ( const std::size_t  sch_order, Container2D &  result  ) const

inline

Computes finite differences vorticity (curl) of a RegularVector2dField2d.

Author

Ludovic Chatellier <ludovic.chatellier_AT_lea.univ-poitiers.fr>

Benoit Tremblais <benoit.tremblais_AT_sic.univ-poitiers.fr>

Date

2007/11/26

Version

0.0.1

Parameters

sch_order	Order of derivation scheme.
result	A Container2D which contain the result of the vorticity.

Precondition

sch_order must be >= 1

Derivation scheme is centered for even scheme orders and

1/2 step upwind of center for odd scheme orders.

Example:

//computes the vorticity at order 4 on the field Vxy
slip::Matrix<double> omega(Vxy.rows(),Vxy.cols());
Vxy.vorticity(4,omega);

Definition at line 1163 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

T & slip::RegularVector2dField2d< T, GridT >::Vx1 ( const size_type  i, const size_type  j  )

inline

Subscript access to first element of the data contained in the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read/write reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1585 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

const T & slip::RegularVector2dField2d< T, GridT >::Vx1 ( const size_type  i, const size_type  j  ) const

inline

Subscript access to the data contained in the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1593 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

T & slip::RegularVector2dField2d< T, GridT >::Vx2 ( const size_type  i, const size_type  j  )

inline

Subscript access to second element of the data contained in the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read/write reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1617 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

const T & slip::RegularVector2dField2d< T, GridT >::Vx2 ( const size_type  i, const size_type  j  ) const

inline

Subscript access to second element of the data contained in the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1625 of file RegularVector2dField2d.hpp.

size_type slip::GenericMultiComponent2d< slip::Vector2d< T > >::width ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

template<typename T , typename GridT >

void slip::RegularVector2dField2d< T, GridT >::write_gnuplot ( const std::string &  file_path_name ) const

inline

Writes a RegularVector2dField2d to a gnuplot file path name.

Parameters

file_path_name

Data format:

x y U(x,y) V(x,y)

Remarks

x = j and y = (dim1 - 1) - i

Definition at line 1908 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

void slip::RegularVector2dField2d< T, GridT >::write_tecplot ( const std::string &  file_path_name, const std::string &  title, const std::string &  zone  ) const

inline

Writes a RegularVector2dField2d to a tecplot file path name.

Parameters

file_path_name
title
zone

Data format:

TITLE= title

VARIABLES= X Y U V

ZONE T= zone, I= rows(), J= << cols()

x y U(x,y) V(x,y)

Remarks

x = j and y = (dim1 - 1) - i

Definition at line 1916 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

const GridT slip::RegularVector2dField2d< T, GridT >::x ( const size_type  i, const size_type  j  ) const

inline

Subscript access to the real x1 value of the indexed (i,j) point of the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1683 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

const GridT slip::RegularVector2dField2d< T, GridT >::x1 ( const size_type  i, const size_type  j  ) const

inline

Subscript access to the real x1 value of the indexed (i,j) point of the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1666 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

const GridT slip::RegularVector2dField2d< T, GridT >::x2 ( const size_type  i, const size_type  j  ) const

inline

Subscript access to the real x2 value of the indexed (i,j) point of the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1674 of file RegularVector2dField2d.hpp.

template<typename T , typename GridT >

const GridT slip::RegularVector2dField2d< T, GridT >::y ( const size_type  i, const size_type  j  ) const

inline

Subscript access to the real x2 value of the indexed (i,j) point of the RegularVector2dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 1691 of file RegularVector2dField2d.hpp.

Friends And Related Function Documentation

template<typename T, typename GridT>

friend class boost::serialization::access

friend

Definition at line 1288 of file RegularVector2dField2d.hpp.

template<typename T, typename GridT>

std::ostream& operator<< ( std::ostream &  out, const self &  a  )

friend

Write the RegularVector2dField2d to the ouput stream.

Parameters

out	output stream
a	RegularVector2dField2d to write to the output stream

Definition at line 1877 of file RegularVector2dField2d.hpp.

Member Data Documentation

const std::size_t slip::GenericMultiComponent2d< slip::Vector2d< T > >::COMPONENTS

staticinherited

Definition at line 284 of file GenericMultiComponent2d.hpp.

template<typename T, typename GridT>

const std::size_t slip::RegularVector2dField2d< T, GridT >::DIM = 2

static

Definition at line 214 of file RegularVector2dField2d.hpp.

---

The documentation for this class was generated from the following file:

• src/Container/RegularVector2dField2d.hpp
