slip::DenseVector3dField2d< T > Class Template Reference

This is a dense 2d Field containing Vector3d. This container statisfies the BidirectionnalContainer concepts of the STL. It is also an 2d extension of the RandomAccessContainer concept. That is to say the bracket element access is replaced by the double bracket element access. It is a specialization of GenericMultiComponent2d using Vector3d blocks. It implements arithmetic and mathematical operators and read/write methods (tecplot and gnuplot file format...). More...

#include <DenseVector3dField2d.hpp>

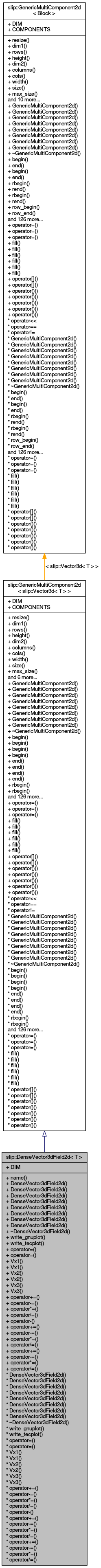

Inheritance diagram for slip::DenseVector3dField2d< T >:

Public Types
typedef slip::Vector3d< T >	value_type
typedef DenseVector3dField2d< T >	self
typedef GenericMultiComponent2d < slip::Vector3d< T > >	base
typedef value_type *	pointer
typedef const value_type *	const_pointer
typedef value_type &	reference
typedef const value_type &	const_reference
typedef ptrdiff_t	difference_type
typedef std::size_t	size_type
typedef pointer	iterator
typedef const_pointer	const_iterator
typedef std::reverse_iterator < iterator >	reverse_iterator
typedef std::reverse_iterator < const_iterator >	const_reverse_iterator
typedef pointer	row_iterator
typedef const_pointer	const_row_iterator
typedef slip::stride_iterator < pointer >	col_iterator
typedef slip::stride_iterator < const_pointer >	const_col_iterator
typedef std::reverse_iterator < iterator >	reverse_row_iterator
typedef std::reverse_iterator < const_iterator >	const_reverse_row_iterator
typedef std::reverse_iterator < col_iterator >	reverse_col_iterator
typedef std::reverse_iterator < const_col_iterator >	const_reverse_col_iterator
typedef slip::GenericMultiComponent2d < Vector3d< T > >::iterator2d	iterator2d
typedef T	vector3d_value_type
typedef vector3d_value_type *	vector3d_pointer
typedef const vector3d_value_type *	const_vector3d_pointer
typedef vector3d_value_type &	vector3d_reference
typedef const vector3d_value_type	const_vector3d_reference
typedef slip::kstride_iterator < vector3d_pointer, 2 >	vector3d_iterator
typedef slip::kstride_iterator < const_vector3d_pointer, 2 >	const_vector3d_iterator
typedef const GenericMultiComponent2d < slip::Vector3d< T > >	const_self
typedef slip::Matrix < slip::Vector3d< T > >::const_iterator2d	const_iterator2d
typedef slip::stride_iterator < pointer >	row_range_iterator
typedef slip::stride_iterator < const_pointer >	const_row_range_iterator
typedef slip::stride_iterator < col_iterator >	col_range_iterator
typedef slip::stride_iterator < const_col_iterator >	const_col_range_iterator
typedef slip::Matrix < slip::Vector3d< T > >::iterator2d_range	iterator2d_range
typedef slip::Matrix < slip::Vector3d< T > >::const_iterator2d_range	const_iterator2d_range
typedef slip::Vector3d< T > ::value_type	block_value_type
typedef block_value_type *	block_pointer
typedef const block_value_type *	const_block_pointer
typedef block_value_type &	block_reference
typedef const block_value_type	const_block_reference
typedef slip::kstride_iterator < typename slip::Vector3d< T > ::pointer, slip::Vector3d< T > ::SIZE >	component_iterator
typedef slip::kstride_iterator < typename slip::Vector3d< T > ::const_pointer, slip::Vector3d< T >::SIZE >	const_component_iterator
typedef std::reverse_iterator < iterator2d >	reverse_iterator2d
typedef std::reverse_iterator < const_iterator2d >	const_reverse_iterator2d
typedef std::reverse_iterator < row_range_iterator >	reverse_row_range_iterator
typedef std::reverse_iterator < const_row_range_iterator >	const_reverse_row_range_iterator
typedef std::reverse_iterator < col_range_iterator >	reverse_col_range_iterator
typedef std::reverse_iterator < const_col_range_iterator >	const_reverse_col_range_iterator
typedef std::reverse_iterator < iterator2d_range >	reverse_iterator2d_range
typedef std::reverse_iterator < const_iterator2d_range >	const_reverse_iterator2d_range
typedef std::reverse_iterator < component_iterator >	reverse_component_iterator
typedef std::reverse_iterator < const_component_iterator >	const_reverse_component_iterator
typedef component_iterator	component_row_iterator
typedef const_component_iterator	const_component_row_iterator
typedef slip::stride_iterator < block_pointer >	component_row_range_iterator
typedef slip::stride_iterator < const_block_pointer >	const_component_row_range_iterator
typedef std::reverse_iterator < component_row_iterator >	reverse_component_row_iterator
typedef std::reverse_iterator < const_component_row_iterator >	const_reverse_component_row_iterator
typedef std::reverse_iterator < component_row_range_iterator >	reverse_component_row_range_iterator
typedef std::reverse_iterator < const_component_row_range_iterator >	const_reverse_component_row_range_iterator
typedef slip::stride_iterator < block_pointer >	component_col_iterator
typedef slip::stride_iterator < const_block_pointer >	const_component_col_iterator
typedef slip::stride_iterator < block_pointer >	component_col_range_iterator
typedef slip::stride_iterator < const_block_pointer >	const_component_col_range_iterator
typedef std::reverse_iterator < component_col_iterator >	reverse_component_col_iterator
typedef std::reverse_iterator < const_component_col_iterator >	const_reverse_component_col_iterator
typedef std::reverse_iterator < component_col_range_iterator >	reverse_component_col_range_iterator
typedef std::reverse_iterator < const_component_col_range_iterator >	const_reverse_component_col_range_iterator
typedef slip::component_iterator2d_box < self, slip::Vector3d< T > ::SIZE >	component_iterator2d
typedef std::reverse_iterator < component_iterator2d >	reverse_component_iterator2d
typedef slip::const_component_iterator2d_box < const_self, slip::Vector3d < T >::SIZE >	const_component_iterator2d
typedef std::reverse_iterator < const_component_iterator2d >	const_reverse_component_iterator2d
typedef slip::component_iterator2d_range < self, slip::Vector3d< T > ::SIZE >	component_iterator2d_range
typedef std::reverse_iterator < component_iterator2d_range >	reverse_component_iterator2d_range
typedef slip::const_component_iterator2d_range < const_self, slip::Vector3d < T >::SIZE >	const_component_iterator2d_range
typedef std::reverse_iterator < const_component_iterator2d_range >	const_reverse_component_iterator2d_range
typedef iterator2d	default_iterator
typedef const_iterator2d	const_default_iterator

Public Member Functions
std::string	name () const
	Returns the name of the class. More...
void	resize (const size_type height, const size_type width, const slip::Vector3d< T > &val=slip::Vector3d< T >())
	Resizes a GenericMultiComponent2d. More...
size_type	dim1 () const
	Returns the number of rows (first dimension size) in the GenericMultiComponent2d. More...
size_type	rows () const
	Returns the number of rows (first dimension size) in the GenericMultiComponent2d. More...
size_type	height () const
	Returns the height (first dimension size) in the GenericMultiComponent2d. More...
size_type	dim2 () const
	Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...
size_type	columns () const
	Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...
size_type	cols () const
	Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...
size_type	width () const
	Returns the number of columns (second dimension size) in the GenericMultiComponent2d. More...
size_type	size () const
	Returns the number of elements in the GenericMultiComponent2d. More...
size_type	max_size () const
	Returns the maximal size (number of elements) in the GenericMultiComponent2d. More...
bool	empty () const
	Returns true if the GenericMultiComponent2d is empty. (Thus size() == 0) More...
void	swap (self &M)
	Swaps data with another GenericMultiComponent2d. More...
slip::Vector3d< T >	min () const
	Returns the min elements of the GenericMultiComponent2d according to the operator <. More...
slip::Vector3d< T >	max () const
	Returns the max elements of the GenericMultiComponent2d according to the operator <. More...
GenericMultiComponent2d < slip::Vector3d< T > > &	apply (slip::Vector3d< T >(*fun)(slip::Vector3d< T >))
	Returns the sums of the elements of the GenericMultiComponent2d. More...
GenericMultiComponent2d < slip::Vector3d< T > > &	apply (slip::Vector3d< T >(*fun)(const slip::Vector3d< T > &))
	Applys the one-parameter C-function fun to each element of the GenericMultiComponent2d. More...
Constructors & Destructors
	DenseVector3dField2d ()
	Constructs a DenseVector3dField2d. More...
	DenseVector3dField2d (const size_type height, const size_type width)
	Constructs a DenseVector3dField2d. More...
	DenseVector3dField2d (const size_type height, const size_type width, const slip::Vector3d< T > &val)
	Constructs a DenseVector3dField2d initialized by the scalar value val. More...
	DenseVector3dField2d (const size_type height, const size_type width, const T *val)
	Constructs a DenseVector3dField2d initialized by an array val. More...
	DenseVector3dField2d (const size_type height, const size_type width, const slip::Vector3d< T > *val)
	Constructs a DenseVector3dField2d initialized by an array val. More...
template<typename InputIterator >
	DenseVector3dField2d (const size_type height, const size_type width, InputIterator first, InputIterator last)
	Contructs a DenseVector3dField2d from a range. More...
template<typename InputIterator >
	DenseVector3dField2d (const size_type height, const size_type width, InputIterator first1, InputIterator last1, InputIterator first2, InputIterator first3)
	Contructs a DenseVector3dField2d from a 3 ranges. More...
	DenseVector3dField2d (const self &rhs)
	Constructs a copy of the DenseVector3dField2d rhs. More...
	~DenseVector3dField2d ()
	Destructor of the DenseVector3dField2d. More...
i/o operators
void	write_gnuplot (const std::string &file_path_name)
	Writes a DenseVector3dField2d to a gnuplot file path name. More...
void	write_tecplot (const std::string &file_path_name, const std::string &title, const std::string &zone)
	Writes a DenseVector3dField2d to a tecplot file path name. More...
Assignment operators and methods
self &	operator= (const slip::Vector3d< T > &val)
	Affects all the element of the DenseVector3dField2d by val. More...
self &	operator= (const T &val)
	Affects all the element of the DenseVector3dField2d by val. More...
Element access operators
T &	Vx1 (const size_type i, const size_type j)
	Subscript access to first element of the data contained in the DenseVector3dField2d. More...
const T &	Vx1 (const size_type i, const size_type j) const
	Subscript access to the data contained in the DenseVector3dField2d. More...
T &	Vx2 (const size_type i, const size_type j)
	Subscript access to second element of the data contained in the DenseVector3dField2d. More...
const T &	Vx2 (const size_type i, const size_type j) const
	Subscript access to the data contained in the DenseVector3dField2d. More...
T &	Vx3 (const size_type i, const size_type j)
	Subscript access to third element of the data contained in the DenseVector3dField2d. More...
const T &	Vx3 (const size_type i, const size_type j) const
	Subscript access to the data contained in the DenseVector3dField2d. More...
Arithmetic operators
self &	operator+= (const T &val)
	Add val to each element of the DenseVector3dField2d. More...
self &	operator-= (const T &val)
self &	operator*= (const T &val)
self &	operator/= (const T &val)
self	operator- () const
self &	operator+= (const slip::Vector3d< T > &val)
	Add val to each element of the DenseVector3dField2d. More...
self &	operator-= (const slip::Vector3d< T > &val)
self &	operator*= (const slip::Vector3d< T > &val)
self &	operator/= (const slip::Vector3d< T > &val)
self &	operator+= (const self &rhs)
self &	operator-= (const self &rhs)
self &	operator*= (const self &rhs)
self &	operator/= (const self &rhs)
iterators
iterator	begin ()
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_iterator	begin () const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_iterator	begin (const std::size_t component)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_iterator	begin (const std::size_t component) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
iterator	end ()
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_iterator	end () const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_iterator	end (const std::size_t component)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_iterator	end (const std::size_t component) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_iterator	rbegin ()
	Returns a read/write reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
const_reverse_iterator	rbegin () const
	Returns a read-only (constant) reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
reverse_component_iterator	rbegin (const std::size_t component)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_reverse_component_iterator	rbegin (const std::size_t component) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_iterator	rend ()
	Returns a read/write reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
const_reverse_iterator	rend () const
	Returns a read-only (constant) reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
reverse_component_iterator	rend (const std::size_t component)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_reverse_component_iterator	rend (const std::size_t component) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
row_iterator	row_begin (const size_type row)
	Returns a read/write iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_row_iterator	row_begin (const size_type row) const
	Returns a read-only iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
row_range_iterator	row_begin (const size_type row, const slip::Range< int > &range)
	Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_row_range_iterator	row_begin (const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
component_row_iterator	row_begin (const std::size_t component, const std::size_t row)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_row_iterator	row_begin (const std::size_t component, const std::size_t row) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_row_range_iterator	row_begin (const std::size_t component, const size_type row, const slip::Range< int > &range)
	Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_component_row_range_iterator	row_begin (const std::size_t component, const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
row_iterator	row_end (const size_type row)
	Returns a read/write iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_row_iterator	row_end (const size_type row) const
	Returns a read-only iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
row_range_iterator	row_end (const size_type row, const slip::Range< int > &range)
	Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_row_range_iterator	row_end (const size_type row, const slip::Range< int > &range) const
	Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
component_row_iterator	row_end (const std::size_t component, const std::size_t row)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_row_iterator	row_end (const std::size_t component, const std::size_t row) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_row_range_iterator	row_end (const std::size_t component, const size_type row, const slip::Range< int > &range)
	Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_component_row_range_iterator	row_end (const std::size_t component, const size_type row, const slip::Range< int > &range) const
	Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
col_iterator	col_begin (const size_type col)
	Returns a read/write iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...
const_col_iterator	col_begin (const size_type col) const
	Returns a read-only iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...
col_range_iterator	col_begin (const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_col_range_iterator	col_begin (const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
component_col_iterator	col_begin (const std::size_t component, const std::size_t col)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_col_iterator	col_begin (const std::size_t component, const std::size_t col) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_col_range_iterator	col_begin (const std::size_t component, const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_component_col_range_iterator	col_begin (const std::size_t component, const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
col_iterator	col_end (const size_type col)
	Returns a read/write iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...
const_col_iterator	col_end (const size_type col) const
	Returns a read-only iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns. More...
col_range_iterator	col_end (const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_col_range_iterator	col_end (const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
component_col_iterator	col_end (const std::size_t component, const std::size_t col)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_component_col_iterator	col_end (const std::size_t component, const std::size_t col) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
component_col_range_iterator	col_end (const std::size_t component, const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
const_component_col_range_iterator	col_end (const std::size_t component, const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range. More...
reverse_row_iterator	row_rbegin (const size_type row)
	Returns a read/write reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
const_reverse_row_iterator	row_rbegin (const size_type row) const
	Returns a read-only reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
reverse_row_range_iterator	row_rbegin (const size_type row, const slip::Range< int > &range)
	Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_row_range_iterator	row_rbegin (const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_component_row_iterator	row_rbegin (const std::size_t component, const std::size_t row)
	Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_reverse_component_row_iterator	row_rbegin (const std::size_t component, const std::size_t row) const
	Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_component_row_range_iterator	row_rbegin (const std::size_t component, const size_type row, const slip::Range< int > &range)
	Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_component_row_range_iterator	row_rbegin (const std::size_t component, const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_row_iterator	row_rend (const size_type row)
	Returns a read/write reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
const_reverse_row_iterator	row_rend (const size_type row) const
	Returns a read-only reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
reverse_row_range_iterator	row_rend (const size_type row, const slip::Range< int > &range)
	Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_row_range_iterator	row_rend (const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_component_row_iterator	row_rend (const std::size_t component, const std::size_t row)
	Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
const_reverse_component_row_iterator	row_rend (const std::size_t component, const std::size_t row) const
	Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_component_row_range_iterator	row_rend (const std::size_t component, const size_type row, const slip::Range< int > &range)
	Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_component_row_range_iterator	row_rend (const std::size_t component, const size_type row, const slip::Range< int > &range) const
	Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_col_iterator	col_rbegin (const size_type col)
	Returns a read/write reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...
const_reverse_col_iterator	col_rbegin (const size_type col) const
	Returns a read-only reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...
reverse_col_range_iterator	col_rbegin (const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_col_range_iterator	col_rbegin (const size_type col, const slip::Range< int > &range) const
	Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_component_col_iterator	col_rbegin (const std::size_t component, const std::size_t col)
	Returns a read/write iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
const_reverse_component_col_iterator	col_rbegin (const std::size_t component, const std::size_t col) const
	Returns a read-only (constant) iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order. More...
reverse_component_col_range_iterator	col_rbegin (const std::size_t component, const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_component_col_range_iterator	col_rbegin (const std::size_t component, const size_type col, const slip::Range< int > &range) const
	Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_col_iterator	col_rend (const size_type col)
	Returns a read/write reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...
const_reverse_col_iterator	col_rend (const size_type col) const
	Returns a read-only reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order. More...
reverse_col_range_iterator	col_rend (const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_col_range_iterator	col_rend (const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
reverse_component_col_iterator	col_rend (const std::size_t component, const std::size_t col)
	Returns a read/write iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order. More...
const_reverse_component_col_iterator	col_rend (const std::size_t component, const std::size_t col) const
	Returns a read-only (constant) iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order. More...
reverse_component_col_range_iterator	col_rend (const std::size_t component, const size_type col, const slip::Range< int > &range)
	Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
const_reverse_component_col_range_iterator	col_rend (const std::size_t component, const size_type col, const slip::Range< int > &range) const
	Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range. More...
iterator2d	upper_left ()
	Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...
const_iterator2d	upper_left () const
	Returns a read-only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...
iterator2d	upper_left (const Box2d< int > &box)
	Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...
const_iterator2d	upper_left (const Box2d< int > &box) const
	Returns a read only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...
iterator2d_range	upper_left (const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
const_iterator2d_range	upper_left (const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
iterator2d_range	upper_left (const Range< int > &range)
	Returns a read/write iterator2d_range that points to the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. More...
const_iterator2d_range	upper_left (const Range< int > &range) const
	Returns a read-only iterator2d_range that points to the to the upper left element of the Range range associated to the GenericMultiComponent2d. More...
component_iterator2d	upper_left (const std::size_t component)
	Returns a read/write component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...
const_component_iterator2d	upper_left (const std::size_t component) const
	Returns a read only const_component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d. More...
component_iterator2d	upper_left (const std::size_t component, const Box2d< int > &box)
	Returns a read/write component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...
const_component_iterator2d	upper_left (const std::size_t component, const Box2d< int > &box) const
	Returns a read only component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d. More...
component_iterator2d_range	upper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write component iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
const_component_iterator2d_range	upper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only component iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
iterator2d	bottom_right ()
	Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...
const_iterator2d	bottom_right () const
	Returns a read-only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...
iterator2d	bottom_right (const Box2d< int > &box)
	Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...
const_iterator2d	bottom_right (const Box2d< int > &box) const
	Returns a read only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...
iterator2d_range	bottom_right (const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
const_iterator2d_range	bottom_right (const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
iterator2d_range	bottom_right (const Range< int > &range)
	Returns a read/write iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. More...
const_iterator2d_range	bottom_right (const Range< int > &range) const
	Returns a read-only const_iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. More...
component_iterator2d	bottom_right (const std::size_t component)
	Returns a read/write component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...
const_component_iterator2d	bottom_right (const std::size_t component) const
	Returns a read only const_component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d. More...
component_iterator2d	bottom_right (const std::size_t component, const Box2d< int > &box)
	Returns a read/write component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...
const_component_iterator2d	bottom_right (const std::size_t component, const Box2d< int > &box) const
	Returns a read only component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d. More...
component_iterator2d_range	bottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
const_component_iterator2d_range	bottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. More...
reverse_iterator2d	rupper_left ()
	Returns a read/write reverse iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...
const_reverse_iterator2d	rupper_left () const
	Returns a read only reverse iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...
reverse_iterator2d	rupper_left (const Box2d< int > &box)
	Returns a read/write reverse iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_iterator2d	rupper_left (const Box2d< int > &box) const
	Returns a read only reverse iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_iterator2d_range	rupper_left (const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_iterator2d_range	rupper_left (const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_iterator2d_range	rupper_left (const Range< int > &range)
	Returns a read/write reverse_iterator2d_range that points to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...
const_reverse_iterator2d_range	rupper_left (const Range< int > &range) const
	Returns a read-only reverse_iterator2d_range that points to the to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...
reverse_component_iterator2d	rupper_left (const std::size_t component)
	Returns a read/write reverse component iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...
const_reverse_component_iterator2d	rupper_left (const std::size_t component) const
	Returns a read only reverse component iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order. More...
reverse_component_iterator2d	rupper_left (const std::size_t component, const Box2d< int > &box)
	Returns a read/write reverse component iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_component_iterator2d	rupper_left (const std::size_t component, const Box2d< int > &box) const
	Returns a read only reverse component iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_component_iterator2d_range	rupper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write reverse component iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_component_iterator2d_range	rupper_left (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only reverse_component_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_iterator2d	rbottom_right ()
	Returns a read/write reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_iterator2d	rbottom_right () const
	Returns a read only reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_iterator2d	rbottom_right (const Box2d< int > &box)
	Returns a read/write reverse iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d. More...
const_reverse_iterator2d	rbottom_right (const Box2d< int > &box) const
	Returns a read-only reverse iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d. More...
reverse_iterator2d_range	rbottom_right (const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_iterator2d_range	rbottom_right (const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order. More...
reverse_iterator2d_range	rbottom_right (const Range< int > &range)
	Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...
const_reverse_iterator2d_range	rbottom_right (const Range< int > &range) const
	Returns a read_only reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order. More...
reverse_component_iterator2d	rbottom_right (const std::size_t component)
	Returns a read/write reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_component_iterator2d	rbottom_right (const std::size_t component) const
	Returns a read only reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order. More...
reverse_component_iterator2d	rbottom_right (const std::size_t component, const Box2d< int > &box)
	Returns a read/write reverse component iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d. More...
const_reverse_component_iterator2d	rbottom_right (const std::size_t component, const Box2d< int > &box) const
	Returns a read-only reverse component iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d. More...
reverse_component_iterator2d_range	rbottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range)
	Returns a read/write reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order. More...
const_reverse_component_iterator2d_range	rbottom_right (const std::size_t component, const Range< int > &row_range, const Range< int > &col_range) const
	Returns a read-only reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order. More...
Assignment operators and methods
void	fill (const slip::Vector3d< T > &value)
	Fills the container range [begin(),begin()+size()) with copies of value. More...
void	fill (const typename slip::Vector3d< T >::pointer value)
	Fills the container range [begin(),begin()+size()) with a copy of the value array. More...
void	fill (const slip::Vector3d< T > *value)
	Fills the container range [begin(),begin()+size()) with a copy of the value array. More...
void	fill (InputIterator first, InputIterator last)
	Fills the container range [begin(),begin()+size()) with a copy of the range [first,last) More...
void	fill (std::vector< InputIterator > first_iterators_list, InputIterator last)
	Fills the container range [begin(),begin()+size()) with a copy of the range [first,last) More...
void	fill (std::size_t component, InputIterator first, InputIterator last)
	Fills the container range [begin(),begin()+size()) with a copy of the range [first,last) More...
Element access operators
Less than comparison operator (GenericMultiComponent2d ordering relation) Parameters x A GenericMultiComponent2d y A GenericMultiComponent2d of the same type of x Returns true iff x is lexicographically less than y Precondition x.size() == y.size() More than comparison operator Parameters x A GenericMultiComponent2d y A GenericMultiComponent2d of the same type of x Returns true iff y > x Precondition x.size() == y.size() Less than equal comparison operator Parameters x A GenericMultiComponent2d y A GenericMultiComponent2d of the same type of x Returns true iff !(y > x) Precondition x.size() == y.size() More than equal comparison operator Parameters x A GenericMultiComponent2d y A GenericMultiComponent2d of the same type of x Returns true iff !(x < y) Precondition x.size() == y.size()
pointer	operator[] (const size_type i)
	Subscript access to the row datas contained in the GenericMultiComponent2d. More...
const_pointer	operator[] (const size_type i) const
	Subscript access to the row datas contained in the GenericMultiComponent2d. More...
reference	operator() (const size_type i, const size_type j)
	Subscript access to the data contained in the GenericMultiComponent2d. More...
const_reference	operator() (const size_type i, const size_type j) const
	Subscript access to the data contained in the GenericMultiComponent2d. More...
reference	operator() (const Point2d< size_type > &point2d)
	Subscript access to the data contained in the GenericMultiComponent2d. More...
const_reference	operator() (const Point2d< size_type > &point2d) const
	Subscript access to the data contained in the GenericMultiComponent2d. More...
self	operator() (const Range< int > &row_range, const Range< int > &col_range)
	Subscript access to the data contained in the GenericMultiComponent2d. More...

Static Public Attributes
static const std::size_t	DIM = 2
static const std::size_t	COMPONENTS

Friends
class	boost::serialization::access

Detailed Description

template<typename T>
class slip::DenseVector3dField2d< T >

This is a dense 2d Field containing Vector3d. This container statisfies the BidirectionnalContainer concepts of the STL. It is also an 2d extension of the RandomAccessContainer concept. That is to say the bracket element access is replaced by the double bracket element access. It is a specialization of GenericMultiComponent2d using Vector3d blocks. It implements arithmetic and mathematical operators and read/write methods (tecplot and gnuplot file format...).

Author

Benoit Tremblais <tremblais_AT_sic.univ-poitiers.fr>

Version

0.0.2

Date

2014/03/25

Since

1.0.0

Parameters

T	Type of object in the DenseVector3dField2d

Axis conventions:

axis and notation conventions

Definition at line 118 of file DenseVector3dField2d.hpp.

Member Typedef Documentation

template<typename T>

typedef GenericMultiComponent2d<slip::Vector3d<T> > slip::DenseVector3dField2d< T >::base

Definition at line 146 of file DenseVector3dField2d.hpp.

typedef block_value_type* slip::GenericMultiComponent2d< slip::Vector3d< T > >::block_pointer

inherited

Definition at line 229 of file GenericMultiComponent2d.hpp.

typedef block_value_type& slip::GenericMultiComponent2d< slip::Vector3d< T > >::block_reference

inherited

Definition at line 231 of file GenericMultiComponent2d.hpp.

typedef slip::Vector3d< T > ::value_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::block_value_type

inherited

Definition at line 228 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef slip::stride_iterator<pointer> slip::DenseVector3dField2d< T >::col_iterator

Definition at line 166 of file DenseVector3dField2d.hpp.

typedef slip::stride_iterator<col_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_range_iterator

inherited

Definition at line 223 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<block_pointer> slip::GenericMultiComponent2d< slip::Vector3d< T > >::component_col_iterator

inherited

Definition at line 260 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<block_pointer> slip::GenericMultiComponent2d< slip::Vector3d< T > >::component_col_range_iterator

inherited

Definition at line 262 of file GenericMultiComponent2d.hpp.

typedef slip::kstride_iterator<typename slip::Vector3d< T > ::pointer,slip::Vector3d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector3d< T > >::component_iterator

inherited

Definition at line 233 of file GenericMultiComponent2d.hpp.

typedef slip::component_iterator2d_box<self,slip::Vector3d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector3d< T > >::component_iterator2d

inherited

Definition at line 269 of file GenericMultiComponent2d.hpp.

typedef slip::component_iterator2d_range<self,slip::Vector3d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector3d< T > >::component_iterator2d_range

inherited

Definition at line 274 of file GenericMultiComponent2d.hpp.

typedef component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::component_row_iterator

inherited

Definition at line 251 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<block_pointer> slip::GenericMultiComponent2d< slip::Vector3d< T > >::component_row_range_iterator

inherited

Definition at line 253 of file GenericMultiComponent2d.hpp.

typedef const block_value_type* slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_block_pointer

inherited

Definition at line 230 of file GenericMultiComponent2d.hpp.

typedef const block_value_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_block_reference

inherited

Definition at line 232 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef slip::stride_iterator<const_pointer> slip::DenseVector3dField2d< T >::const_col_iterator

Definition at line 167 of file DenseVector3dField2d.hpp.

typedef slip::stride_iterator<const_col_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_col_range_iterator

inherited

Definition at line 224 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<const_block_pointer> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_component_col_iterator

inherited

Definition at line 261 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<const_block_pointer> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_component_col_range_iterator

inherited

Definition at line 263 of file GenericMultiComponent2d.hpp.

typedef slip::kstride_iterator<typename slip::Vector3d< T > ::const_pointer,slip::Vector3d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_component_iterator

inherited

Definition at line 234 of file GenericMultiComponent2d.hpp.

typedef slip::const_component_iterator2d_box<const_self,slip::Vector3d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_component_iterator2d

inherited

Definition at line 271 of file GenericMultiComponent2d.hpp.

typedef slip::const_component_iterator2d_range<const_self,slip::Vector3d< T > ::SIZE> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_component_iterator2d_range

inherited

Definition at line 276 of file GenericMultiComponent2d.hpp.

typedef const_component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_component_row_iterator

inherited

Definition at line 252 of file GenericMultiComponent2d.hpp.

typedef slip::stride_iterator<const_block_pointer> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_component_row_range_iterator

inherited

Definition at line 254 of file GenericMultiComponent2d.hpp.

typedef const_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_default_iterator

inherited

Definition at line 281 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef const_pointer slip::DenseVector3dField2d< T >::const_iterator

Definition at line 158 of file DenseVector3dField2d.hpp.

typedef slip::Matrix<slip::Vector3d< T > >::const_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_iterator2d

inherited

Definition at line 220 of file GenericMultiComponent2d.hpp.

typedef slip::Matrix<slip::Vector3d< T > >::const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_iterator2d_range

inherited

Definition at line 226 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef const value_type* slip::DenseVector3dField2d< T >::const_pointer

Definition at line 150 of file DenseVector3dField2d.hpp.

template<typename T>

typedef const value_type& slip::DenseVector3dField2d< T >::const_reference

Definition at line 152 of file DenseVector3dField2d.hpp.

template<typename T>

typedef std::reverse_iterator<const_col_iterator> slip::DenseVector3dField2d< T >::const_reverse_col_iterator

Definition at line 172 of file DenseVector3dField2d.hpp.

typedef std::reverse_iterator<const_col_range_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_col_range_iterator

inherited

Definition at line 245 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_col_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_component_col_iterator

inherited

Definition at line 265 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_col_range_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_component_col_range_iterator

inherited

Definition at line 267 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_component_iterator

inherited

Definition at line 249 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_iterator2d> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_component_iterator2d

inherited

Definition at line 272 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_iterator2d_range> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_component_iterator2d_range

inherited

Definition at line 277 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_row_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_component_row_iterator

inherited

Definition at line 256 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_component_row_range_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_component_row_range_iterator

inherited

Definition at line 258 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef std::reverse_iterator<const_iterator> slip::DenseVector3dField2d< T >::const_reverse_iterator

Definition at line 161 of file DenseVector3dField2d.hpp.

typedef std::reverse_iterator<const_iterator2d> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_iterator2d

inherited

Definition at line 241 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<const_iterator2d_range> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_iterator2d_range

inherited

Definition at line 247 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef std::reverse_iterator<const_iterator> slip::DenseVector3dField2d< T >::const_reverse_row_iterator

Definition at line 170 of file DenseVector3dField2d.hpp.

typedef std::reverse_iterator<const_row_range_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_reverse_row_range_iterator

inherited

Definition at line 243 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef const_pointer slip::DenseVector3dField2d< T >::const_row_iterator

Definition at line 165 of file DenseVector3dField2d.hpp.

typedef slip::stride_iterator<const_pointer> slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_row_range_iterator

inherited

Definition at line 222 of file GenericMultiComponent2d.hpp.

typedef const GenericMultiComponent2d<slip::Vector3d< T > > slip::GenericMultiComponent2d< slip::Vector3d< T > >::const_self

inherited

Definition at line 197 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef slip::kstride_iterator<const_vector3d_pointer,2> slip::DenseVector3dField2d< T >::const_vector3d_iterator

Definition at line 182 of file DenseVector3dField2d.hpp.

template<typename T>

typedef const vector3d_value_type* slip::DenseVector3dField2d< T >::const_vector3d_pointer

Definition at line 178 of file DenseVector3dField2d.hpp.

template<typename T>

typedef const vector3d_value_type slip::DenseVector3dField2d< T >::const_vector3d_reference

Definition at line 180 of file DenseVector3dField2d.hpp.

typedef iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::default_iterator

inherited

Definition at line 280 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef ptrdiff_t slip::DenseVector3dField2d< T >::difference_type

Definition at line 154 of file DenseVector3dField2d.hpp.

template<typename T>

typedef pointer slip::DenseVector3dField2d< T >::iterator

Definition at line 157 of file DenseVector3dField2d.hpp.

template<typename T>

typedef slip::GenericMultiComponent2d<Vector3d<T> >::iterator2d slip::DenseVector3dField2d< T >::iterator2d

Definition at line 174 of file DenseVector3dField2d.hpp.

typedef slip::Matrix<slip::Vector3d< T > >::iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::iterator2d_range

inherited

Definition at line 225 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef value_type* slip::DenseVector3dField2d< T >::pointer

Definition at line 149 of file DenseVector3dField2d.hpp.

template<typename T>

typedef value_type& slip::DenseVector3dField2d< T >::reference

Definition at line 151 of file DenseVector3dField2d.hpp.

template<typename T>

typedef std::reverse_iterator<col_iterator> slip::DenseVector3dField2d< T >::reverse_col_iterator

Definition at line 171 of file DenseVector3dField2d.hpp.

typedef std::reverse_iterator<col_range_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_col_range_iterator

inherited

Definition at line 244 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_col_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_component_col_iterator

inherited

Definition at line 264 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_col_range_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_component_col_range_iterator

inherited

Definition at line 266 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_component_iterator

inherited

Definition at line 248 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_iterator2d> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_component_iterator2d

inherited

Definition at line 270 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_iterator2d_range> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_component_iterator2d_range

inherited

Definition at line 275 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_row_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_component_row_iterator

inherited

Definition at line 255 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<component_row_range_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_component_row_range_iterator

inherited

Definition at line 257 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef std::reverse_iterator<iterator> slip::DenseVector3dField2d< T >::reverse_iterator

Definition at line 160 of file DenseVector3dField2d.hpp.

typedef std::reverse_iterator<iterator2d> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_iterator2d

inherited

Definition at line 240 of file GenericMultiComponent2d.hpp.

typedef std::reverse_iterator<iterator2d_range> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_iterator2d_range

inherited

Definition at line 246 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef std::reverse_iterator<iterator> slip::DenseVector3dField2d< T >::reverse_row_iterator

Definition at line 169 of file DenseVector3dField2d.hpp.

typedef std::reverse_iterator<row_range_iterator> slip::GenericMultiComponent2d< slip::Vector3d< T > >::reverse_row_range_iterator

inherited

Definition at line 242 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef pointer slip::DenseVector3dField2d< T >::row_iterator

Definition at line 164 of file DenseVector3dField2d.hpp.

typedef slip::stride_iterator<pointer> slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_range_iterator

inherited

Definition at line 221 of file GenericMultiComponent2d.hpp.

template<typename T>

typedef DenseVector3dField2d<T> slip::DenseVector3dField2d< T >::self

Definition at line 145 of file DenseVector3dField2d.hpp.

template<typename T>

typedef std::size_t slip::DenseVector3dField2d< T >::size_type

Definition at line 155 of file DenseVector3dField2d.hpp.

template<typename T>

typedef slip::Vector3d<T> slip::DenseVector3dField2d< T >::value_type

Definition at line 144 of file DenseVector3dField2d.hpp.

template<typename T>

typedef slip::kstride_iterator<vector3d_pointer,2> slip::DenseVector3dField2d< T >::vector3d_iterator

Definition at line 181 of file DenseVector3dField2d.hpp.

template<typename T>

typedef vector3d_value_type* slip::DenseVector3dField2d< T >::vector3d_pointer

Definition at line 177 of file DenseVector3dField2d.hpp.

template<typename T>

typedef vector3d_value_type& slip::DenseVector3dField2d< T >::vector3d_reference

Definition at line 179 of file DenseVector3dField2d.hpp.

template<typename T>

typedef T slip::DenseVector3dField2d< T >::vector3d_value_type

Definition at line 176 of file DenseVector3dField2d.hpp.

Constructor & Destructor Documentation

template<typename T>

slip::DenseVector3dField2d< T >::DenseVector3dField2d ( )

inline

Constructs a DenseVector3dField2d.

Definition at line 194 of file DenseVector3dField2d.hpp.

template<typename T>

slip::DenseVector3dField2d< T >::DenseVector3dField2d ( const size_type  height, const size_type  width  )

inline

Constructs a DenseVector3dField2d.

Parameters

height	first dimension of the DenseVector3dField2d
width	second dimension of the DenseVector3dField2d

Definition at line 203 of file DenseVector3dField2d.hpp.

template<typename T>

slip::DenseVector3dField2d< T >::DenseVector3dField2d ( const size_type  height, const size_type  width, const slip::Vector3d< T > &  val  )

inline

Constructs a DenseVector3dField2d initialized by the scalar value val.

Parameters

height	first dimension of the DenseVector3dField2d
width	second dimension of the DenseVector3dField2d
val	initialization value of the elements

Definition at line 214 of file DenseVector3dField2d.hpp.

template<typename T>

slip::DenseVector3dField2d< T >::DenseVector3dField2d ( const size_type  height, const size_type  width, const T *  val  )

inline

Constructs a DenseVector3dField2d initialized by an array val.

Parameters

height	first dimension of the DenseVector3dField2d
width	second dimension of the DenseVector3dField2d
val	initialization linear array value of the elements

Definition at line 226 of file DenseVector3dField2d.hpp.

template<typename T>

slip::DenseVector3dField2d< T >::DenseVector3dField2d ( const size_type  height, const size_type  width, const slip::Vector3d< T > *  val  )

inline

Constructs a DenseVector3dField2d initialized by an array val.

Parameters

height	first dimension of the DenseVector3dField2d
width	second dimension of the DenseVector3dField2d
val	initialization array value of the elements

Definition at line 238 of file DenseVector3dField2d.hpp.

template<typename T>

template<typename InputIterator >

slip::DenseVector3dField2d< T >::DenseVector3dField2d ( const size_type  height, const size_type  width, InputIterator  first, InputIterator  last  )

inline

Contructs a DenseVector3dField2d from a range.

Parameters

height	first dimension of the DenseVector3dField2d
width	second dimension of the DenseVector3dField2d
first	An input iterator.
last	An input iterator.

Create a DenseVector3dField2d consisting of copies of the elements from [first,last).

Definition at line 256 of file DenseVector3dField2d.hpp.

template<typename T>

template<typename InputIterator >

slip::DenseVector3dField2d< T >::DenseVector3dField2d ( const size_type  height, const size_type  width, InputIterator  first1, InputIterator  last1, InputIterator  first2, InputIterator  first3  )

inline

Contructs a DenseVector3dField2d from a 3 ranges.

Parameters

height	first dimension of the DenseVector3dField2d
width	second dimension of the DenseVector3dField2d
first1	An input iterator.
last1	An input iterator.
first2	An input iterator.
first3	An input iterator.

Create a DenseVector3dField2d consisting of copies of the elements from [first1,last1), [first2,first2 + (last1 - first1)), [first3,first3 + (last1 - first1)),

Definition at line 282 of file DenseVector3dField2d.hpp.

template<typename T>

slip::DenseVector3dField2d< T >::DenseVector3dField2d ( const self &  rhs )

inline

Constructs a copy of the DenseVector3dField2d rhs.

Definition at line 303 of file DenseVector3dField2d.hpp.

template<typename T>

slip::DenseVector3dField2d< T >::~DenseVector3dField2d ( )

inline

Destructor of the DenseVector3dField2d.

Definition at line 310 of file DenseVector3dField2d.hpp.

Member Function Documentation

GenericMultiComponent2d<slip::Vector3d< T > >& slip::GenericMultiComponent2d< slip::Vector3d< T > >::apply ( slip::Vector3d< T > (*)(slip::Vector3d< T > )  fun )

inherited

Returns the sums of the elements of the GenericMultiComponent2d.

Precondition

size() != 0

Applys the one-parameter C-function fun to each element of the GenericMultiComponent2d

Parameters

fun	The one-parameter C function

Returns

the resulting GenericMultiComponent2d

GenericMultiComponent2d<slip::Vector3d< T > >& slip::GenericMultiComponent2d< slip::Vector3d< T > >::apply ( slip::Vector3d< T > (*)(const slip::Vector3d< T > &)  fun )

inherited

Applys the one-parameter C-function fun to each element of the GenericMultiComponent2d.

Parameters

fun	The one-const-parameter C function

Returns

the resulting GenericMultiComponent2d

iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::begin ( )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns

begin iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2 in S
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

const_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::begin ( ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns

const begin iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of A1 and A2 in S
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::begin ( const std::size_t  component )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

begin component_iterator value

const_component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::begin ( const std::size_t  component ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

const begin component_iterator value

iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( )

inherited

Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the elements of A1 in A2
std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( ) const

inherited

Returns a read-only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Returns

begin const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the elements of A1 in A2
std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const Box2d< int > &  box )

inherited

Returns a read/write iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);
 slip::Box2d<int> box(1,1,3,2);
//copy the elements of A1 inside the box which upper_left element
//is located in (1,1) and the bottom right element is in (3,2)
std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const Box2d< int > &  box ) const

inherited

Returns a read only iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);
 slip::Box2d<int> box(1,1,3,2);
//copy the elements of A1 inside the box which upper_left element
//is located in (1,1) and the bottom right element is in (3,2)
std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> row_range(0,A1.dim2()-1,2);
 slip::Range<int> col_range(0,A1.dim1()-1,2);
//copy the elements of A1 within the ranges row_range and col_range
//in A2
std::copy(A1.upper_left(row_range,col_range),
A1.bottom_right(row_range,col_range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> row_range(0,A1.dim2()-1,2);
 slip::Range<int> col_range(0,A1.dim1()-1,2);
//copy the elements of A1 within the ranges row_range and col_range
//in A2
std::copy(A1.upper_left(row_range,col_range),
A1.bottom_right(row_range,col_range),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const Range< int > &  range )

inherited

Returns a read/write iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of A1 within the range range
//in A2
std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const Range< int > &  range ) const

inherited

Returns a read-only const_iterator2d_range that points to the past the end bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of A1 within the range range
//in A2
std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const std::size_t  component )

inherited

Returns a read/write component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Parameters

component

The component number.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the first component of the elements of A1 in A2
std::copy(A1.upper_left(0),A1.bottom_right(0),A2.upper_left(0));

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const std::size_t  component ) const

inherited

Returns a read only const_component_iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the GenericMultiComponent2d.

Parameters

component

The component number.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const std::size_t  component, const Box2d< int > &  box  )

inherited

Returns a read/write component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const std::size_t  component, const Box2d< int > &  box  ) const

inherited

Returns a read only component iterator2d that points to the past the end element of the GenericMultiComponent2d. It points to past the end element of the bottom right element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::bottom_right ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only component iterator2d_range that points to the past the end bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_begin ( const size_type  col )

inherited

Returns a read/write iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column to iterate.

Returns

begin col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the column 0 of A1 in the column 1 of A2
std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

const_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_begin ( const size_type  col ) const

inherited

Returns a read-only iterator that points to the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column to iterate.

Returns

begin const_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the column 0 of A1 in the column 1 of A2
std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_begin ( const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate

Returns

begin col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

const_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_begin ( const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin const_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

component_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_begin ( const std::size_t  component, const std::size_t  col  )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

begin component_col_iterator value.

const_component_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_begin ( const std::size_t  component, const std::size_t  col  ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

const begin component_col_iterator value

component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_begin ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate

Returns

begin component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the first component of the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

const_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_begin ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin const_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the first component of the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_end ( const size_type  col )

inherited

Returns a read/write iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column to iterate.

Returns

begin col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the column 0 of A1 in the column 1 of A2
std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

const_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_end ( const size_type  col ) const

inherited

Returns a read-only iterator that points one past the end element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns.

Parameters

col	The index of the column

Returns

begin const_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the column 0 of A1 in the column 1 of A2
std::copy(A1.col_begin(0),A1.col_end(0),A2.col_begin(1));

col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_end ( const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

const_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_end ( const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate

Returns

begin const_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,range),A1.col_end(0,range),A2.col_begin(1));

component_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_end ( const std::size_t  component, const std::size_t  col  )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

end component_col_iterator value

const_component_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_end ( const std::size_t  component, const std::size_t  col  ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

const end component_col_iterator value

component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_end ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the first component of the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

const_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_end ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the past the end element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate

Returns

begin const_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,8);
 slip::Range<int> range(0,A1.dim1()-1,2);
//copy the first component of the elements of the column 0 of A1 iterated according to the
//range in the column 1 of A2
std::copy(A1.col_begin(0,0,range),A1.col_end(0,0,range),A2.col_begin(0,1));

reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rbegin ( const size_type  col )

inherited

Returns a read/write reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns

begin col_reverse_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

const_reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rbegin ( const size_type  col ) const

inherited

Returns a read-only reverse iterator that points to the last element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns

begin const_reverse_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rbegin ( const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin reverse_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rbegin ( const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin const_reverse_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rbegin ( const std::size_t  component, const std::size_t  col  )

inherited

Returns a read/write iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order.

Parameters

component	The component number.
col	The col within the component.

Returns

begin reverse_component_col_iterator value.

const_reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rbegin ( const std::size_t  component, const std::size_t  col  ) const

inherited

Returns a read-only (constant) iterator that points to the last element of the col col in the GenericMultiComponent2d. Iteration is done in reverse element order.

Parameters

component	The component number.
col	The col within the component.

Returns

const reverse_component_col_iterator value

reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rbegin ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the last element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin reverse_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rbegin ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read_only iterator that points to the last element of the Range & range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

begin const_reverse_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rend ( const size_type  col )

inherited

Returns a read/write reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns

end reverse_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

const_reverse_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rend ( const size_type  col ) const

inherited

Returns a read-only reverse iterator that points one past the first element of the column column in the GenericMultiComponent2d. Iteration is done modulo the number of columns and in the reverse element order.

Parameters

col	The index of the column to iterate.

Returns

end const_reverse_col_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rend ( const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

reverse_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rend ( const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

const_reverse_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rend ( const std::size_t  component, const std::size_t  col  )

inherited

Returns a read/write iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

component	The component number.
col	The col within the component.

Returns

end component_col_iterator value

const_reverse_component_col_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rend ( const std::size_t  component, const std::size_t  col  ) const

inherited

Returns a read-only (constant) iterator that points one before the first element of the col col in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
col	The col within the component.

Returns

const end component_col_iterator value

reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rend ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to one before the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

reverse_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_col_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::col_rend ( const std::size_t  component, const size_type  col, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the col col in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
col	The index of the column to iterate.
range	Range of the column to iterate.

Returns

const_reverse_component_col_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

col must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::cols ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::columns ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::dim1 ( ) const

inherited

Returns the number of rows (first dimension size) in the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::dim2 ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

bool slip::GenericMultiComponent2d< slip::Vector3d< T > >::empty ( ) const

inherited

Returns true if the GenericMultiComponent2d is empty. (Thus size() == 0)

iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::end ( )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns

end iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2 in S
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

const_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::end ( ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Returns

const end iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2 in S
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::end ( const std::size_t  component )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

end component_iterator value

const_component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::end ( const std::size_t  component ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

const end component_iterator value

void slip::GenericMultiComponent2d< slip::Vector3d< T > >::fill ( const slip::Vector3d< T > &  value )

inlineinherited

Fills the container range [begin(),begin()+size()) with copies of value.

Parameters

value

A reference-to-const of arbitrary type.

Definition at line 3050 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector3d< T > >::fill ( const typename slip::Vector3d< T > ::pointer  value )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the value array.

Parameters

value

A pointer of arbitrary type.

Definition at line 3061 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector3d< T > >::fill ( const slip::Vector3d< T > *  value )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the value array.

Parameters

value

A pointer of arbitrary type.

Definition at line 3072 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector3d< T > >::fill ( InputIterator  first, InputIterator  last  )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last)

Parameters

first	An input iterator.
last	An input iterator.

Definition at line 3086 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector3d< T > >::fill ( std::vector< InputIterator >  first_iterators_list, InputIterator  last  )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last)

Parameters

first_iterators_list	An input iterator list.
last	An input iterator.

Definition at line 3101 of file GenericMultiComponent2d.hpp.

void slip::GenericMultiComponent2d< slip::Vector3d< T > >::fill ( std::size_t  component, InputIterator  first, InputIterator  last  )

inlineinherited

Fills the container range [begin(),begin()+size()) with a copy of the range [first,last)

Parameters

component	The component number.
first	An input iterator.
last	An input iterator.

Definition at line 3133 of file GenericMultiComponent2d.hpp.

size_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::height ( ) const

inherited

Returns the height (first dimension size) in the GenericMultiComponent2d.

slip::Vector3d< T > slip::GenericMultiComponent2d< slip::Vector3d< T > >::max ( ) const

inherited

Returns the max elements of the GenericMultiComponent2d according to the operator <.

Precondition

size() != 0

size_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::max_size ( ) const

inherited

Returns the maximal size (number of elements) in the GenericMultiComponent2d.

slip::Vector3d< T > slip::GenericMultiComponent2d< slip::Vector3d< T > >::min ( ) const

inherited

Returns the min elements of the GenericMultiComponent2d according to the operator <.

Precondition

size() != 0

template<typename T >

std::string slip::DenseVector3dField2d< T >::name ( ) const

inline

Returns the name of the class.

Definition at line 994 of file DenseVector3dField2d.hpp.

reference slip::GenericMultiComponent2d< slip::Vector3d< T > >::operator() ( const size_type  i, const size_type  j  )

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read/write reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

const_reference slip::GenericMultiComponent2d< slip::Vector3d< T > >::operator() ( const size_type  i, const size_type  j  ) const

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

reference slip::GenericMultiComponent2d< slip::Vector3d< T > >::operator() ( const Point2d< size_type > &  point2d )

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

point2d

A Point2d which indicate the subscripts of the data to access.

Returns

Read/write reference to data.

Precondition

point2d must be defined in the range of the GenericMultiComponent2d.

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

const_reference slip::GenericMultiComponent2d< slip::Vector3d< T > >::operator() ( const Point2d< size_type > &  point2d ) const

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

point2d

A Point2d which indicate the subscripts of the data to access.

Returns

Read_only (constant) reference to data.

Precondition

point2d must be defined in the range of the GenericMultiComponent2d.

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

self slip::GenericMultiComponent2d< slip::Vector3d< T > >::operator() ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Subscript access to the data contained in the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Returns

a copy of the range.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator*= ( const T &  val )

inline

Definition at line 891 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator*= ( const slip::Vector3d< T > &  val )

inline

Definition at line 925 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator*= ( const self &  rhs )

inline

Definition at line 972 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator+= ( const T &  val )

inline

Add val to each element of the DenseVector3dField2d.

Parameters

val

value

Returns

reference to the resulting DenseVector3dField2d

Definition at line 875 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator+= ( const slip::Vector3d< T > &  val )

inline

Add val to each element of the DenseVector3dField2d.

Parameters

val

value

Returns

reference to the resulting DenseVector3dField2d

Definition at line 909 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator+= ( const self &  rhs )

inline

Definition at line 952 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > slip::DenseVector3dField2d< T >::operator- ( ) const

inline

Definition at line 943 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator-= ( const T &  val )

inline

Definition at line 883 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator-= ( const slip::Vector3d< T > &  val )

inline

Definition at line 917 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator-= ( const self &  rhs )

inline

Definition at line 962 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator/= ( const T &  val )

inline

Definition at line 899 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator/= ( const slip::Vector3d< T > &  val )

inline

Definition at line 933 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator/= ( const self &  rhs )

inline

Definition at line 982 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator= ( const slip::Vector3d< T > &  val )

inline

Affects all the element of the DenseVector3dField2d by val.

Parameters

val	affectation value

Returns

reference to corresponding DenseVector3dField2d

Definition at line 807 of file DenseVector3dField2d.hpp.

template<typename T >

DenseVector3dField2d< T > & slip::DenseVector3dField2d< T >::operator= ( const T &  val )

inline

Affects all the element of the DenseVector3dField2d by val.

Parameters

val	affectation value

Returns

reference to corresponding DenseVector3dField2d

Definition at line 816 of file DenseVector3dField2d.hpp.

pointer slip::GenericMultiComponent2d< slip::Vector3d< T > >::operator[] ( const size_type  i )

inherited

Subscript access to the row datas contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which data should be accessed.

Returns

Read/write pointer to the row data.

Precondition

i < rows()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

const_pointer slip::GenericMultiComponent2d< slip::Vector3d< T > >::operator[] ( const size_type  i ) const

inherited

Subscript access to the row datas contained in the GenericMultiComponent2d.

Parameters

i	The index of the row for which data should be accessed.

Returns

Read-only (constant) pointer to the row data.

Precondition

i < rows()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

reverse_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbegin ( )

inherited

Returns a read/write reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns

reverse begin iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2
//in S (iterated in the reverse order element)
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.rbegin(),
               std::plus<slip::Vector2d<double> >());

const_reverse_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbegin ( ) const

inherited

Returns a read-only (constant) reverse iterator that points to the last element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns

const reverse begin iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 (iterated in the reverse order element)
//and A2 in S
std::transform(A1.rbegin(),A1.rend(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbegin ( const std::size_t  component )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

begin reverse_component_iterator value

const_reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbegin ( const std::size_t  component ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

const begin reverse_component_iterator value

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( )

inherited

Returns a read/write reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( ) const

inherited

Returns a read only reverse iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const Box2d< int > &  box )

inherited

Returns a read/write reverse iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const Box2d< int > &  box ) const

inherited

Returns a read-only reverse iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only reverse_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const Range< int > &  range )

inherited

Returns a read/write reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const Range< int > &  range ) const

inherited

Returns a read_only reverse_iterator2d_range that points to one before the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const std::size_t  component )

inherited

Returns a read/write reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component

The component number.

Returns

reverse component iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const std::size_t  component ) const

inherited

Returns a read only reverse component iterator2d. It points to past the upper left element of the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component

The component number.

Returns

const reverse component iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const std::size_t  component, const Box2d< int > &  box  )

inherited

Returns a read/write reverse component iterator2d. It points to one before the upper left element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const std::size_t  component, const Box2d< int > &  box  ) const

inherited

Returns a read-only reverse component iterator2d. It points to one before the element of the bottom right element of the Box2d box associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rbottom_right ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only reverse_component_iterator2d_range that points to one before the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::rend ( )

inherited

Returns a read/write reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns

reverse end iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 and A2
//in S (iterated in the reverse order element)
std::transform(A1.begin(),A1.end(),
               A2.begin(),S.rbegin(),
               std::plus<slip::Vector2d<double> >());

const_reverse_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::rend ( ) const

inherited

Returns a read-only (constant) reverse iterator that points to one before the first element in the GenericMultiComponent2d. Iteration is done in reverse element order.

Returns

const reverse end iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > S(10,9);
//copy the sum of the elements of A1 (iterated in the reverse order element)
//and A2 in S
std::transform(A1.rbegin(),A1.rend(),
               A2.begin(),S.begin(),
               std::plus<slip::Vector2d<double> >());

reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::rend ( const std::size_t  component )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

end reverse_component_iterator value

const_reverse_component_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::rend ( const std::size_t  component ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component

The component number.

Returns

const end reverse_component_iterator value

void slip::GenericMultiComponent2d< slip::Vector3d< T > >::resize ( const size_type  height, const size_type  width, const slip::Vector3d< T > &  val = Block()  )

inherited

Resizes a GenericMultiComponent2d.

Parameters

height	new first dimension
width	new second dimension
val	new value for all the elements

row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_begin ( const size_type  row )

inherited

Returns a read/write iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns

begin row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the row 0 of A1 in the row 1 of A2
std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

const_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_begin ( const size_type  row ) const

inherited

Returns a read-only iterator that points to the first element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns

begin const_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the row 0 of A1 in the row 1 of A2
std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_begin ( const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

begin row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

const_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_begin ( const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

begin const_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

component_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_begin ( const std::size_t  component, const std::size_t  row  )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

begin component_row_iterator value.

const_component_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_begin ( const std::size_t  component, const std::size_t  row  ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

const begin component_row_iterator value

component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_begin ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read/write iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

begin component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the first component of the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

const_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_begin ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

begin const_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the first component of the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_end ( const size_type  row )

inherited

Returns a read/write iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns

begin row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the row 0 of A1 in the row 1 of A2
std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

const_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_end ( const size_type  row ) const

inherited

Returns a read-only iterator that points one past the end element of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

row	The index of the row to iterate.

Returns

begin const_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(10,9);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(10,9);
//copy the elements of the row 0 of A1 in the row 1 of A2
std::copy(A1.row_begin(0),A1.row_end(0),A2.row_begin(1));

row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_end ( const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

end row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

const_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_end ( const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

row	Row to iterate.
range	Range of the row to iterate

Returns

begin const_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,range),A1.row_end(0,range),A2.row_begin(1));

component_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_end ( const std::size_t  component, const std::size_t  row  )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

end component_row_iterator value

const_component_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_end ( const std::size_t  component, const std::size_t  row  ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

const end component_row_iterator value

component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_end ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read/write iterator that points one past the end element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

end component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the first component of the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

const_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_end ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read_only iterator that points one past the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in ordinary element order according to the Range.

Parameters

component	The component number.
row	Row to iterate.
range	Range of the row to iterate

Returns

begin const_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the first component of the elements of the row 0 of A1 iterated according to the
//range in the row 1 of A2
std::copy(A1.row_begin(0,0,range),A1.row_end(0,0,range),A2.row_begin(0,1));

reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rbegin ( const size_type  row )

inherited

Returns a read/write reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns

begin reverse_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

const_reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rbegin ( const size_type  row ) const

inherited

Returns a read-only reverse iterator that points to the last element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns

begin const_reverse_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rbegin ( const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

reverse_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rbegin ( const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate

Returns

begin const_reverse_row_range_iterator value

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rbegin ( const std::size_t  component, const std::size_t  row  )

inherited

Returns a read/write iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

reverse begin component_row_iterator value.

const_reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rbegin ( const std::size_t  component, const std::size_t  row  ) const

inherited

Returns a read-only (constant) iterator that points to the first element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

const reverse begin component_row_iterator value

reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rbegin ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

reverse_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rbegin ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points to the last element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate

Returns

begin const_reverse_component_row_range_iterator value

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rend ( const size_type  row )

inherited

Returns a read/write reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns

end reverse_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

const_reverse_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rend ( const size_type  row ) const

inherited

Returns a read-only reverse iterator that points one past the first element of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order.

Parameters

row	The index of the row to iterate.

Returns

end const_reverse_row_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rend ( const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

reverse_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rend ( const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

row	The index of the row to iterate.
range	Range of the row to iterate

Returns

const_reverse_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rend ( const std::size_t  component, const std::size_t  row  )

inherited

Returns a read/write iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

end reverse component_row_iterator value

const_reverse_component_row_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rend ( const std::size_t  component, const std::size_t  row  ) const

inherited

Returns a read-only (constant) iterator that points one past the last element in the GenericMultiComponent2d. Iteration is done in ordinary element order.

Parameters

component	The component number.
row	The row within the component.

Returns

const reverse end component_row_iterator value

reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rend ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  )

inherited

Returns a read-write iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate.

Returns

reverse_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

const_reverse_component_row_range_iterator slip::GenericMultiComponent2d< slip::Vector3d< T > >::row_rend ( const std::size_t  component, const size_type  row, const slip::Range< int > &  range  ) const

inherited

Returns a read-only iterator that points one before the first element of the Range range of the row row in the GenericMultiComponent2d. Iteration is done in the reverse element order according to the Range.

Parameters

component	The component number.
row	The index of the row to iterate.
range	Range of the row to iterate

Returns

const_reverse_component_row_range_iterator value

Remarks

This iterator is compatible with RandomAccessIterator algorithms.

Precondition

row must be compatible with the range of the GenericMultiComponent2d.

The range must be inside the whole range of the GenericMultiComponent2d.

size_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::rows ( ) const

inherited

Returns the number of rows (first dimension size) in the GenericMultiComponent2d.

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( )

inherited

Returns a read/write reverse iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Returns

reverse_iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( ) const

inherited

Returns a read only reverse iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Returns

const_reverse_iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const Box2d< int > &  box )

inherited

Returns a read/write reverse iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const Box2d< int > &  box ) const

inherited

Returns a read only reverse iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only reverse_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const Range< int > &  range )

inherited

Returns a read/write reverse_iterator2d_range that points to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range

The range of the rows and the cols.

Precondition

range and must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const Range< int > &  range ) const

inherited

Returns a read-only reverse_iterator2d_range that points to the to the bottom right element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols. Iteration is done in the reverse order.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const std::size_t  component )

inherited

Returns a read/write reverse component iterator2d. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Parameters

component

The component number.

Returns

reverse_component_iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const std::size_t  component ) const

inherited

Returns a read only reverse component iterator2d that points. It points to the bottom right element of the GenericMultiComponent2d. Iteration is done within the GenericMultiComponent2d in the reverse order.

Parameters

component

The component number.

Returns

const_reverse_component_iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const std::size_t  component, const Box2d< int > &  box  )

inherited

Returns a read/write reverse component iterator2d. It points to the bottom right element of the Box2d associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const std::size_t  component, const Box2d< int > &  box  ) const

inherited

Returns a read only reverse component iterator2d. It points to the bottom right element of the Box2d box associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Returns

const reverse iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write reverse component iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_reverse_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::rupper_left ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only reverse_component_iterator2d_range that points to the past the bottom right element of the ranges row_range and col_range associated to the GenericMultiComponent2d. Iteration is done in the reverse order.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_reverse_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

size_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::size ( ) const

inherited

Returns the number of elements in the GenericMultiComponent2d.

void slip::GenericMultiComponent2d< slip::Vector3d< T > >::swap ( self &  M )

inherited

Swaps data with another GenericMultiComponent2d.

Parameters

M	A GenericMultiComponent2d of the same element type

iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( )

inherited

Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the elements of A1 in A2
std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( ) const

inherited

Returns a read-only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Returns

begin const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the elements of A1 in A2
std::copy(A1.upper_left(),A1.bottom_right(),A2.upper_left());

iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const Box2d< int > &  box )

inherited

Returns a read/write iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Returns

end iterator2d value

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);
 slip::Box2d<int> box(1,1,3,2);
//copy the elements of A1 inside the box which upper_left element
//is located in (1,1) and the bottom right element is in (3,2)
std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

const_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const Box2d< int > &  box ) const

inherited

Returns a read only iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(3,2);
 slip::Box2d<int> box(1,1,3,2);
//copy the elements of A1 inside the box which upper_left element
//is located in (1,1) and the bottom right element is in (3,2)
std::copy(A1.upper_left(box),A1.bottom_right(box),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> row_range(0,A1.dim2()-1,2);
 slip::Range<int> col_range(0,A1.dim1()-1,2);
//copy the elements of A1 within the ranges row_range and col_range
//in A2
std::copy(A1.upper_left(row_range,col_range),
A1.bottom_right(row_range,col_range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> row_range(0,A1.dim2()-1,2);
 slip::Range<int> col_range(0,A1.dim1()-1,2);
//copy the elements of A1 within the ranges row_range and col_range
//in A2
std::copy(A1.upper_left(row_range,col_range),
A1.bottom_right(row_range,col_range),A2.upper_left());

iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const Range< int > &  range )

inherited

Returns a read/write iterator2d_range that points to the upper left element of the Range range associated to the GenericMultiComponent2d. The same range is applied for rows and cols.

Parameters

range

The range of the rows and the cols.

Precondition

range and must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of A1 within the range range
//in A2
std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

const_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const Range< int > &  range ) const

inherited

Returns a read-only iterator2d_range that points to the to the upper left element of the Range range associated to the GenericMultiComponent2d.

Parameters

range

The range of the rows and the cols.

Precondition

range must be valid.

The range indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Example:

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(4,4);
 slip::Range<int> range(0,A1.dim2()-1,2);
//copy the elements of A1 within the range range
//in A2
std::copy(A1.upper_left(range),A1.bottom_right(range),A2.upper_left());

component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const std::size_t  component )

inherited

Returns a read/write component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Parameters

component

The component number.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

 slip::GenericMultiComponent2d<slip::Vector2d<double> > A1(8,8);
 slip::GenericMultiComponent2d<slip::Vector2d<double> > A2(8,8);
//copy the first component of the elements of A1 in A2
std::copy(A1.upper_left(0),A1.bottom_right(0),A2.upper_left(0));

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const std::size_t  component ) const

inherited

Returns a read only const_component_iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the GenericMultiComponent2d.

Parameters

component

The component number.

Returns

begin iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const std::size_t  component, const Box2d< int > &  box  )

inherited

Returns a read/write component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	A Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Returns

end iterator2d value

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

const_component_iterator2d slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const std::size_t  component, const Box2d< int > &  box  ) const

inherited

Returns a read only component iterator2d that points to the first element of the GenericMultiComponent2d. It points to the upper left element of the Box2d associated to the GenericMultiComponent2d.

Parameters

component	The component number.
box	a Box2d defining the range of indices to iterate within the GenericMultiComponent2d.

Returns

end const iterator2d value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

Precondition

The box indices must be inside the range of the GenericMultiComponent2d ones.

component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  )

inherited

Returns a read/write component iterator2d_range that points to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

const_component_iterator2d_range slip::GenericMultiComponent2d< slip::Vector3d< T > >::upper_left ( const std::size_t  component, const Range< int > &  row_range, const Range< int > &  col_range  ) const

inherited

Returns a read-only component iterator2d_range that points to the to the upper left element of the ranges row_range and col_range associated to the GenericMultiComponent2d.

Parameters

component	The component number.
row_range	The range of the rows.
col_range	The range of the columns.

Precondition

row_range and col_range must be valid.

The ranges indices must be inside the ranges of the GenericMultiComponent2d ones.

Returns

const_iterator2d_range value

Remarks

This iterator is compatible with BidirectionalIterator algorithms.

template<typename T >

T & slip::DenseVector3dField2d< T >::Vx1 ( const size_type  i, const size_type  j  )

inline

Subscript access to first element of the data contained in the DenseVector3dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read/write reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 825 of file DenseVector3dField2d.hpp.

template<typename T >

const T & slip::DenseVector3dField2d< T >::Vx1 ( const size_type  i, const size_type  j  ) const

inline

Subscript access to the data contained in the DenseVector3dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 833 of file DenseVector3dField2d.hpp.

template<typename T >

T & slip::DenseVector3dField2d< T >::Vx2 ( const size_type  i, const size_type  j  )

inline

Subscript access to second element of the data contained in the DenseVector3dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read/write reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 841 of file DenseVector3dField2d.hpp.

template<typename T >

const T & slip::DenseVector3dField2d< T >::Vx2 ( const size_type  i, const size_type  j  ) const

inline

Subscript access to the data contained in the DenseVector3dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 850 of file DenseVector3dField2d.hpp.

template<typename T >

T & slip::DenseVector3dField2d< T >::Vx3 ( const size_type  i, const size_type  j  )

inline

Subscript access to third element of the data contained in the DenseVector3dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read/write reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 859 of file DenseVector3dField2d.hpp.

template<typename T >

const T & slip::DenseVector3dField2d< T >::Vx3 ( const size_type  i, const size_type  j  ) const

inline

Subscript access to the data contained in the DenseVector3dField2d.

Parameters

i	The index of the row for which the data should be accessed.
j	The index of the columns for which the data should be accessed.

Returns

Read_only (constant) reference to data.

Precondition

i < rows()

j < columns()

This operator allows for easy, 2d array-style, data access. Note that data access with this operator is unchecked and out_of_range lookups are not defined.

Definition at line 867 of file DenseVector3dField2d.hpp.

size_type slip::GenericMultiComponent2d< slip::Vector3d< T > >::width ( ) const

inherited

Returns the number of columns (second dimension size) in the GenericMultiComponent2d.

template<typename T >

void slip::DenseVector3dField2d< T >::write_gnuplot ( const std::string &  file_path_name )

inline

Writes a DenseVector3dField2d to a gnuplot file path name.

Parameters

file_path_name

The data format is the following : x y Vx Vy Vz

Definition at line 998 of file DenseVector3dField2d.hpp.

template<typename T >

void slip::DenseVector3dField2d< T >::write_tecplot ( const std::string &  file_path_name, const std::string &  title, const std::string &  zone  )

inline

Writes a DenseVector3dField2d to a tecplot file path name.

Parameters

file_path_name
title
zone	The data format is the following : TITLE= title VARIABLES= X Y U V W ZONE T= zone, I= dim1(), J= << dim2() x y Vx Vy Vz

Definition at line 1024 of file DenseVector3dField2d.hpp.

Friends And Related Function Documentation

template<typename T>

friend class boost::serialization::access

friend

Definition at line 542 of file DenseVector3dField2d.hpp.

Member Data Documentation

const std::size_t slip::GenericMultiComponent2d< slip::Vector3d< T > >::COMPONENTS

staticinherited

Definition at line 284 of file GenericMultiComponent2d.hpp.

template<typename T>

const std::size_t slip::DenseVector3dField2d< T >::DIM = 2

static

Definition at line 184 of file DenseVector3dField2d.hpp.

---

The documentation for this class was generated from the following file:

• src/Container/DenseVector3dField2d.hpp
