Iterations through 2d containers

Introduction

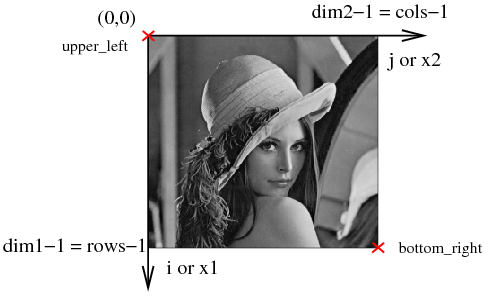

Here, we present various ways to computes the mean of a 2d container denoted S2d. It illustrates the different uses to iterate through bidimensional containers 2d Containers like slip::block2d, slip::Array2d, slip::Matrix, slip::GrayscaleImage and multicomponent bidimensional containers Multi-component 2d Containers like: slip::ColorImage, slip::MultispectralImage... Here are the axis conventions used in the library:

The classical loop

slip::Array2d<double> S2d(4,5);
double mean = 0.0;
const std::size_t rows = S2d.rows();
const std::size_t cols = S2d.cols();
for(std::size_t i = 0; i < rows; ++i)
{
               for(std::size_t j = 0; j < cols; ++j)
               {
                 mean += S2d[i][j]; //or equivalently: mean += S2d(i,j);
               }
}
mean = mean / double(S2d.size());

1d iterators

These iterators follow the RandomAccessIterator concept of the standard library.

Direct global 1d iterator

slip::Array2d<double> S2d(4,5);
double m = slip::mean<double>(S2d.begin(),S2d.end());

Reverse global 1d iterator

slip::Array2d<double> S2d(4,5);
double m = slip::mean<double>(S2d.rbegin(),S2d.rend());

Row iterators

Direct row iterator

slip::Array2d<double> S2d(4,5);
double m = slip::mean<double>(S2d.row_begin(i),S2d.row_end(i));

Reverse row iterator

slip::Array2d<double> S2d(4,5);
double m = slip::mean<double>(S2d.row_rbegin(i),S2d.row_rend(i));

Direct row range iterator

slip::Array2d<double> S2d(4,5);
slip::Range<int> range_rows(1,3,2);
double m = slip::mean<double>(S2d.row_begin(i,range_rows),S2d.row_end(i,range_rows));

Reverse row range iterator

slip::Array2d<double> S2d(4,5);
slip::Range<int> range_rows(1,3,2);
double m = slip::mean<double>(S2d.row_rbegin(i,range_rows),S2d.row_rend(i,range_rows));

Column iterators

Direct col iterator

slip::Array2d<double> S2d(4,5);
double m = slip::mean<double>(S2d.col_begin(i),S2d.col_end(i));

Reverse column iterator

slip::Array2d<double> S2d(4,5);
double m = slip::mean<double>(S2d.col_rbegin(i),S2d.col_rend(i));

Direct column range iterator

slip::Array2d<double> S2d(4,5);
slip::Range<int> range_cols(1,3,2);
double m = slip::mean<double>(S2d.col_begin(i,range_cols),S2d.col_end(i,range_cols));

Reverse column range iterator

slip::Array2d<double> S2d(4,5);
slip::Range<int> range_cols(1,3,2);
double m = slip::mean<double>(S2d.col_rbegin(i,range_cols),S2d.col_rend(i,range_cols));

2d iterators

Box iterators

These iterators follow the BidirectionalIterator concept of the standard library. Specific bidimensional iterator that store the i (x1) and j (x2) positions of the iterator within the container. These coordinates are accessible by the method i() (x1())and j() (x2()). These iterators are less fast than RandomAccessIterator because they verify that the iteration stay within the defined box. See the internal classes slip::iterator2d_box and slip::const_iterator2d_box for more details.

slip::Array2d<double> S2d(4,5);
double m = slip::mean<double>(S2d.upper_left(),S2d.bottom_right());

slip::Array2d<double> S2d(4,5);
slip::Box2d<int> box(1,1,2,3);
double m = slip::mean<double>(S2d.upper_left(box),S2d.bottom_right(box));

slip::Array2d<double> S2d(4,5);
slip::Box2d<int> box(1,1,2,3);
double m = slip::mean<double>(S2d.rupper_left(box),S2d.rbottom_right(box));

Range iterators

These iterators follow the BidirectionalIterator concept of the standard library. Specific bidimensional iterator that store the i (x1) and j (x2) positions of the iterator within the container. These coordinates are accessible by the method i() (x1())and j() (x2()). These iterators are less fast than RandomAccessIterator because they verify that the iteration stay within the defined ranges. See the internal classes slip::iterator2d_range and slip::const_iterator2d_range for more details.

slip::Array2d<double> S2d(4,5);
slip::Range<int> range_rows(0,2,2);
slip::Range<int> range_cols(0,2,2);
double m = slip::mean<double>(S2d.upper_left(range_rows,range_cols),
                              S2d.bottom_right(range_rows,range_cols));

slip::Array2d<double> S2d(4,5);
slip::Range<int> range_rows(0,2,2);
slip::Range<int> range_cols(0,2,2);
double m = slip::mean<double>(S2d.rupper_left(range_rows,range_cols),
                              S2d.rbottom_right(range_rows,range_cols));

Multi-component iterators

To iterate through a specific component of a multi-component container. It suffies to add first the number of the component to all the previous iterator methods. See slip::GenericMultiComponent2d interface for a more detailed description. As an example, we give here the iteration through a row of a specific component:

const std::size_t component = 1;
const std::size_t row = 1;
double m = slip::mean<double>(S2d.row_begin(component,row),S2d.row_end(component,row));

const std::size_t component = 1;
const std::size_t row = 1;
double m = slip::mean<double>(S2d.row_rbegin(component,row),S2d.row_rend(component,row));
